642 078 00 01
2007-2009 Sprinter 3.0 V6 Diesel Fuel Hose Kit
*** This Kit is VIN Specific *** - Email us with your VIN for parts verification.
REQUIRES SIX 13MM AND SIX 15MM HOSE CLAMPS, SHOWN BELOW.
All the six small fuel hoses in and around the engine compartment, labeled A thru F on our site. All are Genuine Mercedes parts.
The fuel return hose assembly (H) and drain/purge line (G) are NOT included. You can see these two hoses below, along with the special hose clamps for fuel hoses.
|
|
|
|
|
642 078 01 01
2010+ Sprinter 3.0 V6 Diesel Fuel Hose Kit
*** This Kit is VIN Specific *** - Email us with your VIN for parts verification.
All the six small fuel hoses in and around the engine compartment, labeled A thru F on our site. All are Genuine Mercedes parts.
Requires 12 fuel hose clamps: 6 x 21013 & 6 x 21015, shown below.
|
|
|
|
|
642 092 01 01-HENGST
Diesel Fuel Filter - HENGST H278WK (OEM) 2004-2009
Two O-ring seals are included with the filter, which are to be used on the moisture sensor in the center of the filter element.
These are for 2004 to 2009 model years only - Not for 2002-2003 or any Sprinter engines 2010 and later.
If you are planning on removing and replacing the original "Clic" style fuel hose clamps on top of the filter, you will need 1 x 13 mm clamp and 1 x 15mm clamp, see below.
|
|
|
|
|
642 070 12 38
Fuel Filter Purge Hose (3 Pin Moisture Sensor) 3.0L V6 2010-2012
This hose connects to the moisture sensor on top of fuel filter and is the only one furnished with a metal bracket. Bleed screw is at the opposite end.
NOTE: This hose is used on those models which have the type of fuel filter with the removable 3-pin moisture sensor from 2010 to 2012
DO NOT ORDER THIS IF YOU HAVE A FUEL FILTER WITH THE NON-REMOVABLE 5-PIN MOISTURE SENSOR.
See the other version of this hose below
|
|
|
|
|
642 070 24 38
Fuel Filter Purge Hose (5 Pin Moisture Sensor) 3.0L V6 2010-2018
Hose to top of fuel filter. Snaps onto the small nipple at the top on the side. This hose has a bleed screw on the end for purging accumulated water at the bottom of the fuel filter.
This hose supersedes old part 642 070 20 38, which has been discontinued by Mercedes.
NOTE: This hose is only used in conjunction with the new BlueTec engine fuel filters with the non-removable 5-pin moisture sensor.
See the other version of this hose below.
|
|
|
|
|
642 070 00 38
Fuel Filter Purge Hose 3.0L V6 2007-2009
This hose connects to the moisture sensor on top of fuel filter. Bleed screw is at the opposite end.
DO NOT ORDER THIS HOSE IF YOU HAVE A 2010 OR LATER MODEL WITH A BLUETEC ENGINE. THERE ARE TWO DIFFERENT FUEL FILTER PURGE HOSES FOR 2010 AND BOTH ARE SHOWN BELOW.
|
|
|
|
|
651 070 04 00
Fuel Hose 2014-2016 2.1L 4CYL
Fuel hose
|
|
|
|
|
642 070 04 81
Fuel Hose A 3.0 V6 2007-2009Hose uses 2 x 13 mm clamps
|
|
|
|
|
642 070 57 81
Fuel Hose A 3.0L V6 2010 & LATER
REQUIRES TWO 13MM CLAMPS.
Fuel filter to high pressure injection pump. |
|
|
|
|
642 070 05 81
Fuel Hose B 3.0 V6 2007-2009Hose from output side of fuel filter to high pressure injection pump
Hose uses 13mm clamps
|
|
|
|
|
642 070 36 81
Fuel Hose B 3.0L V6 2010 & LATER
Only for 3.0L V6 Diesel
REQUIRES TWO 13MM CLAMPS.
|
|
|
|
|
642 078 19 81
Fuel Hose C 3.0L V6 2007-2009
One of two hoses that connect the fuel pipe sections together
Hose use 15 mm clamps
|
|
|
|
|
642 078 45 81
Fuel Hose C 3.0L V6 2010 & LATER
Only for 3.0L V6 Diesel - Fuel filter to separator
REQUIRES TWO 15MM CLAMPS.
|
|
|
|
|
642 078 13 81
Fuel Hose D 3.0L V6 2007 & LATER
Only for 3.0L V6 Diesel BlueTec
REQUIRES TWO 15MM CLAMPS.
|
|
|
|
|
642 078 21 81
Fuel Hose D 3.0L V6 2007-2009
Short, straight 50mm (2 inch) section
13mm clamp on each end
|
|
|
|
|
642 078 23 81
Fuel Hose E 3.0L V6 2007-2009Feed hose from metal pipe to input side of fuel filter
Hose uses 2 x 15 mm clamps
|
|
|
|
|
642 078 32 81
Fuel Hose E 3.0L V6 2010 & LATER
Only for 3.0L V6 Diesel BlueTec
REQUIRES TWO 15MM CLAMPS.
PART # ON HOSE IS 642 078 32 81
|
|
|
|
|
642 078 25 81
Fuel Hose F 3.0L V6 2007-2009
Hose uses 2 x 15 mm clamps
|
|
|
|
|
651 070 17 81
Fuel Hose-HP Pump to Fuel line 2014-2016 2.1L 4 CYLFuel hose from high pressure pump to fuel line
|
|
|
|
|
21013
Fuel Injection Hose Clamp 13mm 2002 & LATER
Clamping Range 12.5 - 14mm
These are special fuel hose clamps with rolled edges and no open serrations so the clamp will not cut into the hose.
If you are replacing all of the original Mercedes factory "Clic" style clamps on a ......
2002-2003 Sprinter...................... Order 4 x 13mm clamps
2004-2006 Sprinter...................... Order 9 x 13mm clamps & 1 x 15mm clamp
2007-2009 Sprinter...................... Order 6 x 13mm clamps & 6 x 15mm clamps
|
|
|
|
|
21015
Fuel Injection Hose Clamp 15mm 2002 & LATER
Clamping Range 13.5 - 15.5mm
These are special fuel hose clamps with rolled edges and no open serrations so the clamp will not cut into the hose.
If you are replacing all of the original Mercedes factory "Clic" style clamps on a ......
2002-2003 Sprinter........... Order 4 x 13mm clamps
2004-2006 Sprinter........... Order 9 x 13mm clamps & 1 x 15mm clamp
2007-2009 Sprinter........... Order 6 x 13mm clamps & 6 x 15mm clamps
|
|
|
|
|
21017
Fuel Injection Hose Clamp 17mm 2002 & LATERClamping Range 16-18 mm
These are special fuel hose clamps with rolled edges and no open serrations so, the clamp will not cut into the hose
If you are replacing replacing all of the original Mercedes factory "Clic" style clamps on a ......
2002-2003 Sprinter........................order 4 x 13mm clamps
2004-2006 Sprinter........................order 9 x 13mm clamps & 1 x 15mm clamp
2007-2009 Sprinter........................order 6 x 13mm clamps & 6 x 15mm clamps
|
|
|
|
|
601 997 03 45
Fuel Line Seal Ring 2002-2003 & 2007-2009
O-ring used at both ends of the white plastic fuel lines on the OM612 5 CYL engine.
Also used on 2007-2009 3.0 V6 on end of fuel purge hose where it enters the fuel filter.
Do not order these seal rings if you are ordering new hoses, as the hoses are furnished with the seals already in place.
|
|
|
|
|
000 997 26 63
Fuel Purge Hose Coupling / Screw 2007 & LATER
Threads into the top of fuel filter moisture sensor for 2007 and later 3.0L V6 engines.
Used for attaching the fuel purge hose to the moisture sensor.
|
|
|
|
|
001 991 58 70
Fuel Return Line Retainer Clip 2002 & LATER
Located at top of each injector
|
|
|
|
|
901 476 00 26
Fuel Tank Filler Coupler 2002-2006
Connects the filler tube to the fuel tank.
|
|
|
|
|
901 470 13 20
Fuel Tank Filler Neck 2002-2006
Approximately 500mm long (20 inches) |
|
|
|
|
642 092 01 01-MB
Genuine Mercedes - Diesel Fuel Filter 2004-2009
Two O-ring seals are included with the filter, which are to be used on the moisture sensor in the center of the filter element.
These are for 2004 to 2009 model years only - Not for 2002-2003 or any Sprinter engines 2010 and later.
|
|
|
|
|

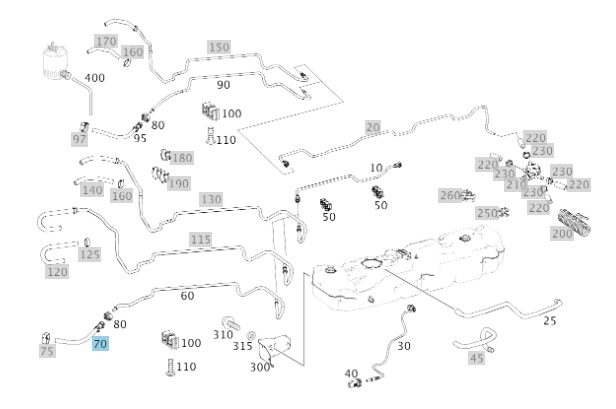

906 470 10 64
Genuine Mercedes - Fuel Tank Hose Feed
|
|
|
|
|
906 470 11 64
Genuine Mercedes - Fuel Tank Hose Return
|
|
|
|
|
006 997 18 90
Hose Clamp - Feed Line 2002 & LATER
Clamping Range 13-14.5mm
These are special hose clamps manufactured by Mercedes.
|
|
|
|
|
611 078 00 71
Water/Fuel Bleed Screw 2002-2018
Located in side of fuel filter, at bottom of canister on 2002-2003 models.
Located on top of fuel filter moisture sensor for 2004-2006 models. (2007-2009 V6 diesels use a different coupling on top, see below)
Located on fuel hose and fuel filter for 2007 and later models
Used for bleeding any water and /or air from fuel filter and fuel system.
|
|
|
