906 528 37 82-AFT
Charge Air Hose - Intercooler to Engine 2.1L 4Cyl 2014-2016Located after the intercooler, on left side of vehicle
|
|
|
|
|
906 528 37 82-MB
Charge Air Hose - Intercooler to Engine 2.1L 4Cyl 2014-2016 Genuine Mercedes
Located after the intercooler, on left side of vehicle
Genuine Mercedes part. |
|
|
|
|
906 528 26 82-AFT
Charge Air Hose - Intercooler to Engine 3.0L V6 Diesel 2010 & LATER
Located on the Passenger's side of the engine - This is the shorter of the two charge-air hoses. Seal rings are provided with hose.
This hose will fit all NCV3 model years and early VS30 models. IF you are ordering for a 2019 & Later models, carefully check the current intercooler and intercooler hose that you have to order the correct hose. This hose fits the passenger side for 2019 & Later models with the 907 501 17 00 Intercooler, which can be found here.
If you still do not know which hose you need, email us your VIN number for verification.
|
|
|
|
|
906 528 22 82-AFT
Charge Air Hose - Turbocharger to Intercooler 3.0L V6 Diesel 2007-2009
Located on driver's side of engine. This hose is the longer one of the two charge air hoses. Seal ring and hose clamp are provided with this hose.
This is the newer and longer, upgraded hose, which supersedes 68013652AA
See the other related hose for the opposite side of the intercooler, shown below.
These hoses are also available as a set of two, for both sides, with Free USA Shipping. |
|
|
|
|
906 528 25 82-AFT
Charge Air Hose - Turbocharger to Intercooler 3.0L V6 Diesel 2010 & LATER
This hose is located on Driver's side.
Fits both the 2007-2018 NCV3 and the 2019-2022 V6 with the OM642 engine configuration.
This hose is also available as a Kit of two, for both sides with Free USA Shipping, see below. |
|
|
|
|
906 528 25 82-VAICO
Charge Air Hose - Turbocharger to Intercooler 3.0L V6 Diesel 2010 & LATER
This hose is located on Driver's side.
Fits both the 2007-2018 NCV3 and the 2019-2022 V6 with the OM642 engine configuration.
This hose is also available as a Kit of two, for both sides with Free USA Shipping, see below. |
|
|
|
|
906 528 50 82-AFT
Charge Air Hose TYPE A - Turbocharger to Intercooler 2.1L 4Cyl 2014-2016
This is an AFTERMARKET HOSE. We also offer the Genuine Mercedes part here.
Orange/Red color hose, located on right side of vehicle, before the intercooler.
There are two versions of this hose, depending upon the type of air conditioning your vehicle is equipped with.
This is the longer version of the two different hoses.
|
|
|
|
|
906 528 50 82-MB
Charge Air Hose TYPE A-Turbocharger to Intercooler 2.1L 4CYL - Genuine Mercedes 2014-2016
Orange/Red color hose, located on right side of vehicle, before the intercooler.
There are two versions of this hose, depending upon the type of air conditioning your vehicle is equipped with.
This is the longer version of the two different hoses.
THIS HOSE IS ONLY FOR THOSE MODELS WITH STANDARD AIR CONDITIONING, WHICH HAS A SINGLE COMPRESSOR.
THE OTHER VERSION FOR DUAL A/C COMPRESSORS (ROOF MOUNTED A/C), IS SHOWN BELOW.
|
|
|
|
|
906 528 51 82
Charge Air Hose TYPE B - Turbocharger to Intercooler 2.1L 4 Cyl 2014-2016
Orange/Red color hose, located on right side of vehicle, before the intercooler.
There are two versions of this hose, depending upon the type of air conditioning your vehicle is equipped with. This is the shorter version of the two different hoses.
|
|
|
|
|
906 528 03 82-AFT
Charge Air Hose-Intercooler to Engine 3.0L V6 Diesel 2007-2009
This hose is the shorter of the two charge air hoses and runs from the intercooler to the engine. Seal ring and hose clamp are provided with hose.
Located on passenger side of engine.
Manufactured by Rein Automotive, a division of Continental (CRP)
See the other related hose for the opposite side of the intercooler, shown below.
Not for BlueTec engines 2010 and later
|
|
|
|
|
642 090 59 37
Charge Air Intake Pipe 3.0L V6 2007 & LATER
Charge air intake line, upper end of this pipe joins the output side of the turbo resonator.
|
|
|
|
|
642 098 10 39
Charge Air Line Bracket #1 - 3.0L V6 Diesel 2007 & LATER
Flat metal bracket with two holes.
|
|
|
|
|
642 098 04 39
Charge Air Line Bracket #3 3.0L V6 Diesel 2007 & LATER
Bracket from turbo resonator to the aluminum charge air pipe.
This is the large, U-shaped steel bracket with a single bolt hole.
|
|
|
|
|
642 096 15 45
Charge Air Line Bracket #4 3.0L V6 Diesel 2007 & LATER
Bracket at aluminum charge air pipe.
There are numerous brackets on the 3.0L V6 engine and they possibly may have changed after 2010. |
|
|
|
|
642 016 03 38
Charge Air Line Bracket #5 3.0L V6 Diesel 2007 & LATER
There are numerous brackets and possibly changed after 2010.
It's suggested you get a part# off the old bracket or carefully compare to the picture before ordering.
The part # for this is 642 016 03 38 |
|
|
|
|
642 016 03 30
Crankcase Vent Valve Heating Element 2004 & LATER
Located as part of the Oil Separator assembly - The red / orange grommet is furnished with the unit.
This is a small but, critical component, as it is important to not have the
crankcase vapors freeze (water vapor is present).
Oil and water
emulsification forms when vapors come in contact with cooler temperatures, freeze and ice crystals can then easily erode the turbocharger intake blades. Sounds very strange but it is true.
.
|
|
|
|
|
000 090 37 51-MB
Engine Air Filter - 2007-2022 Genuine Mercedes
Genuine Mercedes Engine Air Filter.
For all Sprinter engine types 2007-2022 (Both 4 CYL and V6 Diesel engines).
Will not fit 2.0 4CYL OM654 gas engine (2023+)
|
|
|
|
|
000 090 37 51-HENGST
Engine Air Filter - HENGST E821L (OEM) 2007-2022
Manufactured by Hengst, a German OEM supplier for Mercedes.
For all Sprinter engine types 2007-2022 (Both 4 CYL and V6 Diesel engines).
Will not fit 2.0 4CYL OM654 gas engine (2023+)
|
|
|
|
|
000 090 37 51-MANN
Engine Air Filter 2007-2022 MANN C4312/1
Manufactured by MANN, the OEM Supplier to Mercedes for this part.
For all Sprinter engine types 2007-2022 (Both 4 CYL and V6 Diesel engines).
Will not fit 2.0 4CYL OM654 gas engine (2023+)
|
|
|
|
|
906 528 03 00
Engine Air Filter Housing 2007-2018 3.0L V6 Diesel
Only for OM642 3.0L V6 Diesel
|
|
|
|
|
906 528 01 00
Engine Air Filter Housing 2014-2016 4 CYL Diesel
Only for OM651
2.1 Liter - 4 Cylinder diesel |
|
|
|
|
906 528 03 82-MB
Genuine Mercedes - Charge Air Hose-Intercooler to Engine 3.0L V6 Diesel 2007-2009
This hose is the shorter of the two charge air hoses and runs from the intercooler to the engine. Seal ring and hose clamp are provided with hose.
Located on passenger side of engine.
|
|
|
|
|
906 528 26 82-MB
Genuine Mercedes - Charge Air Hose-Intercooler to Engine3.0L V6 Diesel 2010 & LATER
Located on the Passenger's side of the engine - This is the shorter of the two charge air hoses. Seal rings are provided with hose.
This hose will fit all NCV3 model years and early VS30 models. IF you are ordering for a 2019 & Later models, carefully check the current intercooler and intercooler hose that you have to order the correct hose. This hose fits the passenger side for 2019 & Later models with the 907 501 17 00 Intercooler, which can be found here.
If you still do not know which hose you need, email us your VIN number for verification. |
|
|
|
|
906 528 22 82-MB
Genuine Mercedes - Charge Air Hose-Turbocharger to Intercooler 3.0L V6 Diesel 2007-2009
This hose is the longer one of the two charge air hoses. Seal ring and hose clamp are provided with this hose.
|
|
|
|
|
906 528 25 82-MB
Genuine Mercedes - Charge Air Hose-Turbocharger to Intercooler 3.0L V6 Diesel 2010 & LATER
This Genuine Mercedes hose is located on Driver's side.
This hose fits both the 2007-2018 NCV3 and the 2019-2022 V6 with the OM642 engine configuration.
To see the other related hose for the opposite side of the intercooler, CLICK HERE.
This hose is also available as a set of two, for both sides, see below. Free USA shipping on the two hose kit. |
|
|
|
|
005 153 50 28
Intake Air Pressure Sensor - All Diesel 2002 & LATER
Located on the air filter housing/canister.
Used in all 5 Cylinder Diesels, 3.0L V6 Diesels and 2.1L 4 Cylinder Diesels.
|
|
|
|
|
651 153 00 28
Intake Air Temperature Sensor 2002 & LATER
This is a relatively common failure item, which can cause the engine to go into limp mode.
This sensor is often oil soaked from vapors in the charged air stream. This is caused by oil leakage from the turbocharger shaft seals.
Carrying a spare sensor is suggested, as they are inexpensive and always seem to fail in the middle of nowhere.
|
|
|
|
|
642 098 00 37
Intake Pipe Socket 3.0L V6 DIESEL - 2007 & LATER
Furnished with both o-rings, which are not available as a separate item.
|
|
|
|
|
010 153 72 28
MAP Sensor (Boost Pressure) 2.1L 2014-2016Manifold Absolute Pressure (MAP) sensor - aka Boost Pressure Sensor
2014-2016 2.1L 4 Cylinder
|
|
|
|
|
006 153 99 28
MAP Sensor (Boost Pressure) 2004 & LATER
2004-2018 2.7L I-5 and 3.0L V6 Diesel engine
Manifold Absolute Pressure (MAP) sensor
aka Boost Pressure Sensor
|
|
|
|
|
651 090 01 48-MB
Mass Air Flow Sensor 2.1L 4 Cyl Diesel Engine 2014- EARLY 2015
THERE ARE TWO POSSIBLE MASS AIR FLOW SENSORS FOR THIS 4 CYLINDER ENGINE.
CONFIRM YOUR CHASSIS NUMBER PRIOR TO ORDERING
OM 651 2.1L engine (aka MAF Sensor)
From beginning of production 2014 thru chassis # E 108605 (thru 03/05/15)
From beginning of production 2014 thru chassis # S 996636 (thru 11/28/14)
Not for any engine, other than the 4 cylinder
|
|
|
|
|
651 090 01 48-BREMI
Mass Air Flow Sensor 2.1L 4 Cyl Diesel Engine 2014- EARLY 2015
THERE ARE TWO POSSIBLE MASS AIR FLOW SENSORS FOR THIS 4 CYLINDER ENGINE.
CONFIRM YOUR CHASSIS NUMBER PRIOR TO ORDERING
OM 651 2.1L engine (aka MAF Sensor)
From beginning of production 2014 thru chassis # E 108605 (thru 03/05/15)
From beginning of production 2014 thru chassis |
|
|
|
|
651 090 01 48-DELPHI
Mass Air Flow Sensor 2.1L 4 Cyl Diesel Engine 2014- EARLY 2015
THERE ARE TWO POSSIBLE MASS AIR FLOW SENSORS FOR THIS 4 CYLINDER ENGINE.
CONFIRM YOUR CHASSIS NUMBER PRIOR TO ORDERING
OM 651 2.1L engine
aka MAF Sensor
|
|
|
|
|
651 905 05 00
Mass Air Flow Sensor 2.1L 4 Cyl LATE 2014-2016
THERE ARE TWO POSSIBLE MASS AIR FLOW SENSORS FOR THIS 4 CYLINDER ENGINE.
CONFIRM YOUR CHASSIS NUMBER PRIOR TO ORDERING
From chassis # E 108606 (From 03/06/15 to end of production 2016)
From chassis # S 996637 (From 11/29/14 to end of production 2016)
OM 651 2.1L engine
|
|
|
|
|
000 094 32 48
Mass Air Flow Sensor 2004-2009
OM 647 2.7L 5 Cyl engine 2004-2006
OM 642 3.0L V6 engine 2007-2009
This part is also known as the MAF Sensor, Air Mass Sensor, Air Mass Meter, etc.
Not for 2010 and later BlueTec engines. The 2010 and later MAF sensor can be seen below.
|
|
|
|
|
000 094 34 48
Mass Air Flow Sensor 3.0L V6 Diesel 2010 & LATER
Only for OM 642 BlueTec Diesel Engine
Also known as MAF Sensor
Not for 2009 and earlier engines. The earlier MAF sensor can be seen below.
|
|
|
|
|
273 094 09 48
Mass Air Flow Sensor-Gasoline Engine 2007-2008Only for M 272 gas engine, used only for two years 2007-2008.
aka MAF Sensor |
|
|
|
|
009 153 34 28
Pressure Gauge Converter 2010-2018For boost pressure in charge-air cross-over pipe
|
|
|
|
|
651 090 04 70
Throttle Body 2.1L 4 CYL 2014-2016
Complete original unit for all 2.1L 4 CYL diesel engines.
|
|
|
|
|
642 090 02 70
Throttle Body 3.0L V6 Diesel 2007 & LATER
Complete original unit for all 3.0L V6 diesel engines.
This is the identical brand new Bosch unit as sold at a franchise dealership.
This fits both standard and BlueTec models throughout the entire range of production.
|
|
|
|
|
642 090 03 44
Throttle Body Flange 3.0L V6 Diesel 2007-2018
Black plastic flange that attaches to the throttle body.
|
|
|
|
|

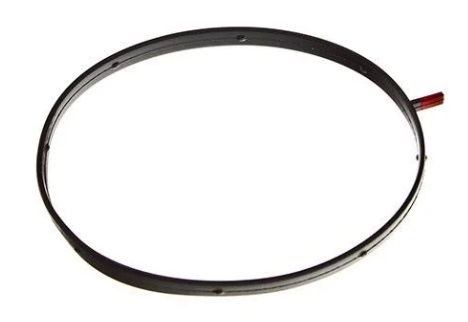

651 091 04 60 64
Throttle Body Gasket 2.1L 4 CYL Diesel 2014-2016
Only for 2.1L 4 CYL diesel engines.
|
|
|
|
|
642 141 01 80
Throttle Body Seal Ring 2007 & LATER 3.0L V6 DieselLocated between throttle body and throttle body flange
|
|
|
|
|
642 098 08 80
Throttle Body to Transverse Charge Air Pipe Gasket 2007 & LATERLocated between Throttle body and cross-over pipe
|
|
|
|
|
642 016 10 38
Turbo Resonator Bracket 3.0L V6 Diesel 2007 & LATERAluminum bracket that bolts directly to the turbo resonator.
There are numerous brackets and they possibly changed after 2010. It's suggested you get a part# off the old bracket or carefully compare to the picture before ordering.
The part# for this is 642 016 10 38. |
|
|
|
|
906 528 22 24
Turbocharger Intake Hose / Duct 3.0 V6 Diesel 2007 & LATER
Links the air filter housing and MAF (mass air flow) sensor to the turbocharger intake, directly in the center of the aluminum turbo housing.
The black seal ring at the turbocharger end is furnished with this hose.
If your old hose has the orange seal ring at the end, this hose will replace it.
This pipe/hose replaces both 906 528 02 24 and 906 528 15 24.
|
|
|
|
|
906 528 02 24
Turbocharger Intake Hose / Duct 3.0 V6 Diesel 2007-2009
Links the air filter housing and MAF (mass air flow) sensor to the turbocharger intake.
The orange seal at the turbocharger end is furnished with this hose.
|
|
|
|
|
651 090 00 05
Vacuum Pump 2.1L 4CYL Diesel 2014-2016
Mounted to the cylinder head
|
|
|
|
|
642 230 00 65
Vacuum Pump 2007 & LATER 3.0L V6 Diesel
Mounted to cylinder head. This pump is manufactured by Pierburg, the original supplier to Mercedes.
For gasket between pump and engine, see below
|
|
|
|
|
272 230 00 65
Vacuum Pump 2007-2008 3.5L Gas Engine Gas EngineFor M272 3.5L Gas engine
Fits 2007-2008 models only.
This is a new, original OEM part. Includes o-ring seal. |
|
|
|
|
642 016 02 80
Vacuum Pump Gasket 2007 & LATER
For 3.0L V6 vacuum pump, See Below.
|
|
|
