005 153 13 28
Camshaft Position Sensor 2002 & LATER
3 pin connector, O ring seal included.
5 Cylinder Engines: Located on top of the cam cover (back end of cover) and under the black plastic cosmetic cover that sits on top of the cam cover.
Latest revision of this part, Manufactured by VNE
Automotive, the OEM supplier to Mercedes.
|
|
|
|
|

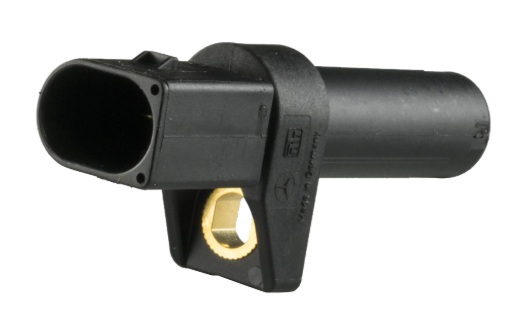

003 153 28 28
Crankshaft Position Sensor 2002-2006
aka Reference Mark Sensor - 2 flat pins/spade connectors located inside recessed plug.
When this part fails, it causes a "No start" condition, generally when the engine is hot. It may work again when the engine is cold but, will again fail at operating temperature.
Manufactured in Germany by VNE Automotive, the OEM supplier to Mercedes. VNE is a lesser known manufacturer than the bigger electronics suppliers, such as Bosch and Hella. However, Mercedes has chosen them as a principal supplier.
|
|
|
|
|
007 153 43 28
Exhaust Back Pressure Sensor / Low Fuel Pressure Sensor 2002-2003 & 2007 & LATER 3.0L V6
Located adjacent to EGR cooler on the 3.0L V6 models
Located on
left side of engine block on 2002-2003 5 CYL models (known as a low fuel pressure sensor)
Female plug, three contact pins inside plug housing.
Same Part Number as: 009 153 50 28 |
|
|
|
|
005 153 23 28
Fuel & Oil Temperature Sender 2002 & LATER2 contact pins, straight electrical connector.
Located on the injection pump on front of engine block on the 2.7L 5 CYL diesel engines.
Located near oil pan for the 3.0L V6 diesel engines.
|
|
|
|
|
000 153 95 13
Fuel Moisture Sensor 2004-2009
Located on top of fuel filter on 2004-2009 models
Three electrical contact pins inside the plug.
Threaded coupling on top does not come with the sensor, CLICK HERE. |
|
|
|
|
611 078 01 49
Fuel Pressure Control Valve - EARLY 2002-2003
Located at end of fuel rail
Only for early OM 612 engine, 2002 and early 2003 engines.
90 degree plug connection
Check the part number on your existing unit BEFORE ordering. SEE OTHER CONTROL VALVE, SHOWN BELOW
Mercedes part number: 611 078 01 49
Bosch part number: 0 281 002 241
LATER version is shown below. |
|
|
|
|
648 070 00 46
Fuel Pressure Control Valve 2004-2006
Located at end of fuel rail , 90 degree plug.
A DODGE OR MERCEDES DEALER WILL ONLY SELL THIS ITEM AS PART OF THE ENTIRE FUEL DISTRIBUTION RAIL ASSEMBLY AND NOT AS A SEPARATE ITEM. REPLACING THE ENTIRE FUEL RAIL IS THE RECOMMENDED MANNER IN SERVICING THIS REGULATOR.
THE COMPLETE RAIL IS SHOWN BELOW.
YOU MAY PURCHASE THIS ITEM SEPARATELY BUT, WE CANNOT GUARANTEE THAT IT WILL CURE YOUR PROBLEM AND THEREFORE, THERE WILL BE NO WARRANTY RETURNS ACCEPTED FOR THIS ITEM, AS REPLACEMENT OF ONLY THIS VALVE IS NOT RECOMMENDED BY THE VEHICLE MANUFACTURER.
|
|
|
|
|
014 997 70 45
Fuel Pressure Control Valve Reseal Kit 2002-2003
Reseal kit for fuel control valve located at the firewall end of the fuel distribution rail.
This fits only the 2002-2003 models, with the OM612 engine.
2004 to 2006 OM647 five cylinder engines use a different fuel control valve.
|
|
|
|
|
000 077 02 60
Fuel Pressure Control Valve Seal Ring 2004-2006
For Fuel Pressure Control Valve located at back end of fuel rail.
This is the larger diameter seal ring around the perimeter.
|
|
|
|
|
611 078 05 49
Fuel Pressure Control Valve-LATE 2002-2003
Located at the end of fuel rail. This is the sensor with the 90 degree plug connection.
The straight connection plug sensor on the opposite end of the rail is shown below.
Check the part number on your existing unit before ordering.
Mercedes part number: 611 078 05 49
Bosch part number: 0 281 002 698 |
|
|
|
|
647 074 00 84
Fuel Pressure Relief Valve 2004-2006
This part was developed by Bosch to solve the fuel pump hum problem
The fuel pressure relief valve is located on the high pressure injection pump (front of the engine) This has a tall hex head, which points straight down. This part may be removed and replaced without removing the pump. |
|
|
|
|
006 153 65 28
Fuel Pressure Sensor 2004-2009
Check your plug connector first - This is the pressure sensor with the straight plug connection and has a FLAT side on one end.
Located at back end of fuel rail - OM647 and OM642 engines ONLY - Located on right rail on the V6 engines.
For the fuel control valve with the 90 degree connection (ON THE OPPOSITE END), See Below.
|
|
|
|
|
004 153 75 28
Fuel Pressure Sensor-EARLY VERSION 2002-2003
Located at end of fuel rail, threaded, straight plug connector
The small diameter metal seal ring for this pressure sensor is available and shown below.
CHECK CAREFULLY BEFORE ORDERING AS THERE ARE TWO TYPES OF THIS SENSOR, AN EARLY AND LATE VERSION
THIS ONE IS THE EARY VERSION, BOSCH # 0 281 002 498 AND IT IS APPROXIMATELY 11mm IN DIAMTER (across the threads)
SEE THE LATE VERSION, WHICH IS LUCH LARGER IN DIAMETER., SHOWN BELOW
THE TWO SENSORS ARE NOT INTERCHANGEABLE, AS THE SIZE IS TOTALLY DIFFERENT
OM612 engine only
|
|
|
|
|
646 074 02 84
Fuel Quantity Control Valve 2004-2006
Located on high pressure diesel injection pump (front of engine).
Has 90 degree connector plug.
Aka: Fuel Flow Control Valve, Fuel Control Solenoid or Fuel Metering Valve.
|
|
|
|
|
000 153 93 13
Genuine Mercedes Fuel Moisture Sensor 2002-2003
Mounts in the very bottom of fuel filter.
Water/Air bleed screw mounts on side of filter, see below.
|
|
|
|
|
005 153 50 28
Intake Air Pressure Sensor All Diesel 2002 & LATERLocated on the air filter housing/canister.
Used in all 5 Cylinder Diesels, 3.0L V6 Diesels and 2.1L 4 Cylinder Diesels.
|
|
|
|
|
651 153 00 28
Intake Air Temperature Sensor 2002 & LATER
This is a relatively common failure item, which can cause the engine to go into limp mode.
This sensor is often oil soaked from vapors in the charged air stream. This is caused by oil leakage from the turbocharger shaft seals.
Carrying a spare sensor is suggested, as they are inexpensive and always seem to fail in the middle of nowhere.
|
|
|
|
|
010 153 72 28
MAP Sensor (Boost Pressure) 2.1L 2014-2016Manifold Absolute Pressure (MAP) sensor - aka Boost Pressure Sensor
2014-2016 2.1L 4 Cylinder
|
|
|
|
|
006 153 98 28
MAP Sensor (Boost Pressure) 2002-2003
Manifold Absolute Pressure Sensor
2002-2003 Diesel engine only |
|
|
|
|
006 153 99 28
MAP Sensor (Boost Pressure) 2004 & LATER
2004-2018 2.7L I-5 and 3.0L V6 Diesel engine
Manifold Absolute Pressure (MAP) sensor
aka Boost Pressure Sensor
|
|
|
|
|
000 905 03 01
Oil Level Sender 2002-2006
Located at oil pan - Oil ring seal included.
|
|
|
|
|
000 905 04 01
Oil Level Sender 3.0L V6 2007 & LATER + 2.1L 4 CYL 2014-2016
Located at oil pan, o-ring seal included
|
|
|
|
|
639 300 07 04
Throttle Pedal Actuator 2002-2006 Type A
Complete unit with pedal.
Two possibilities - most 2500 models use this version and has a part# 639 300 07 04
Locate part number on your existing unit to verify. |
|
|
|
|
901 300 05 04
Throttle Pedal Actuator 2002-2006 Type BComplete unit with pedal.
Two possibilities- most 3500 models use this version and has a part number of 901 300 05 04
Find part# on existing unit to verify. |
|
|
