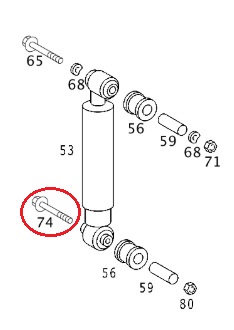

N 910105 012019
Bottom Bolt M12x65 - Rear Shock Absorber 2500 - Genuine Mercedes 2002-2006
Hexagon Head Bolt.
M12x65.
2 required.
#74 in the diagram. |
|
|
|
|

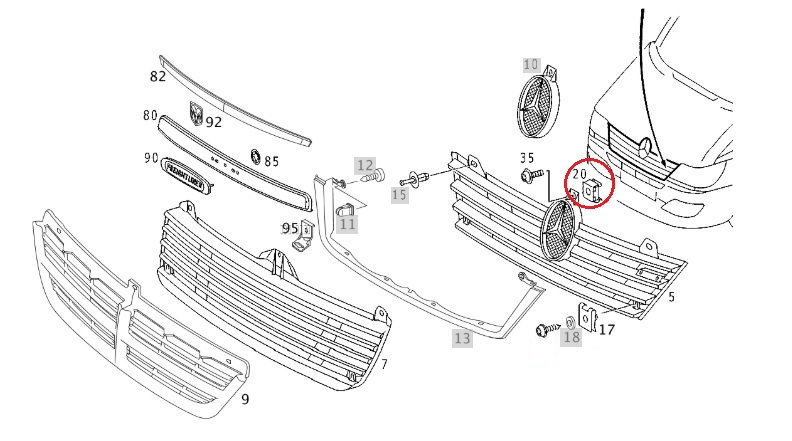

N 913014 006003
Captive Nut M6 - Genuine Mercedes 2002-2006
Attachment, Grid; M6
#20 in the diagram. |
|
|
|
|
601 351 00 72
Differential Pinion Shaft Nut - Genuine Mercedes 2002-Early 2004
This nut needs to be ordered for those early T1N models which have a different nut and spacer bushing in the differential.
Also, see the different spacer bushing also, shown below. |
|
|
|
|
601 351 01 72
Differential Pinion Shaft Nut 2004-2006
This nut for those Mid 2004-2006 T1N models with a taller collar. |
|
|
|
|
108 353 00 42
Differential Spacer Bushing 32mm - Genuine Mercedes 2002-Early 2004
This bushing needs to be ordered for those early T1N models which have a different nut and spacer bushing in the differential.
This spacer bushing's dimensions are: 32mm ID and 16mm Length
Also, see the different pinion shaft nut, shown below.
|
|
|
|
|
21013
Fuel Injection Hose Clamp 13mm 2002 & LATER
Clamping Range 12.5 - 14mm
These are special fuel hose clamps with rolled edges and no open serrations so the clamp will not cut into the hose.
If you are replacing all of the original Mercedes factory "Clic" style clamps on a ......
2002-2003 Sprinter...................... Order 4 x 13mm clamps
2004-2006 Sprinter...................... Order 9 x 13mm clamps & 1 x 15mm clamp
2007-2009 Sprinter...................... Order 6 x 13mm clamps & 6 x 15mm clamps
|
|
|
|
|
21015
Fuel Injection Hose Clamp 15mm 2002 & LATER
Clamping Range 13.5-15.5mm
These are special fuel hose clamps with rolled edges and no open serrations so the clamp will not cut into the hose.
If you are replacing all of the original Mercedes factory "Clic" style clamps on a ......
2002-2003 Sprinter........... Order 4 x 13mm clamps
2004-2006 Sprinter........... Order 9 x 13mm clamps & 1 x 15mm clamp
2007-2009 Sprinter........... Order 6 x 13mm clamps & 6 x 15mm clamps
|
|
|
|
|
21017
Fuel Injection Hose Clamp 17mm 2002 & LATER
Clamping Range 16-18mm
These are special fuel hose clamps with rolled edges and no open serrations so, the clamp will not cut into the hose
If you are replacing replacing all of the original Mercedes factory "Clic" style clamps on a ......
2002-2003 Sprinter........................order 4 x 13mm clamps
2004-2006 Sprinter........................order 9 x 13mm clamps & 1 x 15mm clamp
2007-2009 Sprinter........................order 6 x 13mm clamps & 6 x 15mm clamps
|
|
|
|
|
901 889 00 90
Headlight Trim Panel Spacer / Clip - Genuine Mercedes 2002-2006
Spacer / Clip for the metal trim piece underneath headlight.
#30 in the illustration. |
|
|
|
|

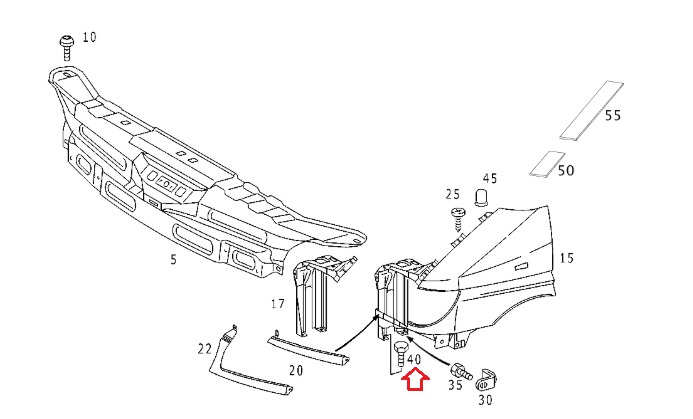

N 910105 008008
Hexagon Head Bolt M8x16 - Genuine Mercedes 2002-2006
M8x16
#40 in the diagram. |
|
|
|
|

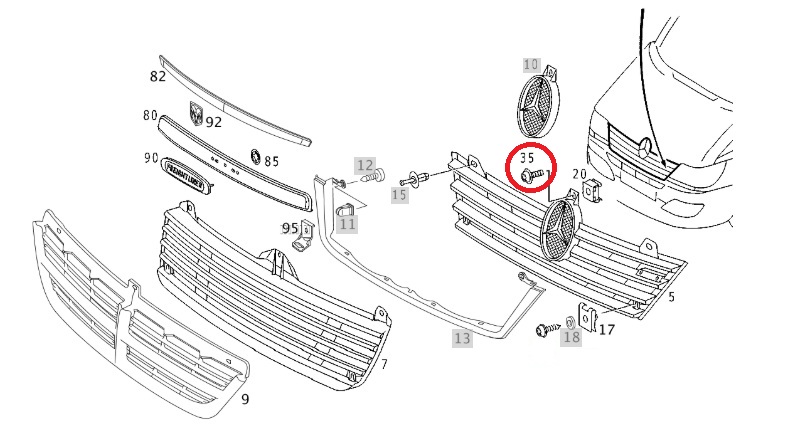

N 000000 001476
Hexalobular Screw M6x16 - Genuine Mercedes 2002-2006
Attachment, Grid; M6x16
#35 in the diagram. |
|
|
|
|
N 910143 008005
Hexalobular Screw M8x40 - Genuine Mercedes 2004-2006 & 2.1L 4CYL 2014-2017
M8x40 screw.
Used on Turbocharger Exhaust Clamp Bolt, Exhaust system, Oil pan to cylinder crankcase, Engine right support to cylinder crankcase, and engine support to cylinder crankcase.
|
|
|
|
|
N 910143 008006
Hexalobular Screw M8X45MM - Genuine Mercedes 2002 & Later
Used as attachment screws (6 Required) for updated oil cooler / oil filter housing and also other areas. |
|
|
|
|
006 997 18 90
Hose Clamp 13-14.5mm Range - Feed Line 2002 & LATER
Clamping Range 13-14.5mm
These are special hose clamps manufactured by Mercedes.
|
|
|
|
|
004 997 20 90
Hose Clamp 14.5-15.5mm Range - Feed Line 2002 & LATER
Clamping Range 14.5-15.5mm
These are special hose clamps manufactured by Mercedes.
|
|
|
|
|
005 997 19 90
Hose Clamp 15.5-17.5mm Range - Feed Line 2002 & LATER
Clamping Range 15.5-17.5mm
These are special hose clamps manufactured by Mercedes. |
|
|
|
|
000 995 86 10
Hose Clamp 15.5-17.5mm Range - Return Line 2002 & LATER
Clamping Range 15.5-17.5mm
These are special hose clamps manufactured by Mercedes. |
|
|
|
|
000000 005888
Hose Clamp 60-80mm
Clamping Range is 60-80mm (12mm width).
Genuine Mercedes part.
|
|
|
|
|
006 997 60 90
Loom Tie 70-90mm
Loom Tie - Hose Clamp with Worm Drive.
(aka Air Pipe Clamp, Boot Clamp, Inter-Cooler Pipe Clamp, Engine Air Duct Clamp, Outlet Hose Clamp, Air Hose Clamp, & Air Tube Clamp)
Air Intake Pipe to Mass Air Flow Sensor.
Clamping Range is 70-90mm.
Replaces 120 995 04 01, 916002 088100 and 916026 070000.
|
|
|
|
|
906 990 00 07
Lug Bolt - Alloy Wheel 2500 2002 & LATER
Sold in increments of 1.
Shank is approximately 52mm long.
20 are required for 2002-2006 models.
24 are required for 2007 and later models.
Only for aluminum alloy wheels on 2500 and 1500 models.
|
|
|
|
|
901 401 00 70
Lug Bolt - Steel Wheel 2002-2006
Front or Rear - Sprinter 2500 with steel wheels.
Front Only - Sprinter 3500 with steel wheels.
Shank is approximately 33mm long.
Sold in increments of 1 each.
|
|
|
|
|
074361-014205
Lug Nut - Steel Wheel 3500 2002-2006
Sold individually, 6 are required for each wheel, for a total of 24 per vehicle.
Only for steel wheels on 3500 models.
|
|
|
|
|
910143-006005
M6 x 35mm - Hexalobular Bolt
This is the M6 x 35mm bolt used for the Oil pan to the crankcase. One of two types of bolts required for securing the oil pan.
Also used for the EGR Valve on 2004-2006 Sprinters. |
|
|
|
|
000000-000276
M8 X 20 MM BOLT - ZINC PLATED TORX HEAD
M8 X 20MM
Sold Individually
Used on all SPRINTERS |
|
|
|
|

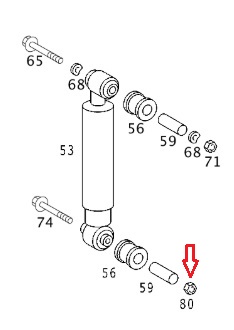

N 913023 012002
Nut for Bottom Bolt - Rear Shock Absorber 2500 - Genuine Mercedes 2002-2006
Nut for the Bottom Bolt of the rear shock absorber on 2500 models.
This part is a "Single-Use Fastener".
2 required.
#80 in the diagram. |
|
|
|
|

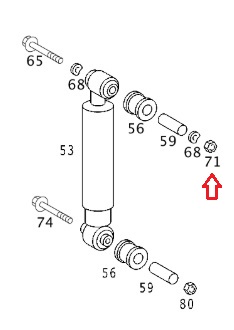

N 913023 014003
Nut for Top Bolt M14x1.5 - Rear Shock Absorber 2500/3500 - Genuine Mercedes 2002-2006
Nut for the Top Bolt of the rear shock absorber on 2500 model.
Nut for the Top AND Bottom bolt of the 3500 model.
This part is a "Single-Use Fastener".
M14x1.5
2 required.
#71 in the diagram for 2500 model.
#71 and #80 in the diagram for the 3500 model. |
|
|
|
|
309 402 02 71
Rear Wheel Stud - 3500 2002-2006
For Rear hub on 3500 models ONLY
Total length is 65 mm or approx 2.5 inches (shank is 57 mm).
|
|
|
|
|
N 000000 002575
Screw for Door Slide Mechanism - Genuine Mercedes 2002-2006
Screw used to install sliding door mechanisms.
Top of sliding door and Bottom of sliding door.
#56 and #62 on the diagram. |
|
|
|
|

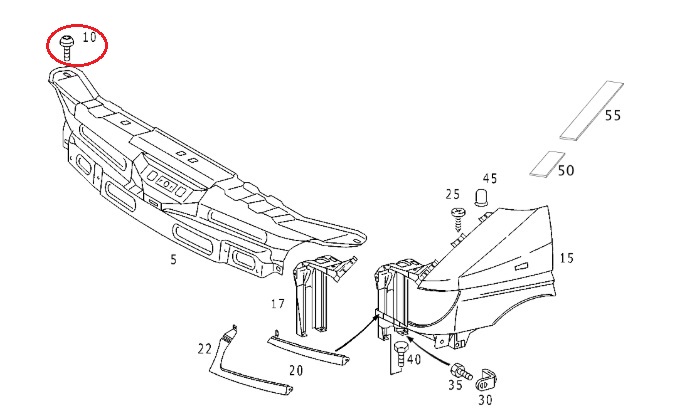

000 984 24 29
Screw M8x20 - Genuine Mercedes 2002-2006
M8x20
4 required.
#10 in the illustration. |
|
|
|
|
003 994 99 45
Securing - Genuine Mercedes 2002-2006
3x2cm.
2 required.
#15 in the diagram. |
|
|
|
|
003 994 87 45
Spring Nut - Genuine Mercedes 2002-2006
Attachment, Grid; 4.8MM
2 required.
#17 in the diagram. |
|
|
|
|

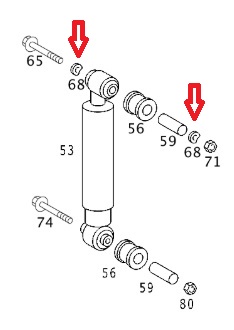

N 000137 014201
Spring Washer - Rear Shock Absorber 2500 - Genuine Mercedes 2002-2006
Spring Washer for the rear shock absorber on 2500 models.
4 required.
#68 in the diagram. |
|
|
|
|
006 990 18 01
Strut Bolt M14x25 - Genuine Mercedes 2002-2006
Damper strut to steering knuckle top.
M14x25.
4 required per side.
#32 in the diagram. |
|
|
|
|
N 000000 000814
Tapping Screw 4.2x16 - Genuine Mercedes 2002-2006
Used in several areas of the Sprinter including:
Lighting unit to cowl (#70 in the first diagram) and Headlight Trim Panel Spacer clip to trim panel (#35 in the second diagram). |
|
|
|
|
N 000000 000530
Tapping Screw 4.8x22 - Genuine Mercedes 2002-2006
Attachment, Grid; 4.8x22
4 required.
#25 in the diagram.
|
|
|
|
|

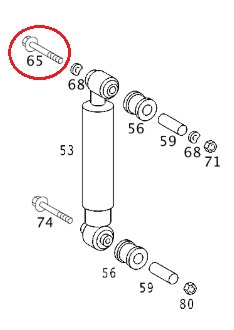

N 000000 005523
Top Bolt - Rear Shock Absorber 2500 - Genuine Mercedes 2002-2006
Hexagon Head Bolt.
2 required.
#65 in the diagram. |
|
|
|
|
639 998 01 85
Tree Nail Clip 2002 & Later
This is a general tree nail clip to secure various interior trim items and plastic pieces and is used throughout the sprinter vehicle.
The clip should receive a small interior screw.
Also used on T1N models as a dowel for the lighting unit to cowl - #65 in the diagram. |
|
|
|
|
11050
Type A Hose Clamp 38-50mm
Clamping Range 38-50mm
Made in Sweden - High quality Rolled clamp edge and smooth inside band will not cut into the hose.
|
|
|
|
|
11056
Type B Hose Clamp 44-56mm
Clamping Range 44-56mm
Made in Sweden - High quality Rolled clamp edge and smooth inside band will not cut into the hose.
|
|
|
|
|
11065
Type C Hose Clamp 50-65mm
Clamping Range is 50-65mm.
Made in Sweden - High quality Rolled clamp edge and smooth inside band will not cut into the hose.
|
|
|
|
|
11044
Type D Hose Clamp 32-44mm
Clamping Range 32-44mm
Made in Sweden - High quality Rolled clamp edge and smooth inside band will not cut into the hose.
|
|
|
|
|
11038
Type E Hose Clamp 26-38mm
Clamping Range 26-38mm
Made in Sweden - High quality Rolled clamp edge and smooth inside band will not cut into the hose.
|
|
|
|
|
11028
Type F Hose Clamp 19-28mm
Clamping Range 19-28mm
Made in Sweden - High quality Rolled clamp edge and smooth inside band will not cut into the hose.
|
|
|
