AdBlue DEF (Diesel Emissions Fluid) 2010 & Later10 Liter jug (approx. 2.6 gallons) bottle of DEF solution for the 2010+ V6 Bluetec diesels
This fluid is used to refill the urea storage tank. This fluid is a relatively generic product and can normally be found in your local area, as opposed to ordering it from us. Most truck stops will carry it in stock. Due to the extreme weight, it is very costly to ship.
SHIPPED BY FEDEX OR UPS GROUND SERVICE ONLY. NO POSTAL SHIPPING FOR ANY LIQUIDS. |
|
|
|
|
AdBlue DEF Injection Valve/Nozzle 2.1L 4 CYL Diesel 2014-2016aka DEF dosing valve
Only for the 4 CYL engines
This OEM Bosch manufactured valve is the identical part sold at a Mercedes dealer
|
|
|
|
|
AdBlue DEF Injection Valve/Nozzle 3.0L V6 Diesel 2010-2019aka DEF dosing valve
This OEM Bosch manufactured valve is the identical part as those sold at a Mercedes dealer
|
|
|
|
|
AdBlue DEF Injection Valve/Nozzle ClampClamp for Ad Blue Nozzle.
|
|
|
|
|
AdBlue DEF Large Tank Heating Unit 2010-2014Check carefully before ordering this unit, as there are two versions of the DEF heating assembly.
This unit is for the larger 25 Liter DEF tanks located UNDER THE VEHICLE, adjacent the exhaust system. Mercedes code MG5
The black cylinder on this unit is approximately 6 1/2 inches long. If the cylinder is 8 1/2 inches long, order the other unit shown below.
This is NOT for those vehicles with smaller 12 Liter AdBlue tank in the engine compartment.
|
|
|
|
|
AdBlue DEF Small Tank Heating Unit 2010-2014Only for the SMALLER 12 Liter AdBlue tank, located in the engine compartment (Code KP2)
The
black cylinder on this unit is approximately 8 1/2 inches long. If
the cylinder is 6 1/2 inches long, order the other unit shown below.
|
|
|
|
|
AdBlue DEF Tank Assembly 2014 and later
This unit is a complete unit with the tank heating unit, for models 2014 and later.
This is the later version which must be replaced as a complete assembly,
as it has a non-replaceable heating unit built in to the tank.
If you look at the top of the tank, you can determine whether you have the sealed tank (this one) or the version with removable heating unit.
|
|
|
|
|
AdBlue DEF Tank Cap 2010 & LaterCap for Diesel Emission Fluid tank (DEF/AdBlue)
This cap is located inside the engine compartment.
|
|
|
|
|
AdBlue DEF Tank Delivery Pump 2010-2014Pump for AdBlue urea emissions fluid.
If you have a later model 3.0L V6, compare your existing pump to the photo.
If it is not the same pump, see the one shown below for 2014 and later models.
This pump is the identical original Bosch pump sold at a Mercedes dealer and NOT the Dorman Chinese knock-off pump seen online.
aka as the DEF delivery or dosing pump
|
|
|
|
|
AdBlue DEF Tank Delivery Pump 2014-2019
This is for the later model vehicles, with the DEF tanked labeled part number 906 470 18 15 on the top of the tank.
Pump for AdBlue urea emissions fluid and, it is used for newer vehicles (All the 4 CYL and the later V6 engines)
aka as the DEF delivery or dosing pump. This pump is the identical original Bosch pump sold at a Mercedes dealer.
Compare your existing pump to the photo.
If not the same pump, see the one shown below.
|
|
|
|
|
Breather Hose 2002-2006
Located at oil separator on top of valve cover.
Also available as part of a complete assembly, see below.
|
|
|
|
|

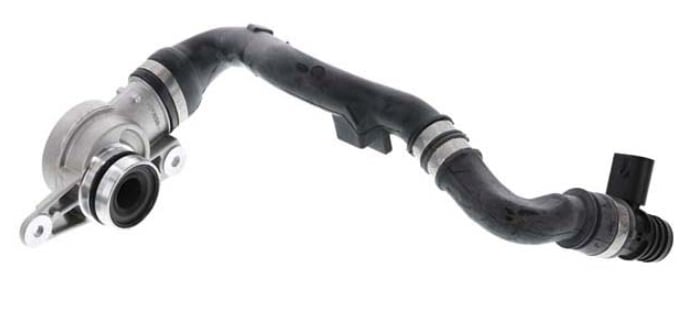

Breather Hose 2007-2009From Crankcase Pressure Control Valve to Intake on 3.0 V6 engine
Oil vapor breather hose
|
|
|
|
|
DEF Feed Line 2010+DEF Feed line to DEF injector
|
|
|
|
|
Diesel Catalytic Converter 3.0L V6 Diesel 2007-2009This is a brand new original Mercedes component, NOT rebuilt, NOT aftermarket.
|
|
|
|
|

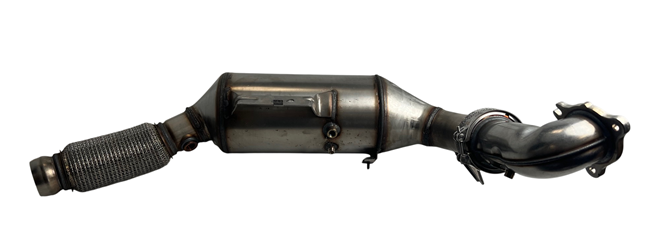

Diesel Catalytst/Diesel Particulate Filter 3.0L V6 Diesel 2010-2018Only for BlueTec engines, 2010 and later.
This unit is a combined device, consisting of Diesel oxidation catalyst up front and and a DPF in the rear of the housing.
This is a brand new original Mercedes component, but it is sold as remanufactured/exchange.
Your old unit must be returned for the core deposit refund. Your total price will include a $ 1440.00 core deposit which will be returned upon receipt of your old rebuildable unit. PRICE INCLUDES THIS DEPOSIT.
|
|
|
|
|
Diesel Particulate Filter (DPF) 3.0L V6 Diesel 2007-2009
DPF for all 3.0 liter V6 turbodiesels 2007 thru 2009 ONLY
Not for BlueTec engines, 2010 and later
Clamps for each end of the DPF are available, shown below.
This is a brand new original Mercedes component, NOT rebuilt, NOT aftermarket.
|
|
|
|
|
DPF Band Clamp 3.0L V6 2010-2019Interfaces with the DPF bracket, shown below
|
|
|
|
|
DPF Bracket 2.1L 4 CYL 2014-2016
This is the DPF bracket which is subject to cracking. The old part number has been superseded twice by new revised part, which is a bit more robust. This part is the most current revision.
|
|
|
|
|
DPF Bracket 3.0L V6 2010-2019
This is the 3.0L V6 DPF bracket which is subject to cracking. The old part number has been superseded by a new revised part, which is more robust.
This bracket interfaces with the DPF band clamp, shown below
|
|
|
|
|
DPF Cleaning Fluid 2007+Additional fluid for DPF cleaning.
This product is not to be used in any manor, other than with the kit shown below.
See complete kit below....
|
|
|
|
|
DPF Cleaning Flush 2007+Additional fluid for DPF flushing. This product is not to be used in any manor, other than with the kit shown below.
See complete kit below......
|
|
|
|
|
DPF Cleaning Kit 2007+Complete kit with all necessary items for cleaning the DPF (Diesel Particulate Filter)
Incudes:
1 x Pressurized Spray Gun
1 x Wand and five spray nozzle attachments
1 x DPF Cleaning Fluid (also available separately)
1 x DPF Cleaning Flush (also available separately)
|
|
|
|
|
EGR By-Pass Tube Gasket 2.1L 4 CYL 2014-2016Flange gasket for EGR tube
|
|
|
|
|
EGR Change Over Valve-Cooler End Housing 3.0l V6 2007-2019This part is located at the back end of the EGR cooler.
The actual EGR valve is located at the front end of the EGR cooler |
|
|
|
|
EGR Change-Over Valve-2002-2003 5 CYL & 4 Cylinder 2014-2016Electro-Vacuum valve located in the EGR circuit on early 5 cylinder engines and the later 4 cylinder engines.
|
|
|
|
|
EGR Cooler 2.1L 4 CYL 2014-2016Heat exchanger for the EGR system
|
|
|
|
|
EGR Cooler 3.0 V6 Diesel 2007+
See all related gaskets, shown below |
|
|
|
|
EGR Cooler Gasket 2.1L 4 CYL 2014-2016Located on end of the EGR cooler.
|
|
|
|
|
EGR Cooler Gasket 3.0 V6 Diesel 2007-2019Two are required, one for each end of the cooler
|
|
|
|
|
EGR Cooler Hose A 2007-2019 3.0LOnly for 3.0 V6 diesel |
|
|
|
|
EGR Cooler Hose B 2007-2019 3.0LOnly for 3.0 V6 diesel |
|
|
|
|
EGR Gasket 2.1L 4 CYL 2014-2016Gasket for EGR
|
|
|
|
|
EGR Pipe 2014-2016 2.1L 4 CYLAdjacent to EGR Valve and Pressure Converter (Transducer)
|
|
|
|
|
EGR Pipe Gasket 2.1L 4 CYL 2014-2016This gasket is located between the EGR pipe and the chain case cover.
|
|
|
|
|
EGR Pipe Gasket 2.1L 4 CYL 2014-2016This gasket is located between the exhaust manifold and the EGR pipe
|
|
|
|
|
EGR Pipe Gasket 3.0L V6 Diesel 2007-2019Fits either end of stainless steel EGR pipes. See pipes pictured below.
|
|
|
|
|

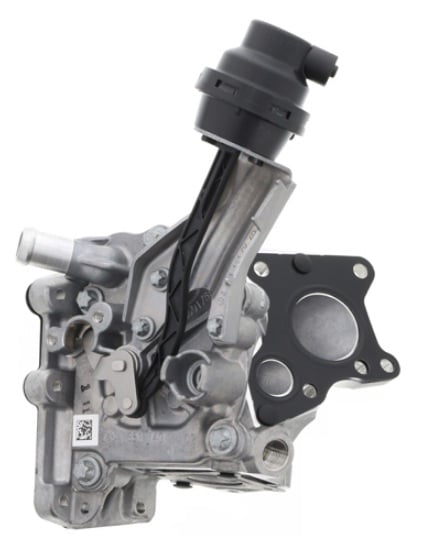

EGR Valve 2.1L 4 CYL 2014-2016
New original EGR valve made by VDO, the OEM supplier to Mercedes.
This is the identical EGR valve sold at a Mercedes dealership.
|
|
|
|
|
EGR Valve 3.0L V6 Diesel 2010-2019Only for OM 642 Diesel Engine (BluTec) (2010 and later)
Not for 2007-2009 models
This is the exact identical new OEM Wahler EGR valve sold at a Mercedes or Freightliner dealer.
Part is a brand new, original part and NOT rebuilt. No core deposit is required.
Other than the gasket, no repair parts are available for this valve.
|
|
|
|
|
EGR Valve 3.0L V6 Diesel 2007-2009For OM 642 Diesel Engine 2007-2009
This is a brand new, original Mercedes EGR valve. No core deposit, sold outright.
Other than the gasket, no repair parts are available for this valve.
|
|
|
|
|
EGR Valve Gasket-3.0L V6 Diesel 2007-2019
|
|
|
|
|
EGR Valve Gasket-A 2.1L 4 CYL 2014-2016The EGR valve on the 2.1L 4 CYL has two gaskets, A & B. See the other one (B), shown below. |
|
|
|
|
EGR Valve Gasket-B 2.1L 4 CYL 2014-2016The EGR valve on the 2.1L 4 CYL has two gaskets, A & B. See the other one (A), shown below.
|
|
|
|
|
EGR Valve Hose #1 2007-2019Only for 3.0 V6 diesel
|
|
|
|
|
EGR Valve Hose #2 2007-2019Only for 3.0 V6 diesel |
|
|
|
|
Exhaust Back Pressure Sensor 3.0L V6 2014-2018
See earlier version of this sensor below
|
|
|
|
|

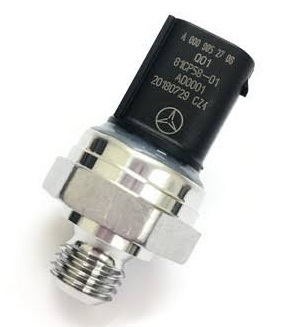

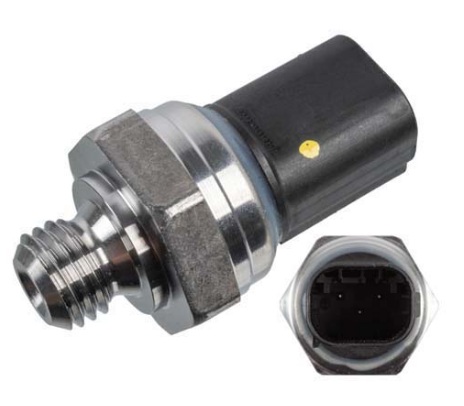

Exhaust Back Pressure Sensor/Low Fuel Pressure Sensor 2002-2003 & 2007-2019 3.0L V6Located adjacent to EGR cooler on the 3.0L V6 models
Located on
left side of engine block on 2002-2003 5 CYL models (known as a low fuel pressure sensor)
Female plug, three contact pins inside plug housing.
|
|
|
|
|
Exhaust Clamp Bolt 2002-2006 & 2014-2016 2.1L 4 CYLThis bolt is used on 2002-2006 5 CYL engines, as well as 2014+ 2.1L 4 CYL engines |
|
|
|
|
Exhaust Clamp/Sleeve-60MM 2007-2009 3.0L V6
Located at the joint between OUTPUT end of the DPF and the exhaust pipe.
This clamp is for a 60MM OD tube/pipe.
It is a sleeve type joint, with two clamps.
|
|
|
|
|
Exhaust Clamp-60MM 2007+
This clamp is for a 60MM OD tube (approx 70MM expanded)
This clamp is used at the INPUT side of the 2007-2009 3.0L V6 DPF
|
|
|
|
|
Exhaust/DPF Clamp-65MM 2014-2016 4 CYL
Located at the joint at the OUTPUT end of the DPF, where it joints the pipe.
This clamp is for a 65MM OD tube (approx 76MM expanded)
This clamp is also used on 2014+ 2.1L 4 CYL engines
|
|
|
|
|
