906 398 00 00
2007-2018 Sprinter 2500 BILSTEIN Strut/Shock Absorber Kit ***FREE USA SHIPPING***
Set of all four shock absorbers, made by Bilstein in Germany.
Only for 2500 Cargo Van - Not for passenger vans.
Not for Winnebago or Itasca motor homes, which are built on the 3500 chassis.
Will not fit 4WD models, as they are far too short in length.
|
|
|
|
|
906 398 00 01
2007-2018 Sprinter 3500 BILSTEIN Strut/Shock Absorber Kit ***FREE USA SHIPPING***
Set of all four shock absorbers, made by Bilstein of Germany.
2 x 22-292254
2 x 19-169163
Only for 3500 Cargo Van - Not for passenger vans.
Not for Winnebago or Itasca motor homes.
Will not fit 4WD models, as they are far too short in length.
|
|
|
|
|
22-184238
Front BILSTEIN Strut Assembly - 2500 STANDARD DUTY 2007-2018
Fits all Sprinter 2500 models, Left or Right.
(Supersedes old part # 22-184238)
Will not fit 4WD models, as they are far too short in length.
MFG: Bilstein
These are the Standard Duty B4 struts (black in color).
|
|
|
|
|
22-184245
Front BILSTEIN Strut Assembly - 2500/3500 2007-2018
Originally for 3500 models - this strut can also be used on 2500 models as a medium duty alternative, e.g. motorhome/camper and heavier cargo loads.
Will not fit 4WD models, as they are far too short in length.
MFG: Bilstein |
|
|
|
|
22-249326
Front BILSTEIN Strut Assembly - 2500/3500 B6 HEAVY DUTY 2007-2018
These are the HEAVY DUTY B6 Struts, which are yellow in color. The standard struts are black.
Fits all Sprinter II models, both 2500 and 3500 (with code CF4, & XL8).
Sold Individually - Order Two if doing both sides of vehicle.
Not for cars with Camper Conversion or Damptronic Suspension.
|
|
|
|
|
22-292254-SET
Front BILSTEIN Strut Set of Two - 2500/3500 2007-2018
Originally for 3500 models - this strut can also be used on 2500 models as a medium duty alternative, e.g. motorhome/camper and heavier cargo loads.
Will not fit 4WD models, as they are far too short in length.
*Free USA Shipping*
|
|
|
|
|
87 2656
Front Strut Assembly - 2500 KONI 2007-2018
Sold individually, order two if doing both sides of van.
MFG: Koni
Will not fit 4WD models, as they are far too short in length. |
|
|
|
|
87 2657
Front Strut Assembly - 3500 KONI 2007-2018
Sold individually, order two if doing both sides of van.
MFG: Koni
Will not fit 4WD models, as they are far too short in length. |
|
|
|
|
331702
Front Strut Assembly 2500/3500 KYB 2007-2018
Fits all Sprinter 2500 & 3500 models
MFG: KYB
Will not fit 4WD models, as they are far too short in length.
|
|
|
|
|
001 990 74 00
Front Strut Bolt 2007 & Later
Bolt for the Front Struts that goes with the Strut Mounts.
4 required per side, so order 8 if replacing both sides.
|
|
|
|
|
906 323 02 92-MB
Front Strut Boot 2007 & Later - Genuine Mercedes
Front strut dust boot for all 2500 and 3500 models, including 4WD models
Sold individually.... order two if doing both sides.
Genuine Mercedes part. |
|
|
|
|
906 323 02 92-FEBI
Front Strut Boot 2007 & Later FEBI
Front strut dust boot for all 2500 and 3500 models, including 4WD models
Sold individually.... order two if doing both sides
|
|
|
|
|
906 323 05 20-FEBI
Front Strut Mount - FEBI 2007 & LATER
2 required per vehicle, sold each.
Fits all models 1500, 2500, 3500 including 4WD models. |
|
|
|
|
906 323 05 20-MB
Front Strut Mount - Genuine Mercedes 2007 & LATER
2 required per vehicle, sold individually. Fits all models 1500, 2500, 3500 including 4WD models.
|
|
|
|
|
906 323 05 20-LEMFORDER
Front Strut Mount - OEM 2007 & LATER
2 required per vehicle, sold each.
Fits all models 1500, 2500, 3500 including 4WD models.
Lemforder is the OEM supplier to Mercedes for this part. |
|
|
|
|
906 321 16 03
Front Transverse Leaf Spring 2007-2018
Often found to be the cause of front end "bottoming out" problems.
This composite spring sags or breaks in higher mileage vehicles, causing the van's front end to droop and a lot of suspension banging noises.
Front Transverse Leaf Spring End Bushings are not included, see below. |
|
|
|
|
906 322 00 19
Front Transverse Leaf Spring End Bushing 2007-2018
Two are required. One for each end of the leaf spring
|
|
|
|
|
906 322 06 19
Front Transverse Leaf Spring Lower Seat 2007-2018
Two are required. Situated below the leaf spring.
|
|
|
|
|
906 322 10 19
Front Transverse Leaf Spring Upper Seat 2007-2018Two are required. Situated on the top of the leaf spring.
|
|
|
|
|
24-223911
Rear BILSTEIN Shock Absorber - 2500 B6 Heavy Duty 2007-2018
Bilstein B6 Heavy Duty Rear Shock Absorber.
Only for Rear of 2500 cargo van and passenger van with Code CF4, CF6, XL8, or Z12.
Not for Winnebago or Itasca motor homes, built on the 3500 chassis. Not for cars with Camper Conversion.
Sold Individually - Order Two if doing both sides of vehicle. |
|
|
|
|
19-171579
Rear BILSTEIN Shock Absorber - 2500 CARGO VAN 2007-2018
Only for Rear of 2500 cargo van.
Not for Winnebago or Itasca motor homes, built on the 3500 chassis.
Not for passenger vans.
|
|
|
|
|
24-177702
Rear BILSTEIN Shock Absorber - 2500 MOTORHOME 2002-2018
Two Required - Sold Individually.
Motorhome shocks are longer than standard van shocks.
Heavy Duty (High Pressure Gas) for most Sprinter based motor home with single wheel rear axle, e.g. Airstream Westfalia.
OVERALL LENGTH OF THIS SHOCK ABSORBER IS APPROXIMATELY 560 mm or 22 inches with both end bushings having 14mm holes. Some people report requiring an adapter sleeve to make these fit the original 12mm mounting bolt on the bottom end.
|
|
|
|
|
24-167161
Rear BILSTEIN Shock Absorber - 3500 MOTORHOME 2002-2018
Two Required - Sold Individually
Motorhome shocks are longer than standard van shocks.
Heavy duty (High Pressure Gas) for most Sprinter based motor home with dual wheel rear axle. e.g. Winnebago View, Itasca Navion.
OVERALL LENGTH OF THIS SHOCK ABSORBER IS APPROXIMATELY 593 mm or 23.25 inches with both end bushings having 14mm holes. Some people report requiring an adapter sleeve to make these fit the original 12mm mounting bolt on the bottom end.
|
|
|
|
|
19-169163-SET
Rear BILSTEIN Shock Absorber Set of Two - 3500 CARGO VAN 2007-2018 *** FREE USA Shipping ***
Only for Rear of 3500 Sprinter cargo van.
Not for Winnebago or Itasca motor homes. |
|
|
|
|
19-169279
Rear BILSTEIN Shock Absorber-2500 MEDIUM DUTY 2007-2018
Medium duty shock for rear of 2500 Sprinter based campers or cargo vans.
Not for Winnebago, Itasca or any other motor homes built on a 3500 chassis.
The 3500 series requires a longer rear shock absorber. |
|
|
|
|
19-169163
Rear BILSTEIN Shock Absorber-3500 CARGO VAN 2007-2018
Only for rear of 3500 Sprinter cargo van.
Not for Winnebago or Itasca motor homes. |
|
|
|
|

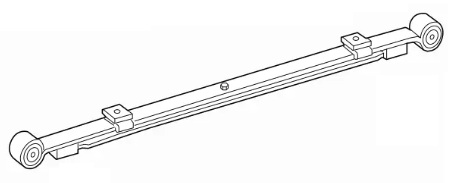

906 320 29 06
Rear Leaf Spring 2007-2013Rear Leaf Spring for a 2007-2013 Sprinter ONLY. These are Genuine Mercedes Benz. This is sold as an individual unit, vehicle has one per side. |
|
|
|
|
906 320 82 06
Rear Leaf Spring 2007-2018
2 Required
VIN Specific - Email us to Confirm Fitment |
|
|
|
|
906 320 29 06C
Rear Leaf Spring 2014+
Rear Leaf Spring for a 2014+ Sprinter ONLY. These are Genuine Mercedes Benz. This is sold as an individual unit, vehicle has one per side.
SPECIAL ORDER ONLY
Please contact us and provide VIN number for fitment confirmation |
|
|
|
|
82 2585
Rear Shock Absorber - 2500 KONI 2007-2018
Fits all Sprinter 2500 models
Sold Individually - Order TWO if doing both sides of van.
Manufactured by Koni. |
|
|
|
|
906 320 07 31-SACHS
Rear Shock Absorber - 2500 SACHS 2007-2018
Only for Rear of 2500 CARGO VAN
Not for Winnebago or Itasca motor homes, built on the 3500 chassis.
Not for passenger vans.
|
|
|
|
|
82 2588
Rear Shock Absorber - 3500 KONI 2007-2018
Sold individually, order two if doing both sides of van.
MFG: Koni
|
|
|
|
|

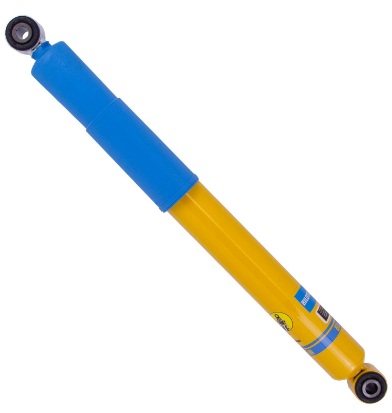

906 320 14 31
Rear Shock Absorber 4WD Sprinter ONLY 2015-2018
Fits Left or Right Rear for 4WD models only. |
|
|
|
|
349045
Rear Shock Absorber-2500 KYB 2007-2018Only for rear of 2500 cargo van RWD
Not for Winnebago or Itasca motor homes, built on the 3500 chassis.
Not for passenger vans, nor 4WD models
|
|
|
|
|
906 320 12 31
Rear Shock Absorber-2500 Passenger Van 2007-2018
Only for Rear of 2500 passenger van
These are the same Sachs shocks sold at a franchise Dodge, Freightliner or Mercedes dealer.
Not for Winnebago or Itasca motor homes, built on the 3500 chassis.
Not for cargo vans.
|
|
|
|
|
906 320 07 31-VAICO
Rear Shock Absorber-2500 VAICO 2007-2018
Only for Rear of 2500 cargo vans
Not for Winnebago or Itasca motor homes, built on the 3500 chassis.
Not for passenger vans.
|
|
|
|
|
906 320 08 31
Rear Shock Absorber-3500 OEM 2007-2018
|
|
|
|
|
343484
Rear Shock Absorber-3500 KYB 2007-2018Standard rear shock absorber made by KYB
|
|
|
|
|
906 398 00 32
Upper & Lower Strut Stop Kit 2007 & Later
Set of both upper and lower strut stops.
2 sets required per vehicle.
Order two kits if doing both sides of vehicle.
|
|
|
