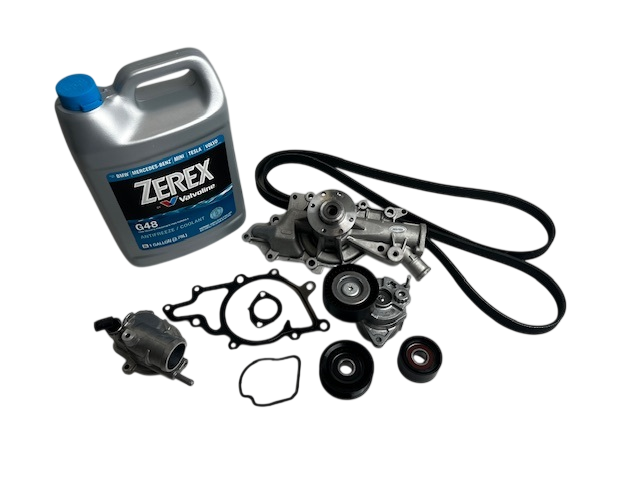

647 200 01 01-KIT
2004 - 2006 Water Pump and Serpentine Belt Kit
Complete Water Pump and Serpentine Belt replacement kit for the T1N - 2004 - 2006
* This KIT no longer has the water pump pulley (647 205 00 10) as shown in the picture. Product discontinued by Mercedes *
001 835 13 64
Auxiliary Coolant Water Pump 2002-2006
Electric water pump in heater circuit.
aka: Auxiliary Water Pump
This is the original Bosch pump, installed by Mercedes at the factory.
000 905 61 02-FEBI
Coolant Temperature Sensor 2002 & LATER
Coolant temperature sending unit manufactured by Febi, an OEM supplier to Mercedes.
Located on the thermostat housing and/or on the intake manifold, depending upon the model year. 90 degree electrical plug connection. Held in place by metal clip. O-ring seal is included.
000 905 61 02-MB
Coolant Temperature Sensor 2002 & LATER
Coolant t emperature sending unit.
Located on the thermostat housing and/or on the intake manifold, depending upon the model year. 90 degree electrical plug connection. Held in place by metal clip. O-ring seal is included.
000 200 82 23-BW
Fan Clutch with Fan Blade - BW 2002-2006
Manufactured by Borg Warner. Some consider this unit as a Heavy Duty version compared to the original design by Mercedes.
Also available as a an original Mercedes part, see below.
Fits all five cylinder engine models, 2002-2006.
611 203 03 80
Thermostat Housing Seal 2002-2006
From thermostat housing to engine block.
For all five cylinder engines.
If you are ordering a new thermostat housing, you will not need this gasket.
611 200 07 15-MB
Thermostat with Housing & Seal - Genuine Mercedes 2002-2006
Genuine Mercedes part.
Opening temperature 87 degrees Celsius thermostat assembly with seal and temperature gauge sensor are included.
611 200 07 15-WAHLER
Thermostat with Housing & Seal - OEM 2002-2006
Wahler is the OEM Supplier to Mercedes for this part.
Opening temperature 87 degrees Celsius thermostat assembly with seal and temperature gauge sensor are included.
611 200 07 15-VERNET
Thermostat with Housing & Seal - Vernet 2002-2006
Thermostat assembly. Seal and temperature gauge sensor are included.
Opening temperature 87 degrees Celsius.

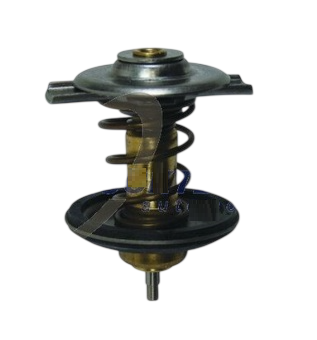

611 200 07 15-THERMO
Thermostat without housing 2002-2006
Thermostat without the housing. Includes the housing seal to engine. This unit allows you to re-use the old housing and temperature sensor.
Opening temperature 87 degrees Celsius.
Only works with Mahle Behr thermostat housing. If you have any other brands, this will not fit.
647 200 01 01-MB
Water Pump - Genuine Mercedes 2004-2006
Fits OM647 engine 2004-2006 only.
This pump is Genuine Mercedes part. Gaskets are not included and sold separately. See Below.
Genuine Mercedes water pump is missing the threading for the idler pulley to mount by design so the thread needs to be tapped.
611 200 11 01
Water Pump - GRAF 2002-2003
Fits Sprinter OM612 engine for 2002-2003 ONLY.
Pump is furnished with the gasket to the engine block.
Graf is the OEM Supplier to Mercedes for this part.
647 200 01 01-GRAF
Water Pump - Graf 2004-2006
Fits OM647 engine 2004-2006 only.
This pump is made by Graf, OE supplier of water pumps to Mercedes.

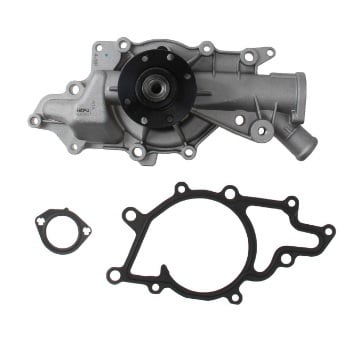

647 200 01 01-HEPU
Water Pump - HEPU 2004-2006
Fits OM647 engine 2004-2006 only.
This pump is made by Hepu, OEM supplier to Mercedes part for this part.

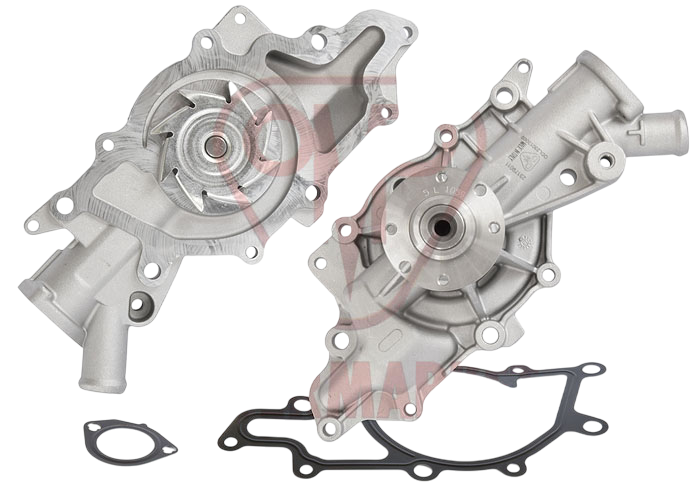

647 200 01 01-OMP
Water Pump - OMP 2004-2006
Fits OM647 engine 2004-2006 only.
This pump is made by OMP, Made in Italy.
611 200 11 01-KIT
Water Pump and Serpentine Belt Kit - OEM 2002-2003
Complete Water Pump and Serpentine Belt replacement kit for the T1N OM612 diesels 2002-2003.
647 201 00 80
Water Pump Coolant Pipe Flange Gasket 2004-2006
Metal gasket and teflon coated.
611 201 02 80-MB
Water Pump Gasket - Genuine Mercedes 2002-2006
This is a metal teflon coated gasket.
Genuine Mercedes part.
611 201 02 80-ELRING
Water Pump Gasket - OEM 2002-2006
This is a metal teflon coated gasket.
Elring is the OEM supplier to Mercedes for this part.
611 205 02 10
Water Pump Pulley OM612 Diesel 2002-2003
1 Required - Only for 2002 & 2003 engines.
Not for 2004-2006 OM647 engines.

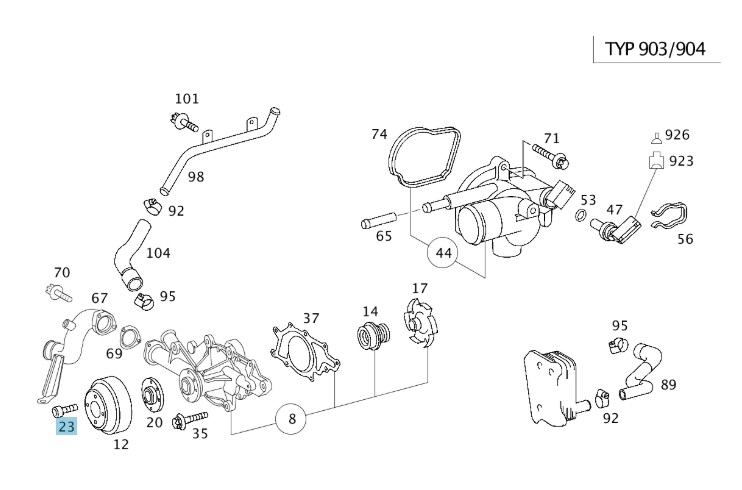

647 205 00 10-USED
Water Pump Pulley OM647 Diesel 2004-2006
USED PART
*New Parts No Longer Available - Discontinued by Mercedes *
