642 990 29 07-FEBI KIT
2007 & LATER 3.0L V6 Diesel SPRINTER Fuel Injector Bolt Kit
Complete set of six stretch bolts and six lower injector seals.
Any time an injector is replaced, both the bolt and the seal must be replaced.
These two components should never be reused.
|
|
|
|
|
164 490 05 13
AdBlue DEF Injection Valve / Nozzle - EPA10 & EPA13
Also known as DEF dosing valve (Diesel Emissions Fluid Injector).
Low Emission Engine - EPA 10 and EPA 13
This OEM Bosch valve is the identical part as those sold at a Mercedes dealer.
*Send us your VIN if you're unsure about fitment* |
|
|
|
|
651 070 30 87
Diesel Fuel Injector - New 2.1L 4Cyl 2014-2016
Original New Factory Injector - For 2.1L 4 Cyl engines 2014-2016
|
|
|
|
|
642 070 12 87-BOSCH
Diesel Fuel Injector - New 3.0 V6 2010 & LATER
Original New Factory Injector - For BlueTec OM642.896, OM642.898 & OM642.899 V6 diesel engines 2010 & Later
Only for BluTec engines 2010 and later - Six Required, Sold Individually
|
|
|
|
|
642 070 13 01-NEW
Diesel Injection Pump NEW 3.0L V6 Diesel 2010-2022
OM 642.993 V6 diesel engine 2010 and Later
NOT for BlueTec engines 2007-2009
This is a New Bosch pump, the OEM supplier to Mercedes for this part. |
|
|
|
|

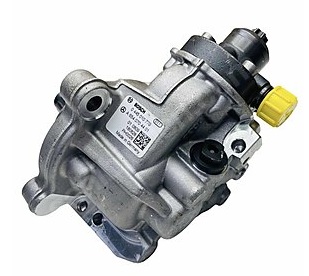

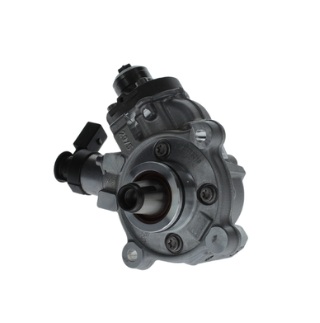

642 070 13 01-REMAN
Diesel Injection Pump REMAN / EXCHANGE 3.0L V6 Diesel 2010-2022
OM642.993 V6 diesel engine 2010-2022 Only.
NOT for BlueTec engines 2007-2009.
This is a remanufactured Mercedes Benz pump. It will be furnished in
either a Mercedes Benz or a Bosch box. In either case, these pumps are
remanufactured by Bosch, the original supplier to Mercedes Benz.
All returned cores must be complete, undamaged and fully assembled or they will not be accepted for refund. |
|
|
|
|
20110
DPF Filter Cleaner 2007 & LaterAdditional fluid for DPF cleaning.
This product is not to be used in any manner, other than with the kit shown below.
See complete kit below....
|
|
|
|
|
20112
DPF Filter Purge 2007 & Later
Additional fluid for DPF flushing. This product is not to be used in any manner, other than with the kit shown below.
See complete kit below......
|
|
|
|
|
005 153 23 28
Fuel & Oil Temperature Sender 2002 & LATER
2 contact pins, straight electrical connector.
Located on the injection pump on front of engine block on the 2.7L 5 CYL diesel engines.
Located near oil pan for the 3.0L V6 diesel engines.
|
|
|
|
|
654 092 00 00-MANN
Fuel Filter Replacement Kit 2023+ Sprinter OM654
Fuel Filter Replacement Kit OM654
Same as previous part number 654 092 02 00 |
|
|
|
|
642 070 57 81
Fuel Hose A 3.0L V6 2010 & LATER
REQUIRES TWO 13MM CLAMPS.
Fuel filter to high pressure injection pump. |
|
|
|
|
21013
Fuel Injection Hose Clamp 13mm 2002 & LATER
Clamping Range 12.5 - 14mm
These are special fuel hose clamps with rolled edges and no open serrations so the clamp will not cut into the hose.
If you are replacing all of the original Mercedes factory "Clic" style clamps on a ......
2002-2003 Sprinter...................... Order 4 x 13mm clamps
2004-2006 Sprinter...................... Order 9 x 13mm clamps & 1 x 15mm clamp
2007-2009 Sprinter...................... Order 6 x 13mm clamps & 6 x 15mm clamps
|
|
|
|
|
642 078 00 80-MB
Fuel Injection Pump O-Ring 2007 & LATER V6
Genuine Mercedes part - Pump seal for 2010+ V6 engines. 1 seal per engine, green in color.
|
|
|
|
|
642 078 00 80-OEM
Fuel Injection Pump O-Ring 2007 & LATER V6
Pump seal for 2010+ V6 engines. 1 seal per engine, green in color.
|
|
|
|
|
642 070 12 87 80
Fuel Injector - REMAN / EXCHANGE 3.0L V6 2010 & LATER
Original Remanufactured / Exchange factory Bosch injector - For BlueTec OM 642.896, OM642.898 & 642.899 V6 diesel engine
A CORE DEPOSIT OF $100 PER INJECTOR WILL BE ADDED TO YOUR INVOICE. THIS DEPOSIT WILL BE REFUNDED UPON RETURN OF YOUR OLD REBUILDABLE INJECTOR.
All returned cores must be complete, undamaged and fully assembled or they will not be accepted for refund.
Only for BluTec engines 2010 and later
THESE ARE ALSO AVAILABLE NEW, SEE BELOW
|
|
|
|
|
642 016 00 38
Fuel Injector Retainer 2007 & LATER 3.0L V6
All 2007 and later 3.0L V6 Diesel engines
|
|
|
|
|
000 990 29 07-FEBI
Fuel Injector Retainer Bolt 2002 & LATER 2.7L & 3.0L
These are manufactured by Febi-Bilstein, the OEM supplier to Mercedes.
T-40 Torx head screw - 6mm outer diameter - 79mm stretch bolt (24mm shank & 55mm thread).
Order 1 screw for each injector.
These bolts are to be tightened in two stages. Torque to 7 Nm (62 inch lbs), then an additional 90 degrees. |
|
|
|
|
000 990 29 07-MB
Fuel Injector Retainer Bolt 2002 & LATER 2.7L & 3.0L - Genuine Mercedes
These are Genuine Mercedes bolts.
T-40 Torx head screw - 6mm outer diameter - 79mm stretch bolt (24mm shank & 55mm thread).
Order 1 screw for each injector.
These bolts are to be tightened in two stages. Torque to 7 Nm (62 inch lbs), then an additional 90 degrees. |
|
|
|
|
642 070 08 00
Fuel Injector Supply Line 3.0L V6 2007 & LATER
Steel line from the either fuel rail to each of the six injectors.
These lines will often leak at either end, especially if they have been over-torqued.
Six required. one for each injector.
|
|
|
|
|
256 070 01 87
Fuel Injector-Sprinter 2019+ 2.0L 4 CYL & METRIS 2016+Four injectors per engine, sold individually.
This is the identical Bosch fuel injector sold by a Mercedes franchise dealership.
|
|
|
|
|
006 153 78 28
Fuel Pressure Sensor 2010 & LATER
Oval shaped Plug, no flat edges - if you have a 2009 or 2010 check the plug connector first.
Located on back end of the Right side fuel rail.
The 90 degree sensor on the Left fuel rail is not available as a separate component and is only available with the left fuel rail assembly.
|
|
|
|
|
000 997 26 63
Fuel Purge Hose Coupling / Screw 2007 & LATER
Threads into the top of fuel filter moisture sensor for 2007 and later 3.0L V6 engines.
Used for attaching the fuel purge hose to the moisture sensor.
|
|
|
|
|
642 070 10 00
Fuel Rail Supply Line 2010 & LATER 3.0L V6
Also Known As: Fuel Delivery Line
Steel line from the high pressure injection pump to the fuel rail. This line will often leak at either end, especially if it has been over-torqued.
|
|
|
|
|
000 078 05 80-BOSCH
Fuel Return Line Seal 3.0L V6 & 2.1L 4CYL DIESEL
1 required for each injector.
Replace these seals at the same time that you replace the fuel return line or you may have leakage.
Seals leak line (fuel return line) to each injector.
These are made by Bosch and are the identical seal ring sold at a Mercedes franchise dealer.
|
|
|
|
|
000 078 05 80-MB
Fuel Return Line Seal 3.0L V6 & 2.1L 4CYL DIESEL
1 required for each injector.
Replace these seals at the same time that you replace the fuel return line or you may have leakage.
Seals leak line (fuel return line) |
|
|
|
|
642 990 29 07-MB KIT
Genuine Mercedes - 2007 & LATER 3.0L V6 Diesel SPRINTER Fuel Injector Bolt Kit
Complete set of Six stretch bolts and Six lower injector seals.
Any time an injector is replaced, both the bolt and the seal must be replaced.
These two components should never be reused.
|
|
|
|
|
654 090 06 52-MB
Genuine Mercedes - Fuel Filter Housing 2023+ Sprinter OM654
Fuel Filter Housing Replacement OM654 |
|
|
|
|
654 092 00 00-MB
Genuine Mercedes - Fuel Filter Replacement Kit 2023+ Sprinter OM654
Fuel Filter Replacement Kit OM654
Same as previous part number 654 092 02 00 |
|
|
|
|
642 589 00 09 00-MB
Genuine Mercedes - Socket Wrench Bit
Socket Wrench Bit |
|
|
|
|
006 997 18 90
Hose Clamp - Feed Line 2002 & LATER
Clamping Range 13-14.5mm
These are special hose clamps manufactured by Mercedes.
|
|
|
|
|
642 070 27 95
Left Fuel Distribution Rail 2010-2022 3.0L V6
Driver's side rail. Includes Fuel Control Valve on end of rail.
The fuel control valve (642 070 02 46) with the 90 degree connection is only available with the fuel rail.
|
|
|
|
|
642 078 01 49
Pressure Control Valve 3.0L V6 2007-2022
Sits on the end of fuel rail |
|
|
|
|
007 542 63 18
Rear Oygen Sensor-2019+ Sprinter 2.0L & METRIS 2016+Rear Oxygen sensor, located after the catalyst
This is the identical Bosch Oxygen sensor sold at a franchise Mercedes dealer for half the price.
|
|
|
|
|
642 070 30 95
Right Fuel Distribution Rail 2010-2022 3.0L V6
Right side or Passenger's side
|
|
|
|
|
447 300 02 00
Throttle Pedal Actuator - 2007 & LATER
Complete assembly, with pedal.
For both METRIS and SPRINTER - 2007 & Later. |
|
|
