901 230 68 11-KIT
2002-2006 SPRINTER A/C Kit *FREE USA SHIPPING*
Our kit comes with a new OEM Nippondenso compressor, receiver drier and expansion valve.
000 230 70 11
A/C Compressor - Front or Main New 2002-2006
This OEM compressor is Brand New and is complete with the clutch assembly. Compressors are sealed, pressurized, and filled with factory spec quantity of oil.
Same unit as sold at a Mercedes or Dodge Dealership. NO CORE DEPOSIT AND NO RETURN OF YOUR OLD COMPRESSOR.
001 230 39 11
A/C Compressor - Secondary with Roof A/C 2002-2006
Includes clutch assembly. Photo of this product is not correct, as the clutch on this compressor has a v-belt, rather than a serpentine belt.
Genuine Mercedes part.
901 500 05 54-BEHR
A/C Condenser - OEM 2002-2006
Manufactured by Behr Mahle, the OEM Supplier to Mercedes for this part.
901 500 05 54-NISSENS
A/C Condenser Nissens 2002-2006
Manufactured by Nissens, a manufacturer of radiators, condensers, cooling and A/C products from Denmark.
000 835 27 74
A/C Evaporator 2002-2006
Located under dash
901 830 00 84
A/C Expansion Valve - Front Evaporator 2002-2006
Located at evaporator core
901 832 08 15-AFT
A/C Line - Compressor to Condenser 2002-2006
This line is secured to the compressor on one end and the condenser on the other end.
Seal rings are included.
901 832 08 15-MB
A/C Line - Compressor to Condenser 2002-2006 Genuine Mercedes
This line is secured to the compressor on one end and the condenser on the other end.
Seal rings are included.

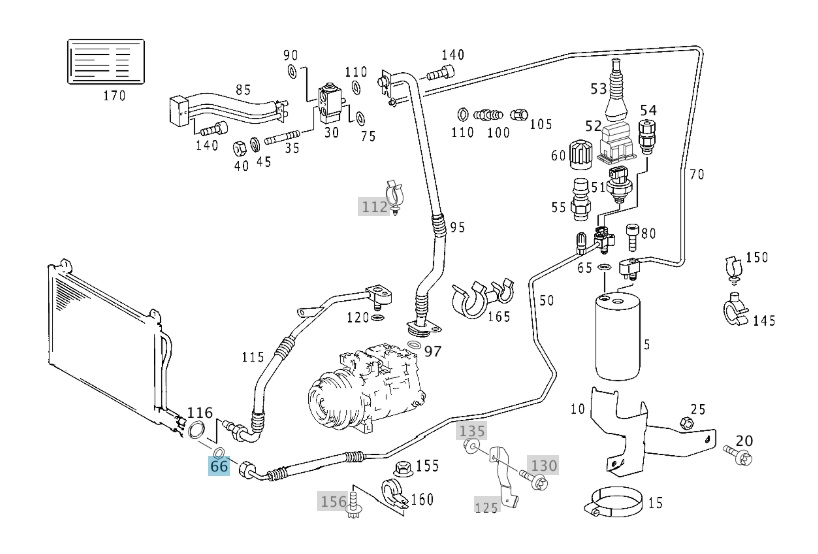

901 830 22 15
A/C Line - Condenser to Receiver Drier 2002-2006
Includes high pressure service valve, sight glass, seal rings and pressure switch.
901 830 59 15-AFT
A/C Line - Expansion Valve to Compressor - Aftermarket 2002-2006
Service valve, on the suction side, is included as part of the line.
This valve is brazed on to the line and is not replaceable as a separate part.
901 830 58 15
A/C Pipe Line - Genuine Mercedes 2002-2006
This unit is all aluminum pipe, no rubber hose.

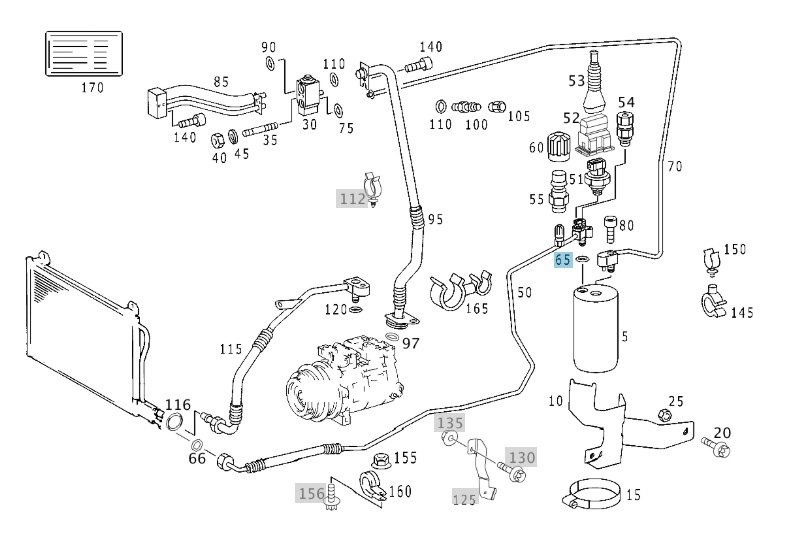

220 830 00 83
A/C Receiver Drier 2002-2006
This unit should be replaced any time that the A/C system is opened to the atmosphere. Acts as both a filter and a moisture remover.
002 830 54 84
A/C Service Valve - Pressure Side 2002-2018
This is the pressure valve or high side.
13 x 990
Auxiliary A/C V-Belt 2002-2006
This V-belt is only for 2002-2006 Sprinters with auxiliary (Rear) A/C
116 130 04 60
Auxiliary A/C V-Belt Pulley 2002-2006
1 required - Only for vehicles with second (rear) A/C compressor
Also available with the cast iron arm..... See below
220 830 07 72-FEBI
Evaporator Temperature Sensor - FEBI 2002-2024
Located in evaporator case of all Sprinters and Metris.
220 830 07 72-MAHLE
Evaporator Temperature Sensor - OEM 2002-2024
Located in evaporator case of all Sprinters and Metris.
Mahle Behr is the OEM Supplier to Mercedes for this part.
Sprinter A/C O-Ring Kit
Sprinter A/C O-Ring Kit 2002-2020
This O-Ring kit contains over 20 seals for the Sprinter air conditioning system.
For 2500 and 3500 models.
MT3012
Ultra PAG 46 Oil for R12 and R134a Systems
Premium Double End Capped PAG Oil for your A/C System.
Anytime when replacing a major A/C component such as a compressor, condenser, evaporator, etc. or when evacuating and draining the system, you must replace the oil.
Follow the manufacturer specification for oil amounts per component.
