000 860 08 62
Check Valve - Windshield Washer System 2002-2018
Located at top of firewall, common source of leakage. |
|
|
|
|
901 820 00 01

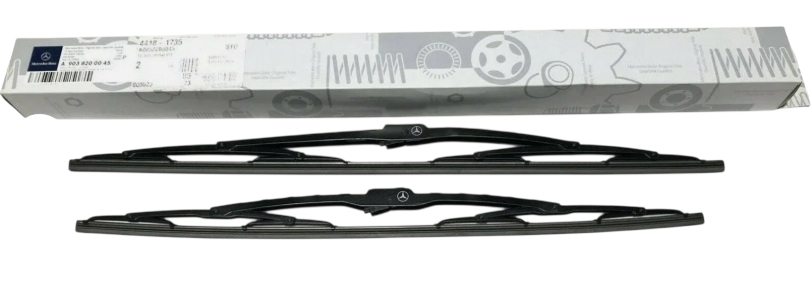

Front Wiper Blade Set 2002-2006
Set of both Left and Right wiper blade assemblies.
24" for Driver's side and 22" for Passenger's side.
|
|
|
|
|
901 820 00 81-MB
Front Wiper Linkage w/ Motor - Genuine Mercedes 2002-2006
Complete assembly, with motor.
This is an original Mercedes factory unit.
The linkage itself is NOT available as a separate unit, without the motor. |
|
|
|
|
901 820 00 44
Left Wiper Arm 2002-2006
Left or Driver Side.
Washer spray jet and hose are included with the arm. |
|
|
|
|
001 820 15 45-VALEO
Left Wiper Blade Assembly OEM 2002-2006
Driver side (Left)
The Valeo Ultimate Traditional wiper blade is the OEM, same as sold at Mercedes Dealer. |
|
|
|
|
901 820 01 44
Right Wiper Arm 2002-2006
Only for Right or Passenger's side of vehicle.
Washer spray jet and hose are included with the arm. |
|
|
|
|
001 820 16 45-VALEO
Right Wiper Blade Assembly OEM 2002-2006
Passenger side (Right)
The Valeo Ultimate Traditional wiper blade is the OEM, same as sold at Mercedes Dealer.
|
|
|
|
|
010 997 89 82
Washer Hose - Per Meter 2002-2018
Original hose with criss-cross nylon webbing, sold and priced in one meter increments (about 39 1/2 inches).
|
|
|
|
|
631 869 00 24
Washer Hose Connector 2002 & LATER
Washer hose connection where hose passes thru the body sheet metal.
|
|
|
|
|
000 860 48 26
Washer Pump - Version B 2002-2006
Three electrical pins with round plug connector and two hose connections.
This pump also has a built-in level sensor.
|
|
|
|
|
638 869 01 98-MB
Washer Pump Grommet - 2002 & LATER
Seals washer pump to washer reservoir.
This is for the smaller 10mm hole. See the various grommets and plugs below for all different pump configurations.
|
|
|
|
|
000 860 33 26-OEM
Washer Pump Version - A 2002-2006
Small electric pump that fits into the recess on the side of washer reservoir. One single washer hose connection.
Electrical contacts are two flat spade connectors.
Continental is the OEM supplier to Mercedes for this part. |
|
|
|
|
000 860 33 26-AFT
Washer Pump Version-A 2002-2006
Small electric pump that fits into the recess on the side of washer reservoir. One single washer hose connection.
Electrical contacts are two flat spade connectors.
|
|
|
|
|
901 869 01 20
Washer Reservoir 2002-2006
Reservoir only, does not include cap or grommets. |
|
|
|
|
003 998 14 50
Washer Reservoir Plug - Large 2002 & LATER
Seals large hole (20 mm) in reservoir when not used for additional pump.
This plug is for the larger hole.
See smaller diameter plug and grommets, shown below.
|
|
|
|
|
123 987 05 44
Washer Reservoir Plug - Small 2002-2018
Seals small hole in reservoir when not used for additional pump.
This plug is for the smaller hole (10mm diameter).
See 20mm plug below, along with 10mm and 20mm grommets.
|
|
|
|
|
000 860 15 47-BOSCH
Washer Spray Jet - Left or Right BOSCH 2002-2006
Fits Left or Right. Three small spray heads are in the block.
The small hose is not available.
If you are purchasing new wiper arms, you will not need this item, as they are furnished with the new arms.
|
|
|
|
|
000 860 15 47-MB
Washer Spray Jet - Left or Right Genuine Mercedes 2002-2006
Fits Left or Right. There are three small spray heads are in the block.
The small hose is not available.
If you are purchasing new wiper arms, you will not need this item, as they are furnished with the new arms.
|
|
|
|
|
|
|
|
