000 500 71 93
Auxiliary Fan Assembly 2002-2006
Located in front of the A/C condenser in front of the radiator.
Often called the A/C condenser fan. |
|
|
|
|
Q 6 88 0187-Zerex
BLUE Concentrate Coolant / Antifreeze - G48 OEM ZEREX
Zerex/Valvoline 1 Gallon (CONCENTRATE) container, to be diluted in equal parts with water for a 50/50 mixture.
To see the 50/50 prediluted Ready-to-Use Antifreeze/Coolant, CLICK HERE.
This Mercedes approved OEM G48 formula is HOAT or Hybrid Organic Acid Technology and meets Mercedes Spec 325.0 (concentrate) and 326.0 (pre-mix).
This is BLUE in color, low acid, low silicate and phosphate-free. Check the existing color of your coolant. DO NOT MIX WITH YELLOW COOLANT. |
|
|
|
|
Q 6 88 0187-ZEREX 50/50
BLUE Prediluted 50/50 Coolant / Antifreeze-G48 OEM ZEREX
Zerex / Valvoline 1 Gallon (50/50) Prediluted, Ready-to-Use Antifreeze/Coolant.
To see the concentrate Ready-to-Use Antifreeze/Coolant, CLICK HERE.
This Mercedes approved OEM G48 formula is HOAT or Hybrid Organic Acid Technology. This is BLUE in color, low acid, low silicate and phosphate-free. Check the existing color of your coolant. DO NOT MIX WITH YELLOW COOLANT.
This is the latest formula which replaces both Q1 03 0002 (yellow/gold) and Q 1 03 0004 (blue). If you have the old fluid (NOT BLUE), it will require a complete drain and flush, as the old fluid Q 1 03 0002 has been discontinued and superseded by this blue fluid.
Do NOT mix the two different colored fluids together, as they are not compatible.
|
|
|
|
|
129 545 02 24-HELLA
Coolant Level Sensor - OEM 2002-2006
Hella is the OEM supplier for this part.
Located in coolant reservoir on radiator. |
|
|
|
|
129 545 02 24-FEBI
Coolant Level Sensor 2002-2006
Located in coolant reservoir on radiator |
|
|
|
|
103 200 04 23
Fan Blade 2002-2006
Before replacing the fan clutch assembly or the fan clutch, you must inspect the fan blades very carefully for any chips, cracks or damage.
Any missing chunks or pieces will result in the fan being out of balance and will mean a very short life for any fan clutch, as it will quickly destroy the bearing in the center of the clutch. |
|
|
|
|
000 200 58 22
Fan Clutch 2002-2006
It is recommended that you closely inspect your fan blade when you replace the clutch. A damaged fan blade will cause excessive noise and premature fan clutch failure.
A fan blade with just one small missing section on the blade will cause the fan clutch bearing to wear out very quickly, due to the entire assembly being out of balance. Check it very carefully.
|
|
|
|
|
000 200 82 23-MB
Fan Clutch with Fan Blade - Genuine Mercedes 2002-2006
This is a Brand New Original Mercedes part for all 5 Cylinder engines.
IMPORTANT INSTALLATION INFO: Torque value is 33 ft/lbs or 45 Nm
Clean the mating surfaces and torque the center bolt properly. Lack of clearance in this area makes it difficult to gain access during installation. The radiator should be removed in order to do the job correctly. Failure to do so will allow the fan clutch to slip and freewheel on the pulley.
|
|
|
|
|

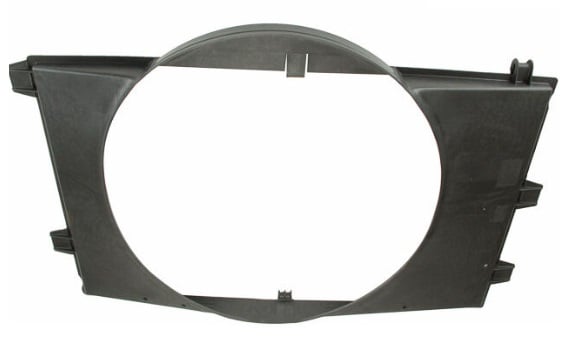

901 505 16 55-MB
Fan Shroud 2002-2006 Genuine Mercedes
This is a brand new original Mercedes part.
Fan shroud that houses the fan assembly and clips onto the radiator.
Special Order Part - Contact Us
|
|
|
|
|

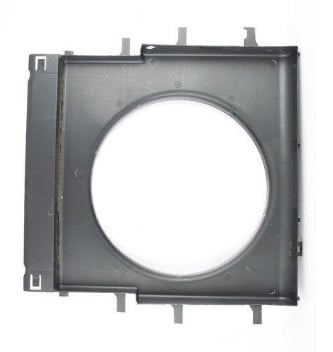

906 505 01 55-MB
Fan Shroud 2007-2013 Genuine Mercedes
This is a brand new original Mercedes part.
Fan shroud that houses the fan assembly and clips onto the radiator.
Special Order Part - Contact Us
|
|
|
|
|
638 504 02 12
Lower Radiator Mount 2002-2006
2 are required and these are sold individually.
Order 2, if replacing both sides.
Radiator fits into one of these rubber mounts on each side. |
|
|
|
|
000 501 62 15-FEBI
Radiator Cap - FEBI 2002-2006
Expansion tank is built into the radiator on the T1N Sprinters, as opposed to being a separate unit.
Also known as the radiator cap (Bayonet Type).
|
|
|
|
|

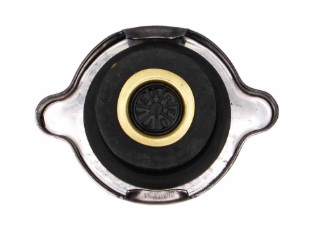

000 501 62 15-REIN
Radiator Cap - OEM 2002-2006
Made in Germany.
Expansion tank is built into the radiator on the T1N Sprinters, as opposed to being a separate unit.
Also known as the radiator cap (Bayonet Type).
|
|
|
|
|
000 500 01 85
Radiator Drain Plug 2002-2006
Small red plastic plug at bottom of radiator
|
|
|
|
|
901 500 38 00-NISSENS
T1N Radiator - NISSENS 2002-2006
This radiator is manufactured by Nissens in Denmark. |
|
|
|
|
901 500 38 00-BEHRMAHLE
T1N Radiator - OEM 2002-2006
This premium aluminum core radiator is manufactured by Behr Mahle, OEM supplier to Mercedes Benz for this part.
The Behr Mahle replacement radiator guarantees the same quality fit and performance as the OE radiator it replaces. The radiator core is manufactured using high quality anti corrosive aluminum and fiber glass-reinforced polyamide coolant tanks that are highly resistant to cracking and deformation. |
|
|
|
|
901 504 00 46
Upper Radiator Clamp 2002-20062 Required - Sold Individually (Order 2 if replacing both sides)
Fits over the upper rubber mount on each side of radiator.
See both upper and lower rubber radiator mounts, shown below.
|
|
|
|
|
901 504 01 12
Upper Radiator Mount 2002-2006
2 are required and these are sold individually.
Order 2 if replacing both sides.
This is a rubber mount. located under the clamp on each side of radiator
See clamp and the lower mounts, shown below.
|
|
|
