55 8781 906
2007 & LATER 3.0L V6 - Turbocharger Actuator
These are made by Rotomaster and are only for 2007 - 2018 V6 turbochargers.
This actuator moves the variable vane mechanism on the turbocharger.
Before installing a new actuator, insure that the turbocharger vane linkage moves freely. Failure to do so will cause the new actuator to quickly burn out. (NO WARRANTY REPLACEMENT FOR THIS). |
|
|
|
|
906 598 01 82-AFT
2010 & LATER 3.0L V6 Charge Air Hose Kit
Includes the two charge air hoses used on both sides of the intercooler. The hose from the turbo to the intercooler and the hose from the intercooler to the engine.
If you are ordering for a 2019+ VS30 model, this hose kit only fits with this Intercooler. Check the part number on your vehicle. If you still do not know which hose you need, email us your VIN number for verification.
* Free USA Shipping Included *
|
|
|
|
|
642 090 89 80
2010 & LATER 3.0L V6 Turbocharger - NEW ORIGINAL
Only for BlueTec Engines, 2010 and Later (Not for models 2009 and Earlier)
This is a Brand New Garrett Turbocharger. This version is the stock replacement unit and has a cast compressor wheel. It is a complete unit and includes the electronic actuator. For the upgraded billet version, CLICK HERE.
SEE REINZOADD PRODUCT BELOW...
THE ELECTRONIC BOX (TURBO VANE ACTUATOR) IS NOW AVAILABLE AS A SEPARATE PART, CLICK HERE. |
|
|
|
|
642 090 89 80-BILLET
2010 & LATER 3.0L V6 Turbocharger Upgraded Billet - NEW ORIGINAL
Only for BlueTec Engines, 2010 and Later - Not for models 2009 and Earlier.
This is a Brand New Garrett Turbocharger. It is a complete unit and includes the electronic actuator. This version is an upgraded replacement, and has a Machined from Stock compressor wheel for a longer life cycle.
SEE REINZOADD PRODUCT BELOW...
|
|
|
|
|
906 598 01 82-MB
2010-2019 3.0L V6 Genuine Mercedes - Charge Air Hose Kit
Includes the two charge air hoses used on both sides of the intercooler. The hose from the turbo to the intercooler and the hose from the intercooler to the engine.
IF you are ordering for a 2019+ VS30 model, this hose kit only fits with this Intercooler. Check the part number on your vehicle. If you still do not know which hose you need, email us your VIN number for verification.
* Free USA Shipping Included * |
|
|
|
|
642 090 05 00
Charge Air Elbow 2010 & LaterConnects turbocharger output to turbo resonator
Only for 3.0L V6 engines 2010 and later
|
|
|
|
|
906 528 26 82-AFT
Charge Air Hose - Intercooler to Engine 3.0L V6 Diesel 2010 & LATER
Located on the Passenger's side of the engine - This is the shorter of the two charge-air hoses. Seal rings are provided with hose.
This hose will fit all NCV3 model years and early VS30 models. IF you are ordering for a 2019 & Later models, carefully check the current intercooler and intercooler hose that you have to order the correct hose. This hose fits the passenger side for 2019 & Later models with the 907 501 17 00 Intercooler, which can be found here.
If you still do not know which hose you need, email us your VIN number for verification.
|
|
|
|
|
906 528 25 82-AFT
Charge Air Hose - Turbocharger to Intercooler 3.0L V6 Diesel 2010 & LATER
This hose is located on Driver's side.
Fits both the 2007-2018 NCV3 and the 2019-2022 V6 with the OM642 engine configuration.
This hose is also available as a Kit of two, for both sides with Free USA Shipping, see below. |
|
|
|
|
906 528 25 82-VAICO
Charge Air Hose - Turbocharger to Intercooler 3.0L V6 Diesel 2010 & LATER
This hose is located on Driver's side.
Fits both the 2007-2018 NCV3 and the 2019-2022 V6 with the OM642 engine configuration.
This hose is also available as a Kit of two, for both sides with Free USA Shipping, see below. |
|
|
|
|
028 997 45 48
Charge Air Hose Outside Seal Ring 3.0L V6 Diesel 2007 & LATER
Located on the charge air hose and can be on both the input and output sides of the intercooler.
This green seal ring is fitted to the OUTSIDE of the hose end.
These are used on both the BlueTec and non-BlueTec engines.
|
|
|
|
|
642 090 59 37
Charge Air Intake Pipe 3.0L V6 2007 & LATER
Charge air intake line, upper end of this pipe joins the output side of the turbo resonator.
|
|
|
|
|
642 096 06 45
Charge Air Line Bracket #2-3.0L V6 Diesel 2007 & LATEROften cracks from engine vibration.
There are numerous brackets and they possibly changed after 2010. It's suggested you get a part# off the old bracket or carefully compare to the picture before ordering. The part# for this is 642 096 06 45 |
|
|
|
|
642 098 04 39
Charge Air Line Bracket #3 3.0L V6 Diesel 2007 & LATERBracket from turbo resonator to the aluminum charge air pipe.
This is the large, U-shaped steel bracket with a single bolt hole.
|
|
|
|
|
642 096 15 45
Charge Air Line Bracket #4 3.0L V6 Diesel 2007 & LATER
Bracket at aluminum charge air pipe.
There are numerous brackets on the 3.0L V6 engine and they possibly may have changed after 2010. |
|
|
|
|
642 016 03 38
Charge Air Line Bracket #5 3.0L V6 Diesel 2007 & LATERThere are numerous brackets and possibly changed after 2010.
It's suggested you get a part# off the old bracket or carefully compare to the picture before ordering.
The part # for this is 642 016 03 38 |
|
|
|
|
906 490 00 42
DPF Band Clamp 3.0L V6 2010 & LATERInterfaces with the DPF bracket, shown below
|
|
|
|
|
906 995 02 02
Exhaust Clamp-70MM 3.0L V6 2010 & LATER
This clamp is for a 70MM OD tube
Located at output side of catalytic converter to tailpipe
|
|
|
|
|
642 141 01 00
Exhaust Y-Pipe Collector at Turbo 2007 & LATER
Cast iron Y-shaped collector pipe/manifold, from turbocharger to the exhaust manifolds.
Gaskets for this unit are shown below.
|
|
|
|
|
906 598 02 82-MB
Genuine Mercedes - 2019+ 3.0L V6 Charge Air Hose Kit ***FREE USA SHIPPING***
Includes the two charge air hoses used on both sides of the intercooler. The hose from the turbo to the intercooler and the hose from the intercooler to the engine.
This hose kit only fits with this Intercooler. Check the part number on your vehicle.
|
|
|
|
|
907 528 00 00-MB
Genuine Mercedes - 2019-2022 3.0L V6 Charge Air Hose Kit ***FREE USA SHIPPING***
Includes the two charge air hoses used on both sides of the intercooler. The hose from the turbo to the intercooler and the hose from the intercooler to the engine.
Only for intercoolers with part number 907 501 17 00. |
|
|
|
|
906 528 26 82-MB
Genuine Mercedes - Charge Air Hose-Intercooler to Engine3.0L V6 Diesel 2010 & LATER
Located on the Passenger's side of the engine - This is the shorter of the two charge air hoses. Seal rings are provided with hose.
This hose will fit all NCV3 model years and early VS30 models. IF you are ordering for a 2019 & Later models, carefully check the current intercooler and intercooler hose that you have to order the correct hose. This hose fits the passenger side for 2019 & Later models with the 907 501 17 00 Intercooler, which can be found here.
If you still do not know which hose you need, email us your VIN number for verification. |
|
|
|
|
906 528 25 82-MB
Genuine Mercedes - Charge Air Hose-Turbocharger to Intercooler 3.0L V6 Diesel 2010 & LATER
This Genuine Mercedes hose is located on Driver's side.
This hose fits both the 2007-2018 NCV3 and the 2019-2022 V6 with the OM642 engine configuration.
To see the other related hose for the opposite side of the intercooler, CLICK HERE.
This hose is also available as a set of two, for both sides, see below. Free USA shipping on the two hose kit. |
|
|
|
|
907 528 22 00-MB
Genuine Mercedes - Intercooler Output Hose Sprinter 3.0L V6 2019+
This hose fits the passenger side for 2019+ Models with the 907 501 17 00 Intercooler, which can be found here.
Carefully check the current intercooler and intercooler hose that you have to order the correct hose. If you still do not know which hose you need, email us your VIN number for verification.
|
|
|
|
|

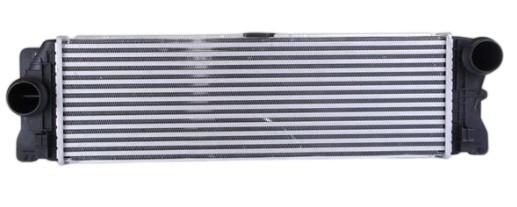

907 501 17 00-MB
Genuine Mercedes - Intercooler Sprinter 3.0L V6 2019 & Later
|
|
|
|
|
906 501 02 01-BEHR
Intercooler 2010-2018 V6 & 4 CYL 2014-2016
|
|
|
|
|

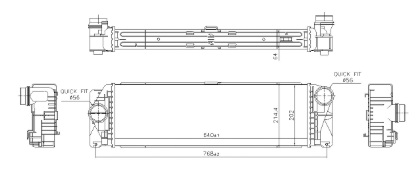

906 501 02 01-NISSENS
Intercooler 2010-2018 V6 & 4 CYL 2014-2016 - 96526
|
|
|
|
|
000 990 67 03
M8 X 20 MM BOLT - COPPER PLATED TORX HEAD 3.0 V6 Diesel 2007 & LATER
3 Required - Turbocharger Mounting Bolt to Turbocharger Elbow |
|
|
|
|
000 990 68 03
M8 X 25MM BOLT - COPPER PLATED TORX HEAD 3.0 V6 Diesel 2007 & LATER
6 Required - Turbocharger Mounting Bolt |
|
|
|
|
274 096 01 00
Turbo Oil Return Line Gasket-Sprinter 2019+ 4 CYL & Metris 2016+Metal gasket, for oil return line to crankcase, 1 required
|
|
|
|
|
271 187 00 80
Turbo Oil Return Line Grommet-Sprinter 2.0L & Metris 2016+Rubber grommet, for oil return line to crankcase, 1 required
|
|
|
|
|
642 140 00 00
Turbo Resonator 3.0L V6 Diesel 2007 & LATER
Only for OM642 3.0L V6 Turbodiesel engine
This is the most current revision of this item, which supersedes four earlier part numbers, all of which have been discontinued by Mercedes. This unit is located between the output side of the turbocharger and the aluminum charge air intake pipe.
The seal and o-ring on each end of this unit (as pictured below) are provided with the new resonator.
|
|
|
|
|
642 016 10 38
Turbo Resonator Bracket 3.0L V6 Diesel 2007 & LATERAluminum bracket that bolts directly to the turbo resonator.
There are numerous brackets and they possibly changed after 2010. It's suggested you get a part# off the old bracket or carefully compare to the picture before ordering.
The part# for this is 642 016 10 38. |
|
|
|
|
019 997 75 45
Turbo Resonator O Ring Seal 3.0L V6 2007 & LATER
This O Ring is located at groove on the turbo resonator. Note that this is black in color.
IF YOU ARE ORDERING A NEW RESONATOR, YOU WILL NOT NEED TO ORDER THIS SEAL, AS IT IS FURNISHED WITH THE RESONATOR. |
|
|
|
|
642 094 00 51
Turbo Resonator Seal 3.0L V6 Diesel 2007 & LATER
Black silicone seal found at end of turbo resonator.
IF YOU ARE ORDERING A NEW TURBO RESONATOR, YOU WILL NOT NEED TO ORDER THIS, AS IT IS FURNISHED WITH THE NEW RESONATOR. |
|
|
|
|
55 9976 010
Turbocharger Additive - REINZOADD 2002 & LATER
To be used when installing any new turbocharger.
Squirt this tube into the oil feed inlet hole in the center cartridge to prevent damage due to oil starvation during initial start-up.
|
|
|
|
|
000 997 38 07
Turbocharger Coolant Line O-Ring 2019+ 2.0L 4 CYL & Metris
Turbocharger cooling line seal ring.
2 required - one for feed line and one for the return line.
|
|
|
|
|
642 142 04 81
Turbocharger Gasket Y-Pipe Collector 2007 & LATER 3.0L V6
Located between Turbo and the cast iron Y-shaped connector that links the two exhaust manifolds together.
|
|
|
|
|
642 142 07 81
Turbocharger Gasket-Oil Feed & Drain 3.0L V6 2007 & LATER
Bottom of turbocharger to turbocharger support stand
|
|
|
|
|
906 528 22 24
Turbocharger Intake Hose / Duct 3.0 V6 Diesel 2007 & LATER
Links the air filter housing and MAF (mass air flow) sensor to the turbocharger intake, directly in the center of the aluminum turbo housing.
The black seal ring at the turbocharger end is furnished with this hose.
If your old hose has the orange seal ring at the end, this hose will replace it.
This pipe/hose replaces both 906 528 02 24 and 906 528 15 24.
|
|
|
|
|
274 090 41 00
Turbocharger NEW ORIGINAL 2019+ SPRINTER 4 CYL
New, original Mercedes Benz turbocharger assembly, complete with the exhaust manifold.
This is the exact identical new turbocharger sold at a Mercedes dealership.
SEE REINZOADD PRODUCT BELOW
|
|
|
|
|
014 997 64 45
Turbocharger O Ring Seal-3.0L V6 2007 & LATER
This o-ring is located at the output end of the turbocharger (on the compressor side) located between turbocharger and aluminum charge air elbow.
Note that these seals are GREEN in color, signifying that they are made from VITON, a long lasting, heat resistant compound. The old seals were black neoprene and failed relatively quickly. |
|
|
|
|
000 094 00 51
Turbocharger Seal Ring Mid 2010 & LATER
Manufactured by Elring in Germany. They are the OEM supplier to Mercedes. This is the identical part as those sold at a franchise dealer.
Located at the center of the compressor side (aluminum section) on the end of the turbocharger. Resides inside the large diameter plastic intake pipe.
A clamp surrounds the end of this plastic hose/pipe. This clamp should be very snug to avoid any boosted air leakage at this point. |
|
|
|
|
642 096 08 45
Turbocharger Support Bracket-3.0L V6 Diesel 2007 & LATER
Often cracks from engine vibration.
|
|
|
|
|
642 096 01 00
Turbocharger Support Stand/Base 2007 & LATER 3.0 V6
This cast iron pedestal sits under the 3.0L V6 turbocharger, and houses the very critical turbocharger oil feed and drain lines.
This is the second revision of this part, replacing both 642 096 03 45 and 642 096 14 45. If you have either of these two stands on your engine, replace it with the current one....642 096 17 45.
|
|
|
|
|
642 142 06 81
Turbocharger Support Stand/Base Gasket 2007 & LATER 3.0L V6
Bottom of turbocharger support stand to engine.
|
|
|
|
|
219 492 00 80
Turbocharger to Exhaust Pipe Gasket 2007 & LATER 3.0L V6From turbocharger output to exhaust header pipe
|
|
|
