SPRINTER GEN. III 2019-2024 (VS30)

Engine Mechanical Components

Internal & External Engine Components

639 528 00 71 Air Filter Housing Screw V6 & 4 Cyl

For air filter housing cover, fits all V6 and 4 cylinder models.

$2.82

642 091 01 50 Ball Socket 3.0L V6 Diesel 2007 & LATER

Ball socket insert for linkage to intake manifold inlet (swirl) actuator.

$3.84

642 090 59 37 Charge Air Intake Pipe 3.0L V6 2007 & LATER

Charge air intake line, upper end of this pipe joins the output side of the turbo resonator.

$125.84

642 038 35 71 Connecting Rod Bolt 3.0 V6 Diesel 2007 & LATER

Twelve required (2 bolts per connecting rod), sold individually

$7.25

Crankshaft Pulley/Vibration Damper 3.0 V6 2007-2014

642 030 06 03 Crankshaft Pulley/Vibration Damper 3.0 V6 2007 & LATER

Only for OM642 Turbodiesel engine, AKA HARMONIC BALANCER

Standard pulley/damper for models with or without roof A/C (Dual A/C compressors)

ALWAYS REPLACE THE CRANKSHAFT BOLT AT THE SAME TIME AS THE PULLEY

$287.92

642 010 18 20 Cylinder Head Gasket Set Sprinter 3.0L V6 2007 & LATER

Complete upper gasket set including both head gasket sets and all other gaskets and seals associated with both cylinder heads.

Manufactured by Elring or Reinz. Both are OEM gasket suppliers to Mercedes.

$236.65

003 990 25 22 Cylinder Headbolt Set - 204mm 3.0L V6 Diesel 2007 & LATER

M8, 204mm (approx 8 inches long) cylinder head bolt, 8 per cylinder head. Order two sets if doing both heads.

Sold as a set of 8.

$42.71

642 010 08 67 Engine Cover 3.0L V6 2007 & LATER

Plastic cover on top of V6 Sprinter engine. Metal heat shield on the underside is included.

$245.71

642 094 07 85 Engine Cover Grommets - V6 and 4Cyl

Plastic engine cover grommets, fits the 3.0 V6 and the 2.1 4cyl engines

$5.00

Engine Mount-3.0 V6 Diesel Engine 2007-2014

906 241 17 13 Engine Mount - 3.0 V6 Diesel Engine 2007 & LATER

2 required, Fits both Left and Right side

Sold in increments of 1

Used only on V6 turbodiesel engines

$77.11

642 050 05 27 Exhaust Valve-3.0L V6 Diesel 2007 & LATER

Exhaust valve sold individually, 12 required for OM642 engine

$14.20

642 030 05 12 Flex Plate/Ring Gear-3.0L V6 Diesel 2007 & LATER

Located between end of crankshaft & torque converter (bolts to face of torque converter)
AKA starter ring gear

$447.82

000000-005724 Front Crankshaft Bolt 3.0L V6 2007 & LATER

Located in center of crankshaft pulley. Secures pulley to front of crankshaft.

$4.71

023 997 84 47-ELRING Front Crankshaft Seal 2.7L & 3.0L V6 2002 & LATER

Fits all Sprinter 2.7L I-5 and V6 diesel engines

$9.97

000 997 19 08 Front Crankshaft Seal Sprinter 2019+ & Metris 2016+

Only for 4 CYL gasoline engines

$11.84

604 990 00 40 Front Crankshaft Washer 2002 & LATER

Located at front crankshaft pulley between the bolt and the pulley.

Used on all five cylinder and V6 engines

$7.73

642 010 00 33 Front Timing Cover 2007 & LATER 3.0L V6 Diesel

Covers the front of the engine, houses the timing chain and guides. Includes the front crankshaft seal.

$248.91

023 997 84 47-MB Genuine Mercedes - Front Crankshaft Seal 2.7L & 3.0 V6 2002 & LATER

Fits all Sprinter 2.7L I-5 and V6 diesel engines

$11.34

000 010 16 85-MB Genuine Mercedes Oil Fill Cap - SPRINTER 2002 & LATER + METRIS 2016+

Oil fill cap in valve cover or at end on extension tube on later V6 engines

$11.84

642 050 00 80 Hydraulic Valve Lifter/Cam Follower 3.0L V6 2007 & LATER

Cam follower or valve lifter
4 per cylinder or 24 total, per engine
Sold in increments of 1 each

$9.62

642 098 00 37 Intake Pipe Socket 3.0L V6 DIESEL - 2007 & LATER

Furnished with both o-rings, which are not available as a separate item.

$9.97

Cylinder Head Gasket-LEFT 3.0 V6 Diesel 2007-2014

642 016 51 20 Left Cylinder Head Gasket 3.0 V6 Diesel 2007 & LATER

Head gasket for the left or driver's side cylinder bank

$64.91

642 010 05 21 Left Cylinder Head WITH VALVES & CAMS 3.0 V6 2007 & LATER

Only for left (driver's) side of engine.

This is a cylinder head which has been removed from an engine with just a few hours of run time.

Cylinder head include all valves, springs,guides, lifters, both camshafts and the valve cover. The total retail cost of this unit would be $3524

at a franchise Mercedes dealership.

A Mercedes dealer sells a bare cylinder head for $2190, with no valves and for $2600 with all of the valves installed, but without camshafts.

but, no camshafts ($462 each x 2) are included.

$1,350.00

642 010 14 28 Lower Engine Oil Pan 2007 & LATER 3.0L V6

Fits the 3.0 Liter V6 diesel

This pan is cast aluminum, silver in color.

There is no gasket used for this oil pan. Use liquid sealant.

$149.71

642 033 19 01-25mm O/S Main Bearing Set-1ST RPR 75.75mm 3.0L V6 Diesel 2007 & LATER

1st Repair Size .25mm oversize OR 75.75mm, for undersize ground crankshaft

Complete set of all four bearing shell pairs (8 shells in total)

These bearing sets are available in two sizes. Standard and first repair.

$189.77

642 033 19 01-STD SIZE Main Bearing Set-STD 76mm 3.0L V6 Diesel 2007 & LATER

Complete set of all four bearing shell pairs in STANDARD SIZE 76.00mm (8 shells in total)

These bearing sets are available in two sizes. Standard and first repair.

$166.00

642 011 02 71 MAIN CAP BOLT- 3.0L V6 Diesel 2007 & LATER

13 REQUIRED

$5.00

642 011 03 71 MAIN CAP BOLT- 3.0L V6 Diesel 2007 & LATER

3 REQUIRED

$7.50

910105-010011 MAIN CAP BOLT- 3.0L V6 Diesel 2007 & LATER

8 REQUIRED

$3.00

642 180 99 00 Oil Cooler Change Gasket / Seal Kit 2007 & LATER 3.0L V6 Diesel

(1)

All necessary seals and gaskets required to change out the engine oil cooler.

All items in this kit are a combination of Genuine Mercedes and OEM supplied gaskets from Elring and Reinz.

A few other gaskets and seal rings that you may want to consider changing are listed below.

$129.97

000 010 16 85-AFT Oil Fill Cap - SPRINTER 2002 & LATER + METRIS 2016+

Oil fill cap in valve cover or at end on extension tube on later V6 engines

$8.71

000 993 69 20 Oil Pump Chain Tensioning Spring 2007 & LATER 3.0L V6

Tensioning spring for oil pump drive chain slide rail

$6.34

642 181 00 80 Oil Pump Seal-2007 & LATER 3.0L V6

Seal between engine block and oil pump

$3.88

642 030 00 24 Piston Ring Set 3.0L V6 Diesel 2007 & LATER

Standard size (83.00mm bore) piston ring set for one piston. (Oversize rings are not available)

Sold as an individual set for one piston, six sets required per engine.

$47.71

642 030 12 17 54-.50mm O/S Piston-1ST RPR 83.50mm, RIGHT SIDE 3.0L V6 2007 & LATER

1st repair size piston 83.50mm for 3.0L V6 Diesel engine, RIGHT CYLINDER BANK ONLY
Furnished with rings, pin and pin retainer clips.
Sold individually, three required.

Also available in Standard size.....See below

$194.00

642 030 13 18 54-.50mm O/S Piston-1ST RPR 83.50mm, LEFT SIDE 3.0L V6 2007 & LATER

1st repair size piston 83.50mm for 3.0L V6 Diesel engine, LEFT CYLINDER BANK ONLY
Furnished with rings, pin and pin retainer clips.
Sold individually, three required.

Also available in Standard size.....See below

$194.00

642 030 15 17 54-STD Piston-STANDARD 83.00mm, LEFT SIDE 3.0L V6 2007 & LATER

+++ CURRENTLY SOLD OUT +++

Standard size piston (83.00mm) for 3.0L V6 Diesel engine, LEFT CYLINDER BANK ONLY.
Furnished with rings, pin and 2 pin retainer clips. Sold individually, Three required.

Also available in 1st repair, .25 mm O/S - See Below.

642 030 12 17 54-STD Piston-STANDARD 83.00mm, RIGHT SIDE 3.0L V6 2007 & LATER

Standard size (83.00mm) piston for 3.0L V6 Diesel engine, RIGHT CYLINDER BANK ONLY

Furnished with rings, pin and pin retainer clips. Sold individually, THREE required.

Also available is 1st repair, .25 mm O/S..... See below.

642 010 02 14 Rear Crankshaft Seal & Housing 3.0 V6 2007 & LATER

Rear crank seal, complete with housing.

This product is from Elring, an original equipment manufacturer for Mercedes.

The rear seal is also available by itself.....see below.

$39.69

642 010 02 14-SEAL Rear Crankshaft Seal 3.0 V6 2007 & LATER

Rear crank seal only, without housing.

Also available with the housing, see below.

$20.32

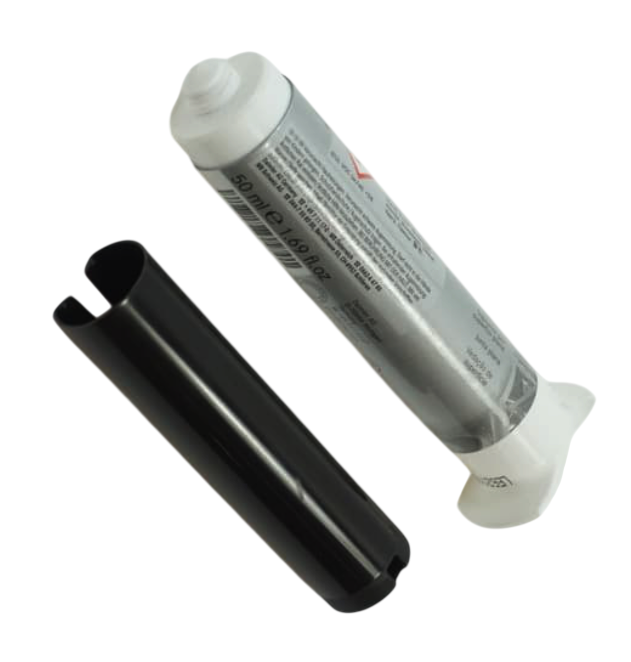

D 176 404 A2 REINZOSIL Sealing Compound - All Models

Reinzosil compound 70 ml tube

Used for engine oil pans (upper or lower), front timing covers, valve covers, front sealing flange, etc. Any application where a seal is necessary but, there is no fiber, rubber, nor metal gasket.

Resistant to mineral and synthetic oils, gasoline, diesel, lubricants, greases, sunlight, ozone, water, and seawater. (Anthracite Colored) Temperature Range: -50 deg. C to +250 deg. C (briefly to +300 deg. C)

$8.78

Cylinder Head Gasket-RIGHT 3.0 V6 Diesel 2007-2014

642 016 52 20 Right Cylinder Head Gasket 3.0 V6 Diesel 2007 & LATER

Contains head gasket for the right or passenger's side cylinder bank

$64.91

642 050 01 33 Rocker Arm 3.0L V6 Diesel 2007 & LATER

Sold individually, 24 per engine

$12.88

642 030 02 60-.25mm O/S Rod Bearing Set-1ST RPR 63.75mm 3.0L V6 Diesel 2007 & LATER

1st repair size (.25mm oversize or 63.75mm) For undersize ground crankshaft
Complete set of all six pair of bearing shells (12 shells total).

Dealer sells these as individual pairs. We sell them in a complete set of six pairs.

These bearing sets are available in two sizes. Standard and first repair.

$211.93
