Breather Hose 2002-2006
Located at oil separator on top of valve cover.
Also available as part of a complete assembly, see below.
Crankcase Vent Valve Heater Grommet 2004 & LATER
Grommet for two pin electrical sensor breather tube.
Or see below for the sensor with the grommet included.
EGR Change Over Valve Electro-Vacuum valve located in the EGR circuit on all Sprinter diesel engines. On the V6 it is located behind passenger headlight.
EGR Valve 2002-2003
Only for OM 612 engine (2002-2003 model years)
This is the exact same new OEM Wahler EGR valve that is sold at a Mercedes, Dodge or Freightliner dealer.
Other than the gasket, there are no parts available for this valve.
EGR Valve Gasket 2002-2003 These are the OEM metal gaskets, made by Elring
EGR Valve Gasket 2004-2006 Metal teflon coated seal..
EGR Valve-NEW 2004-2006
For OM 647 engine
This is a water cooled EGR valve and it is only for 2004-2006 engines.
This EGR valve is supplied with the gasket
Exhaust Clamp Bolt m8 X 40MM 2002-2006 & 2014-2016 2.1L 4 CYL
This bolt is used on 2002-2006 5 CYL engines, as well as 2014+ 2.1L 4 CYL engines
Also used as attachment screws (6 required) for updated oil cooler/oil filter housing
Exhaust Clamp-60MM 2007-2018
This clamp is for a 60MM OD tube (approx 70MM expanded)
This clamp is used at the INPUT side of the 2007-2009 3.0L V6 DPF
Exhaust Clamping Sleeve-60MM 2007-2009 3.0L V6
Located at the joint between OUTPUT end of the DPF and the exhaust pipe.
This exhaust clamp is for a 60MM OD tube /pipe.
It is a clamping sleeve joint, with a clamp at each end of the sleeve.
Exhaust/DPF Clamp-65MM 2014-2016 4 CYL
Located at the joint at the OUTPUT end of the DPF, where it joints the pipe.
This clamp is for a 65MM OD tube (approx 76MM expanded)
This clamp is also used on 2014+ 2.1L 4 CYL engines
M8 X 20 MM BOLT-ZINC PLATED TORX HEAD
M8 X 20MM
Used on all SPRINTERS
Oil Separator Gasket/Seal 2004-2006 Located between valve cover and oil separator.
If you are ordering a new oil separator, you will not NEED this, as it is furnished with the new part.
Oil Separator/PCV 2002-2003 Sprinter Located at top of valve cover
Breather hose that fits on valve is shown below.....
Oxygen Sensor 2004-2009 2.7L + 3.0L Diesel & 3.5L Gas Engines Fits all 2.7 & 3.0 liter Diesel Engines thru end of 2009
Also used for left front position on 3.5 liter V6 Gas Engine
NOT for BLUETEC ENGINES, 2010 and later

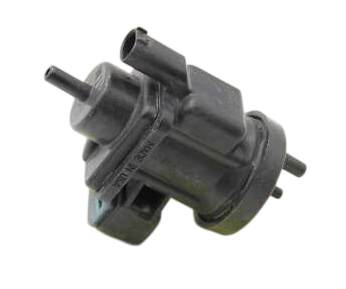

Pressure Converter Valve 2002-2003 This part appears to be known by many names:
Pressure Regulator Valve, Vacuum Modulator Valve, Pressure Transducer or Change-Over Valve
Helpful link to diagnostics: http://www.mercedes.gen.in/mercedes-sprinter-turbo-limp-home-los-diagnosis-fault-finding/
Black polymer/plastic, with three vacuum connections and a two pin electrical plug.
Seal Ring-Turbocharger to Exhaust 2004-2006 5 CYL & 2014-2016 2.1L 4 CYL Located at joint between the turbocharger and the front pipe at the clamp area
This seal ring is used on 2004-2006 5 CYL engines, as well as 2014-2016 2.1L 4 CYL engines
Turbocharger Exhaust Clamp TYPE 2 2004-2006 & 2014-2016 2.1L 4 CYL
Located at the joint between the turbocharger and the exhaust header pipe on 2004-2006 5 CYL engines
and on the INPUT end of the DPF on 2004-2016 4 CYL engines.
This is the tapered design, which uses a thick sealing ring. (see below)
Compare to your original before ordering, as there are two different types for 5 CYL engines.
This clamp is used on 2004-2006 5 CYL engines,
as well as 2014-2016 2.1L 4 CYL (INPUT end of the DPF)
