000 995 99 06-MB
Clamp 50-70mm - Genuine Mercedes 2002-2006
Charge Air hoses connection to the intercooler - #60 on the diagram.
Also used on the hose attachment from fuel tank to filler neck - #260 on the diagram.
50-70mm. |
|
|
|
|
000 989 30 45 09
Diesel Fuel Additive - Genuine Mercedes 2002 & Later
Mercedes-Benz Genuine Diesel additive to prevent injector contamination.
• Keeps injectors free of residues and contamination and prevents them from sticking.
• Protects against injector wear.
• Lower fuel consumption and maximum engine performance.
Use Fill before refueling. Metering: contents are sufficient for 1 tankful or approx. 60l. Remove the screw cap; attach the screw-on spout. Pour the entire bottle contents into the tank filler neck.
Container type: 100 ml tin can with screw-on spout.
Application: Prevention of injector contamination on MB cars with diesel engines. |
|
|
|
|
612 092 00 01-MB
Diesel Fuel Filter - Genuine Mercedes 2002-2003
Only for 2002-2003 models with OM612 engines.
Moisture sensor mounts on filter at bottom.
|
|
|
|
|
612 092 00 01-HENGST
Diesel Fuel Filter - HENGST 2002-2003
Only for 2002-2003 models with OM612 engines.
Moisture sensor mounts on filter at bottom.
|
|
|
|
|
LM20208
Diesel Intake System Cleaner 2002 & LATER
For cleaning the entire intake system. Suitable only for use in diesel engines!
A high-tech mixture of cleaning agents for removing deposits and byproducts from the intake manifold and throttle body of diesel engines. Dissolves and removes deposits and contaminants such as oil, dirt, carbon residue, etc. Restores normal function of moving parts. Increases reliability in all diesel engines.
Safe with EGR and DPF systems. |
|
|
|
|
LM2005
Diesel Purge 2002 & LATER
Diesel Purge contains a mixture of agents with powerful cleaning properties. The special additives guarantee corrosion protection and increase ignition performance (Cetane number).
Used for all diesel engines to prevent and eliminate problems associated with uneven idling and partial load knocking. Quantity to be used for preventive and remedial use: 500 ml.
Preventive Use: Fill the fuel filter up with Diesel Purge when doing filter replacement, put the rest in tank. Add to diesel fuel according to the inspection intervals.
Remedial use: Un-clip the fuel pipe and immerse the end in the Diesel Purge. Close the fuel return pipe or feed that into the Diesel Purge. Start the engine and allow the engine to run at different speeds with the Diesel Purge unmixed. After the cleaning process, assemble the vehicle's system. In extreme cases, repeat the cleaning procedure if necessary.
|
|
|
|
|
000 990 34 92

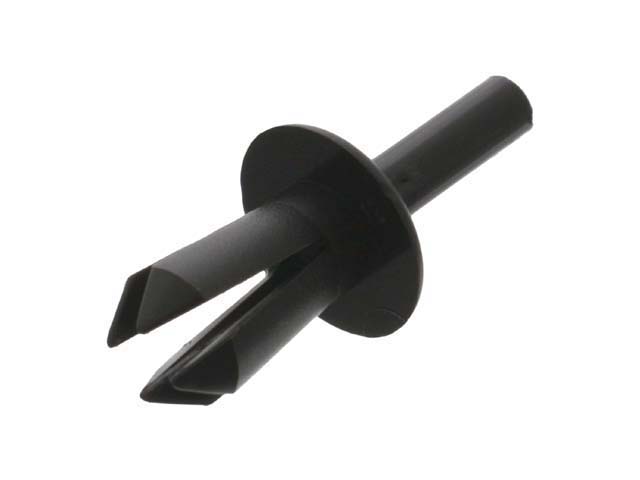

Fuel Cap Tether Clip 2002-2013
5mm Expansion Rivet.
#230 in the diagram. |
|
|
|
|
027 997 86 48
Fuel Filter Seal Ring - Genuine Mercedes 2002-2009
This O ring is used on the fuel filter moisture sensor. One or two are required, depending upon the model year.
Suspension Self-Leveling Valve O-Ring. For cars with Active Body Control (Code 487). |
|
|
|
|
901 476 18 26
Fuel Hose - Fuel Pump Feed Line - Genuine Mercedes 2002-2006
Fuel Pump Feed Line - From fuel tank.
|
|
|
|
|
202 476 65 26
Fuel Hose - Fuel Pump Supply Line - Genuine Mercedes 2002-2006
Fuel Pump Supply Line - From Fuel Tank.
Sold in increments of 1 meter.
|
|
|
|
|
202 476 68 26
Fuel Hose 125MM - Genuine Mercedes 2002-2006
#54 in the diagram.
3 required.
Same part number as: 220 476 29 26
|
|
|
|
|
000 987 17 27
Fuel Hose Plastic Tube 2x2mm - Genuine Mercedes 2002-2006
#52 in the diagram.
2x2MM
|
|
|
|
|
000 835 06 32
Fuel Hose Y Connection - Genuine Mercedes 2002-2006
#56 in the diagram.
Fitting / Connector component.
|
|
|
|
|
901 990 00 54
Fuel Pump Lock Ring - Genuine Mercedes 2002-2006
For top of fuel tank.
Secures pump assembly and seal in place on top of fuel tank. |
|
|
|
|
901 470 01 94
Fuel Pump Tank Module WITH Heater Booster - OEM 2004-2006
This is a complete module, containing the pump, screen and the fuel tank sending unit. The tank module seal at the top of the tank is not included - available and shown below.
Only for models WITH Heater Booster.
THE TOP OF THE UNIT HAS THREE HOSE CONNECTIONS.
See other version for models WITHOUT heater booster (with two hose connections) below.
|
|
|
|
|
901 470 00 94-MB
Fuel Pump Tank Module WITHOUT Heater Booster - Genuine Mercedes 2004-2006
This is a complete module, containing the pump, screen and the fuel tank sending unit. The tank module seal at the top of the tank is not included but is available, and shown below.
Only for models WITHOUT heater booster.
Genuine Mercedes part. |
|
|
|
|
901 470 00 94-DELPHI
Fuel Pump Tank Module WITHOUT Heater Booster - OEM 2004-2006
This is a complete module, containing the pump, screen and the fuel tank sending unit. The tank module seal at the top of the tank is not included but is available, and shown below.
Only for models WITHOUT heater booster.
THE TOP OF THE UNIT HAS TWO HOSE CONNECTIONS.
For the other version pump models WITH heater booster (with three hose connections), See Below. |
|
|
|
|
638 471 04 79
Fuel Pump Tank Seal 2002-2006
Seals tank access port for fuel pump and/or sending unit (under threaded collar).
|
|
|
|
|
901 471 36 98
Fuel Tank Assembly - Genuine Mercedes 2002-2006
Genuine Mercedes Fuel Tank for 2002-2006 SPRINTER 2.7L DIESEL ONLY.
CONTACT US WITH VIN NUMBER TO VERIFY FITMENT.
This is the bare tank assembly - it does not come with the fuel pump or the fuel filler neck.
Replaces: 901 471 30 98, 901 471 34 98, 901 471 16 98 & 901 471 23 98. |
|
|
|
|
901 470 04 05
Fuel Tank Cap 2002-2013
OEM Blau - Black plastic cap with seal included. |
|
|
|
|
901 470 04 05-STRAP
Fuel Tank Cap with Support Strap 2002-2013
Fuel tank cap with seal and support strap. |
|
|
|
|
901 476 00 26
Fuel Tank Filler Coupler - Genuine Mercedes 2002-2006
Connects the filler tube to the fuel tank.
|
|
|
|
|
901 470 13 20
Fuel Tank Filler Neck - Genuine Mercedes 2002-2006
Approximately 500mm long (20 inches). |
|
|
|
|
404 997 09 82
Fuel Tank to Filler Neck Hose18x3MM - Genuine Mercedes 2002-2006
18x3MM - Sold by the meter.
#270 in the diagram. |
|
|
|
|
611 090 03 50-MB
Fuel Transfer Pump - Genuine Mercedes 2002-2003
Genuine Mercedes part.
OM612 engine on 2002-2003 models only.
This is the mechanical transfer pump, which brings fuel from the fuel tank to the injection pump. Mounted on the front of the engine, this is the smaller of the two pumps and is directly above the injection pump.
|
|
|
|
|
611 090 03 50-BOSCH
Fuel Transfer Pump - OEM 2002-2003
OM612 engine on 2002-2003 models only.
This is the mechanical transfer pump, which brings fuel from the fuel tank to the injection pump. Mounted on the front of the engine, this is the smaller of the two pumps and is directly above the injection pump.
The larger pump is the high pressure diesel injection pump, see below.
Both pumps are OEM Bosch manufactured and they are the identical pumps as those sold at a franchise dealership.
|
|
|
|
|
37420
Loctite 2002 & LATER
Label description:
Diesel Purge contains a mixture of agents with powerful cleaning properties. The special additives guarantee c |
|
|
|
|
LM2002
Super Diesel Additive 2002 & LATER
Description from the Product Label:
Cleans thoroughly and prevents deposits from forming in fuel systems and combustion chambers. Keeps the injectors clean and guarantees improved engine combustion leading to a lower specific fuel consumption and the maximum engine performance.
Prevents seizing and the injector needles from gumming up. Increases the lubrication action of diesel fuels low in sulfur (low sulfur diesel in accordance with DIN EN 590) and protects distributor injector pumps from wear. Increases the Cetane number of diesel fuel, leading to a smooth and gentle combustion process. Contains antioxidant and prevents corrosion. Compatible with all modern diesel oxidation catalytic converters.
THIS PRODUCT MAY ONLY BE SHIPPED BY GROUND TRANSPORTATION (FEDEX GROUND OR UPS GROUND). NO MAIL, NOR AIR SHIPPING IS PERMITTED BY FEDERAL LAW. |
|
|
