901 760 01 88
Cargo Door Adjuster 2002-2006
Cargo Door Adjuster. |
|
|
|
|
901 760 13 47-MB
Center Door Slide Mechanism INNER SLIDE - Genuine Mercedes 2002-2006
Middle of sliding door. There are two different versions of this mechanism. This is the standard version for vehicles without the two stage sliding door option. The two stage allows you to lock the door in the half way open position.
Before ordering, compare to OUTER SLIDE (904 760 04 47).
IF YOUR EXISTING PART NUMBER'S LAST TWO DIGITS ARE 13 47, ORDER THIS UNIT. IF IT SHOWS 04 47, CLICK HERE. |
|
|
|
|
901 760 13 47-AFT
Center Door Slide Mechanism INNER SLIDE 2002-2006
Middle of sliding door. There are two different versions of this mechanism. This is the standard version for vehicles without the two stage sliding door option. The two stage allows you to lock the door in the half way open position.
Before ordering, compare to OUTER SLIDE (904 760 04 47).
IF YOUR EXISTING PART NUMBER'S LAST TWO DIGITS ARE 13 47, ORDER THIS UNIT. IF IT SHOWS 04 47, CLICK HERE.
For the Genuine Mercedes Benz part, CLICK HERE. |
|
|
|
|
904 760 04 47-MB
Center Door Slide Mechanism OUTER SLIDE - Genuine Mercedes 2002-2006
Middle of Right Side Sliding Door - Located on outer portion of door.
This unit is ONLY used with those vehicles having the two stage sliding door. This option allows the sliding door to be opened and locked at the halfway position and the full open position.
Compare to INNER SLIDE shown below. The two different center slides are NOT interchangeable.
IF YOUR EXISTING PART NUMBER'S LAST TWO DIGITS ARE 04 47, ORDER THIS UNIT. IF IT SHOWS 13 47, CLICK HERE. |
|
|
|
|
904 760 04 47-AFT
Center Door Slide Mechanism OUTER SLIDE 2002-2006 (AFTERMARKET EUROPEAN)
*** Currently Not Available ***
For the Genuine Mercedes Part, CLICK HERE. |
|
|
|
|
901 766 00 68
Cover - Right Rear Interior Cargo Door Release Handle 2002-2006
Cover for the interior of Right Rear cargo door ONLY.
Interior release handle for left rear cargo door below and right door handle assembly are shown below
|
|
|
|
|
690 760 00 29
Door Bumper / Stop 2002-2006
Large black rubber stop mounted to sliding door.
|
|
|
|
|
000 760 13 59-MB
Door Handle - Exterior Front Door & Rear Cargo Door - Genuine Mercedes 2002-2006
Fits Left or Right front doors and Rear cargo door. Lock cylinder and keys are NOT included. Easy to move lock cylinder from old handle and insert into the new one. |
|
|
|
|
000 760 13 59-AFT
Door Handle - Exterior Front Door & Rear Cargo Door 2002-2006
Fits Left or Right Front doors and Rear cargo door.
Lock cylinder and keys are NOT included. Easy to move lock cylinder from old handle and insert into the new one.
|
|
|
|
|
901 760 04 59-AFT
Door Handle - Exterior Sliding Door 2002-2006
Fits sliding Cargo Door only - Lock cylinder and key is not included. Easy to move your existing cylinder over to the new handle.
|
|
|
|
|
901 760 14 61-MB
Door Handle - Interior Sliding Door 2002-2006
Fits the interior of either left side or right side sliding doors.
Casting number on the back may read 901 760 13 61. |
|
|
|
|
901 760 04 59-MB
Door Handle Exterior Sliding Door - Genuine Mercedes 2002-2006
Fits sliding Cargo Door only - Lock cylinder and key is not included. Easy to move your existing cylinder over to the new handle. |
|
|
|
|
001 800 24 75-VDO
Door Lock Actuator - Rear Cargo Door - OEM 2002-2006
Only for Rear Cargo Door.
VDO is the OEM supplier to Mercedes for this part. |
|
|
|
|
001 800 24 75-MB
Door Lock Actuator - Rear Cargo Door 2002-2006 Genuine Mercedes
Only for Rear Cargo Door
Genuine Mercedes part. |
|
|
|
|
001 800 35 75
Door Lock Actuator - Right Front 2002-2006
Only for Right Front (Passenger's side) door.
|
|
|
|
|
001 800 25 75
Door Lock Actuator - Side Sliding Door 2002-2006
Only for sliding door on side of vehicle.
|
|
|
|
|
001 800 34 75
Door Lock Actuator TYPE A - Left Front 2002-2006
Only for Left Front (Driver's) door
Harness has one blue and one yellow two prong plug with one microswitch.
Only for Left Front (Driver's) door and WITHOUT Convenience Closing System. |
|
|
|
|
001 800 39 75
Door Lock Actuator TYPE B - Left Front 2002-2006
Harness has one black and one white 2 prong plug and one 4 pin black plug as well as two microswitches.
Only for Left Front (Driver's) door and WITH Convenience Closing System.
|
|
|
|
|
010 820 34 10
Door Lock Switch - Sliding Door 2002-2006
Small switch for door lock at right side sliding door. |
|
|
|
|
973 720 00 31
Door Striker Pin 2002-2006
Fits Left Front, Right Front and Sliding Doors.
Located on the door pillar. This part is what the latch hook grabs onto to keep the door securely closed.
|
|
|
|
|
901 720 01 98
Front Door Check Seal 2002-2006
Soft rubber seal.
Fits either front door and surrounds the door check.
|
|
|
|
|
901 997 00 52
Front Door Wiring Boot 2002-2006
Soft rubber boot that protects wiring as it passes from the body into the side doors.
Fits either left or right front door.
|
|
|
|
|
000 727 03 46
Left Front Door Cable Retainer (WHITE) 2002-2006
Only for Driver's door.
Connects cable to inside door release handle.
|
|
|
|
|
901 720 10 16
Left Front Door Check 2002-2006
*Part Discontinued by Mercedes and is No Longer Available*
Only for Left Front (Driver's Side) Door.
Left and Right front doors each use a
different unit. The image shown may or may not be exact
so, do not rely on the image for accuracy.
See other door related parts, shown below.
|
|
|
|
|
000 727 00 37
Left Front Door Interior Release Handle 2002-2006
Fits Driver's door only |
|
|
|
|
901 720 10 35-MB
Left Front Door Latch - Genuine Mercedes 2002-2006
Only for Left (Driver's) side door.
Does not include door lock actuator / servo.
|
|
|
|
|
901 760 08 04
Left Front Door Latch Cable 2002-2006
Only for Left front (Driver's side) door.
|
|
|
|
|
901 720 07 37
Left Front Door Lower Hinge 2002-2006
Only for front cab door - Driver's Side lower. |
|
|
|
|
901 720 01 37
Left Front Door Upper Hinge 2002-2006
Only for front cab doors, driver's side upper. |
|
|
|
|
901 743 01 72
Left Rear Interior Cargo Door Release Handle 2002-2006Located on Left Rear cargo door (the fixed door).
See the interior release handle for the right rear door, shown below.
|
|
|
|
|
901 760 00 28
Lower Side Door Slide Mechanism 2002-2006 Driver Side
Bottom of sliding door on LEFT side of vehicle ONLY
This is for Sprinter vans with dual sliding doors. This will fit the LEFT or DRIVER SIDE. |
|
|
|
|
901 760 01 28-AFT
Lower Side Door Slide Mechanism Passenger Side - FEBI 2002-2006
Bottom of sliding door.
This will fit the RIGHT or PASSENGER side. |
|
|
|
|
901 760 01 28-MB
Lower Side Door Slide Mechanism Passenger Side - Genuine Mercedes 2002-2006
Bottom of sliding door.
This will fit the RIGHT or PASSENGER side. |
|
|
|
|
901 740 01 35-MB
Rear Cargo Door Catch 2002-2006
Only for Rear cargo Left side (Driver's) door.
|
|
|
|
|
901 760 01 00
Rear Cargo Door Check - LOCKING VERSION 2002-2006
There are two different versions of this rear cargo door check. They are interchangeable with each other.
This unit has a die cast metal stand-off riveted to the base where it mounts to the car body. The die cast metal block, with a locking tab is NOT sold as a separate item and only comes with this unit.
See the other STANDARD version of this below.
Only for the two rear cargo doors. Fits either side and sold individually. This part mounts to both of the rear doors.
The bracket (mounts to the body) that interfaces with this part is shown below.
|
|
|
|
|
901 760 00 00
Rear Cargo Door Check - STANDARD VERSION 2002-2006
There are two different versions of this rear cargo door check. They are interchangeable with each other.
The die cast metal block, with a locking tab is used on the other LOCKING version, is NOT sold as a separate item and only comes riveted to the unit. This is the standard unit, WITHOUT the locking block.
See the other LOCKING version of this below.
Only for the two rear cargo doors. Fits either side and sold individually. This part mounts to both of the rear doors.
The bracket (mounts to the body) that interfaces with this part is shown below.
|
|
|
|
|
901 760 02 28
Rear Cargo Door Check Bracket 2002-2006
Only for the two rear cargo doors. Fits either side, Left or Right.
This part mounts to rear of the body on each side.
The door check (mounts to the door) that interfaces with this part is shown below.
|
|
|
|
|
901 820 04 54
Rear Cargo Door Contact Plate 2002-2006
Interfaces with door contact switch on rear cargo door, shown below.
|
|
|
|
|
901 740 08 37-AFT
Rear Cargo Door Hinge - Medium & Long Chassis 2002-2006
270 degrees of travel, in order to fold back against the sides of the body. These are used only on the medium and long version chassis types.
Also, see the 180 degree hinge below, which is only used only on the short chassis models.
*Free USA Shipping* |
|
|
|
|
901 740 07 37
Rear Cargo Door Hinge - Short Chassis Only 2002-2006
180 degrees of travel
These hinges are only used on the short chassis models, where the rear cargo doors do not fold back against the body of the van.
See other 270 degree hinge below for medium and long length chassis models
|
|
|
|
|
901 740 08 37-MB
Rear Cargo Door Hinge Medium & Long Chassis - Genuine Mercedes 2002-2006
These are Genuine Mercedes Hinges.
270 degrees of travel, in order to fold back against the sides of the body. These are used only on the medium and long version chassis types.
*Free USA Shipping* |
|
|
|
|
003 990 77 51
Rear Cargo Door Holder Retaining Nut 2002-2006
Ivory colored plastic retaining nut for rubber housing for the magnetic door plate holder.
Two are in the photo but, sold individually
See metal plate below.
|
|
|
|
|
901 740 03 16
Rear Cargo Door Holding Magnet 2002-2006
Mounts to either rear door of medium and long chassis Sprinters only. The rear doors open 270 degrees on these models.
Not for the short chassis, as the cargo doors only open 180 degrees.
|
|
|
|
|
901 766 00 76
Rear Cargo Door Holding Plate - Genuine Mercedes 2002-2006
Attaches to side panel to hold rear door in open position. Interfaces with rear cargo door magnet shown below. See rubber housing for this plate below.
Picture shows two to show the front and back. |
|
|
|
|
901 740 02 16
Rear Cargo Door Holding Plate Housing 2002-2006
Rubber housing for magnetic door plate holder. See metal plate below.
|
|
|
|
|
901 766 08 19
Rear Cargo Door Holding Plate Retainer 2002-2006
Holds plate inside rubber mounting on side panel rear.
Used in conjunction with other parts shown below.
|
|
|
|
|
901 740 00 35
Rear Cargo Door Latch - TYPE A 2002-2006
Only for rear cargo right side (passenger's) door
There are two different versions of this unit. If your is marked 901 740 00 35, order this one.
If it is marked 901 740 04 35, order the unit shown below.
Includes door lock actuator/servo.
|
|
|
|
|
901 760 05 04
Rear Cargo Door Latch Cable 2002-2006
For Rear Cargo Door. Links handle to latching mechanism.
Overall length from tip to tip is 480 mm (just under 19 inches).
|
|
|
|
|
901 740 04 35
Rear Cargo Door Latch-TYPE B 2002-2006
Only for rear cargo Right Side (passenger's) door
There are two different versions of this unit. If your vehicle is marked 901 740 04 35, order this one.
If it is marked 901 740 00 35, order the unit shown below.
Includes door lock actuator/servo.
|
|
|
|
|
901 766 01 19
Rear Cargo Door LOWER Striker Plate 2002-2006
Striker plate, located at rear door.
This is the long plate located at the bottom of the door.
Retainer pins, if needed, are shown below.
7 are required for the lower plate.
|
|
|
|
|
000 743 00 15
Rear Cargo Door Striker Pin 2002-2006
Fits Left Rear Cargo door ONLY.
Located on the left rear cargo door latch. This part is what the latch hook grabs onto to keep the door securely closed.
A groove tends to wear in this pin on many delivery vehicles and any vehicle that opens and closes the rear cargo door a lot.
This groove contributes to rear door rattling noises.
|
|
|
|
|
000 727 04 46
Right Front Door Cable Retainer (YELLOW) 2002-2006
Only for Passenger's door.
Connects cable to inside door release handle.
|
|
|
|
|
901 720 11 16
Right Front Door Check 2002-2006
Only for Right Front (Passenger's side) door.
Left and Right front doors each use a different unit. The image shown may or may not be exact so, do not rely on the image for accuracy.
See other door related parts, shown below.
|
|
|
|
|
000 727 01 37
Right Front Door Interior Release Handle 2002-2006
Fits Passenger side door only |
|
|
|
|
901 720 15 35-MB
Right Front Door Latch 2002-2006
Only for Right front (Passenger's) side door
Complete with door lock actuator/servo
|
|
|
|
|
901 720 11 35-MB
Right Front Door Latch 2002-2006
Only for front passenger door, without door lock actuator.
Genuine Mercedes part.
|
|
|
|
|
901 760 09 04
Right Front Door Latch Cable 2002-2006
Only for Right Front (Passenger's side) Door.
|
|
|
|
|
901 720 08 37
Right Front Door Lower Hinge 2002-2006Only for front cab door, passenger's side lower.
|
|
|
|
|
901 720 02 37-MB
Right Front Door Upper Hinge 2002-2006
Only for front cab door, passenger's side upper
|
|
|
|
|
901 760 16 61
Right Rear Interior Cargo Door Release Handle 2002-2006
Fits interior of Right Rear Cargo door ONLY.
Cover for this assembly is shown below.
See interior release handle for Left Rear cargo door below.
|
|
|
|
|
N 000000 002575
Screw for Door Slide Mechanism - Genuine Mercedes 2002-2006
Screw used to install sliding door mechanisms.
Top of sliding door and Bottom of sliding door.

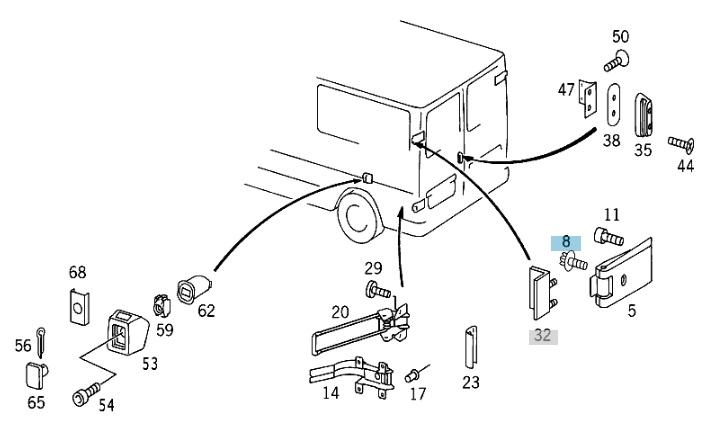

#56 and #62 on the diagram. |
|
|
|
|
901 820 01 54
Sliding Door Contact Plate 2002-2006
Interfaces with door contact switch on sliding door, shown below.
This part was previously produced in
two versions, two electrical posts and three electrical posts, depending
upon how your van was equipped.
The two post version has been discontinued by Mercedes and superseded by the three post version. You simply leave the center contact terminals blank.
|
|
|
|
|
901 730 12 35-MB
Sliding Door Latch - LEFT SIDE FRONT 2002-2006
This latch is located at the FRONT EDGE of the LEFT SIDE or DRIVER'S SIDE sliding door.
Most US models do not have a left side sliding door and these are only for those vehicles so equipped.
This latching mechanism is internal and is visible on the edge of the door.
The inside and outside handles are at this end.
|
|
|
|
|
901 730 13 35-MB
Sliding Door Latch - RIGHT SIDE, FRONT 2002-2006
*Discontinued by Mercedes - Part No Longer Available After Stock is Depleted*
This is a Genuine Mercedes part.
This is the most common mechanism but there are different versions depending upon the vehicle package. You can verify by finding the part number stamped on the unit.
This latch is located at the FRONT EDGE of the right side sliding door.
This latching mechanism is internal and is not visible from the outside of the door. (The inside and outside handles are at this end).
|
|
|
|
|
901 730 11 35-MB
Sliding Door Latch - RIGHT Side, REAR 2002-2006
This latch is located at the REAR EDGE of the Right side sliding door and is externally visible.
This is a Genuine Mercedes part.
An aftermarket equivalent is also listed below.
|
|
|
|
|
901 760 01 04
Sliding Door Latch Cable 2002-2006
For Right side sliding door. Links handle to latching mechanism.
Overall length from tip to tip is 1 meter.
|
|
|
|
|
901 766 01 62
Sliding Door Latch Plate 2002-2006
Mounts to leading edge of sliding door.
Interfaces with part on door jamb, shown below.
|
|
|
|
|
901 730 22 35
Sliding Door Latch with Code CFB - RIGHT SIDE, FRONT 2002-2006
This is for vehicle with Code CFB (With First Rear Bench 3 Passenger Seat) You can verify by finding the part number stamped on the unit.
This latch is located at the FRONT EDGE of the right side sliding door. This latching mechanism is internal and is not visible from the outside of the door. (The inside and outside handles are at this end)
This is a Genuine Mercedes part and comes with the electronic actuator.
|
|
|
|
|
901 730 13 35-AFT
Sliding Door Latch-RIGHT SIDE, FRONT 2002-2006
*** DISCONTINUED *** - No Longer in Production (For Informational purposes only)
This latch is located at the FRONT EDGE of the right side sliding door.
This latching mechanism is internal and is not visible from the outside of the door. (The inside and outside handles are at this end)
This is an aftermarket European product.
|
|
|
|
|
901 730 11 35-AFT
Sliding Door Latch-RIGHT SIDE, REAR 2002-2006
***OUT OF STOCK***
This latch is located at the REAR EDGE of the right side (passenger side) sliding door and is externally visible.
This unit is a quality European manufactured aftermarket product.
|
|
|
|
|
901 766 02 61
Sliding Door Socket 2002-2006
Mounts to door jamb at leading edge of sliding door.
Interfaces with plate on sliding door, shown below.
|
|
|
|
|
901 766 01 98
Sliding Door Track Front Seal 2002-2006
|
|
|
|
|
901 760 10 47-AFT
Upper Door Slide Mechanism - Aftermarket 2002-2006
Top of Sliding Door.
We
offer two different versions of this door slide, Genuine Mercedes and a
European aftermarket. See below for the
Genuine Mercedes unit.
|
|
|
|
|
901 760 10 47-MB
Upper Door Slide Mechanism - Genuine Mercedes 2002-2006
Top of Sliding Door.
We offer two different versions of this door slide, Genuine Mercedes and a European aftermarket.
This one is the Genuine Mercedes part. |
|
|
