901 817 74 14
3500SHC Emblem-Front Door 2002-2006 ***NO LONGER AVAILABLE***
NO LONGER AVAILABLE, AS OF MAY 2019
Located on front doors - 3500SHC name plate, self adhesive
|
|
|
|
|
903 401 28 02
Alloy Wheel - 16" x 6.5" 2002-2006 2500 ONLY
Five spoke aluminum alloy wheel, four required, sold individually.
Used for all 2002-2006 2500 models.
16" x 6.5" ET 70mm
Lug bolts and center caps are sold separately.
Five lug bolts and one center cap are required for each wheel.
|
|
|
|
|
001 820 89 75
Antenna Assembly 2002-2006
Telescopic Antenna - Complete assembly with mounting base, mast and wire harness.
|
|
|
|
|
001 820 89 75M
Antenna Mast 2002-2006
Threads onto roof mounted base.
The complete assembly with the base and cable is also available, see below.
|
|
|
|
|
901 987 00 45
Body Plug 2002-2006
Also known as a floor vent cap. Flexible black plastic about 3 inches in diameter.
Has the part# 901 987 00 45.
|
|
|
|
|
601 401 03 25
Center Cap Steel Wheel - Mercedes Logo 2500 2002-2006
Only for steel wheels. It fits both the 15" and 16" steel wheels. Replaces cap with the Dodge ram emblem or the Freightliner center cap.
This silver Mercedes cap is smaller in size and covers only the center portion of the steel wheel nestled between the lug bolts.
Sold in increments of one, four are required.
|
|
|
|
|
901 880 01 14
Front Bumper Cover Bracket 2002-2006
One located on either side of front bumper cover
|
|
|
|
|
901 627 01 02
Front Sill Panel - 2002-2006 Sprinter
*** This part is no longer available *** |
|
|
|
|
111 987 17 40
Fuel Tank Door Bumper 2002-2006Two required for the fuel tank door.
|
|
|
|
|
906 998 00 40
Fuel Tank Door Bumper 2007-2018Two required for Fuel Tank Door.
|
|
|
|
|
901 750 00 03
Fuel Tank Door/Flap 2002-2006This part is furnished only in black primer and must be painted to match your exterior color.
Includes both the hinge and the hinge spring, both of which are not available as separate items.
|
|
|
|
|
901 817 50 14
Grille Emblem - 316 CDI 2002-2006***NO LONGER AVAILABLE***DISCONTINUED BY MERCEDES IN MAY 2016
Only for Mercedes Grille conversion, see below
For 2500 model.....316CDI=2500
SEE 416CDI EMBLEM BELOW, WHICH IS STILL AVAILABLE, FOR THE PRESENT TIME.
|
|
|
|
|
901 817 54 14
Grille Emblem- 416 CDI 2002-2006Only for Mercedes Grille conversion, see below
For 3500 model......... 416CDI=3500
The 316CDI emblem below for 2500 models, is no longer available
|
|
|
|
|
901 637 02 40
Headlight Trim Panel - DRIVER LEFT SIDE 2002-2006
DRIVER SIDE metal trim piece underneath headlight.
This metal molding is furnished in black primer and is intended to be painted to match the body color of your van.
Fits DODGE models only.
Freightliner models use a different trim, which is L-shaped. |
|
|
|
|
901 637 03 40
Headlight Trim Panel - PASSENGER RIGHT SIDE 2002-2006
PASSENGER SIDE metal trim piece underneath headlight.
This metal molding is furnished in black primer and is intended to be painted to match the body color of your van.
Fits DODGE models only.
Freightliner models use a different trim, which is L-shaped.
|
|
|
|
|
901 889 00 90
Headlight Trim Panel Spacer / Clip - 2002-2006
Spacer / Clip for the metal trim piece underneath headlight.
#30 in the illustration. |
|
|
|
|
201 987 04 40
Hood Bumper / Stop 2002-2006Rubber stop with large external threads that can be adjusted to steady the hood when in the closed position.
|
|
|
|
|
906 817 04 16
Hood Emblem - SPRINTER & METRIS 2002-2018
Hood emblem on all vans from 2002 and later.
These are self-adhesive units.
Can be used to replace front Ram or Freightliner emblem on those models.
|
|
|
|
|
901 831 00 96
Hood Insulation Pad - SPRINTER 2002-2006
*Product Discontinued by Mercedes - No Longer Available After Stock is Depleted*
Attaches to the underside of the hood.
Requires 11 mounting plugs, see below.
|
|
|
|
|
123 990 02 92
Hood Insulation Pad Mounting Plug - SPRINTER 2002-2006
12 Black Nylon - Push Type Retainer Plugs are required to mount pad to underside of the hood (20mm head diameter - 9mm stem length - Fits 8 mm hole)
These are sold individually so, please order the appropriate quantity that you need.
See insulation pad below.
|
|
|
|
|
901 750 03 59
Hood Release Cable 2002-2006
Includes handle, found under dash on left
|
|
|
|
|
901 752 06 28
Hood Support Kit 2002-2006This Kit includes the hood support, the spring and end retainer clip.
|
|
|
|
|
667 400 03 25
Hub Cap 3500-Mercedes 2002-2006Only for the 3500 model
Front axle ONLY
|
|
|
|
|
002 997 50 86
Interior Body Panel Retainer / Plug 2002-2006
Found inside cargo vans, securing the interior panels to the walls and rear doors.
Color is pale grey.
|
|
|
|
|
901 882 10 05
Left Rear Splash Guard / Mud Flap 2500 16" WHEELS 2002-2006
*Part Discontinued - No Longer Available After Stock is Depleted*
Shown at left side of photo
Fits 2500 models and only those with 16" wheels
Not for any model with 15 inch wheels, as they are too long
|
|
|
|
|
901 882 09 05
Right Front Splash Guard / Mud Flap 2500 16" WHEELS 2002-2006
Only 3 Remaining
*Part Discontinued - No Longer Available After Stock is Depleted*
Right or Passenger's Side
Item is at the right side of photo
Fits all 2500 models ONLY WITH 16" WHEELS
Not for any model with 15 inch wheels as they are too long |
|
|
|
|
901 882 11 05
Right Rear Splash Guard / Mud Flap 2500 16" WHEELS 2002-2006
Fits 2500 models only with 16 inch wheels
Shown at right side of photo.
Not for models with 15 inch wheels as they are too long.
|
|
|
|
|
210 628 00 98
Seal Engine Compartment 2002-2006
Engine Compartment Weather Stripping.
Central covering 1715 mm. Engine hood. Right front partition panel.
Replaces part number: 124 628 52 98
#23 in the illustration. |
|
|
|
|
906 817 23 14
Sprinter Emblem-Rear Door 2002-2018
Located on rear door
Sprinter name plate, self adhesive
|
|
|
|
|
901 830 07 18

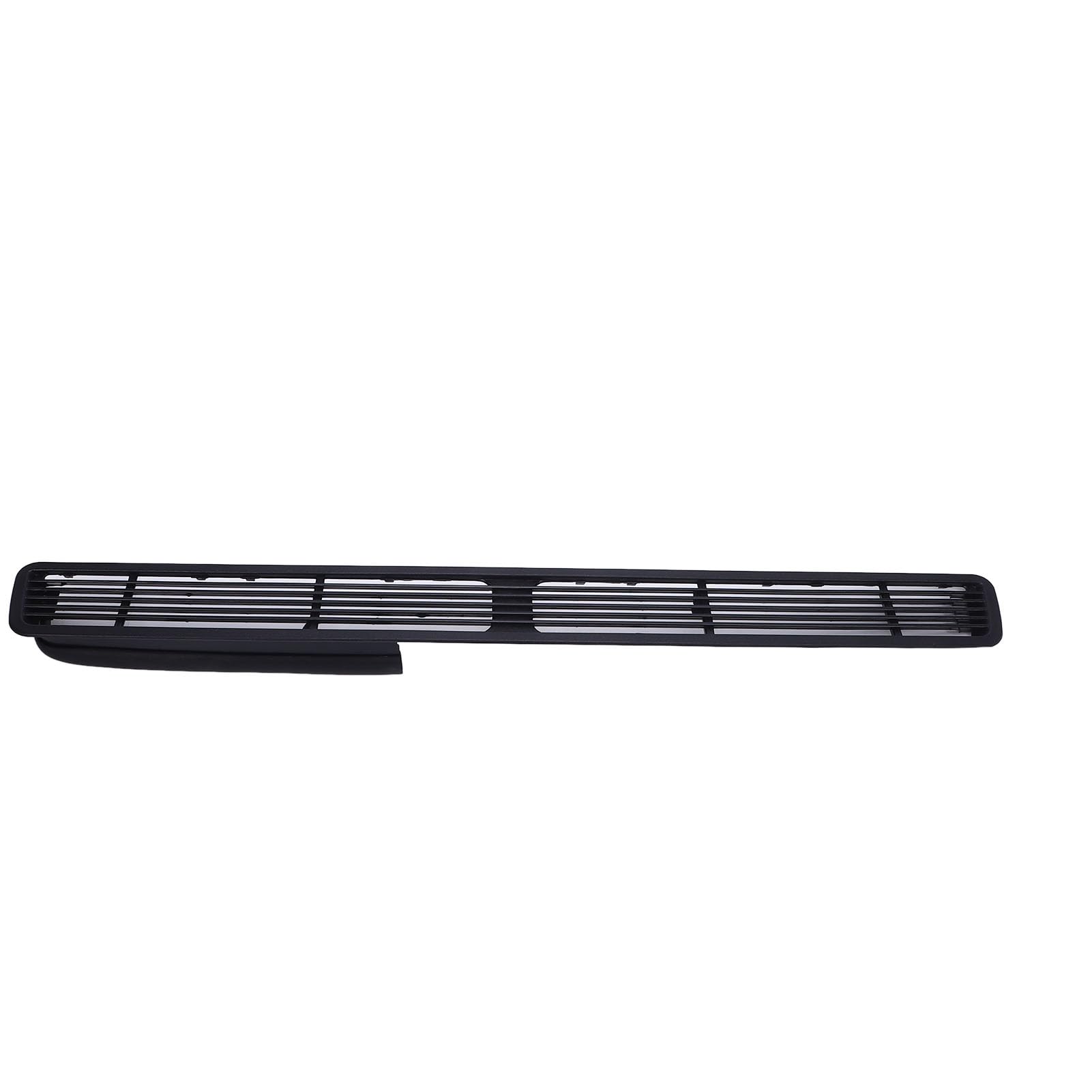

Sprinter Hood Vent Grille 2002-2006
Mercedes louvered vent for hood / cowl area.
|
|
|
|
|
903 401 17 02
Steel Wheel (PRIMERED) -16" x 6" 2002-2006 2500 ONLY
Steel wheel, four are required, sold individually. These are PRIMERED in black and ready to be painted.
Used for all 2002-2006 2500 models ONLY
16" x 6.0"
Lug bolts and center caps are sold separately.
Five lug bolts and one center cap are required for each wheel.
|
|
|
|
|
903 401 18 02
Steel Wheel (SILVER) -16" x 6" 2002-2006 2500 ONLY
Steel wheel, four required, sold individually. These are painted SILVER.
Used for all 2002-2006 2500 models
16" x 6.0"
Lug bolts and center caps are sold separately.
Five lug bolts and one center cap are required for each wheel.
|
|
|
|
|
901 880 03 85-KIT
T1N Grille Conversion Kit - Mercedes Benz 2002-2006 Sprinter
Consists of Two components: Mercedes Star Grille Screen and Metal Grille Molding.
All parts included in this kit are Genuine Mercedes Benz parts.
|
|
|
