642 091 01 50
Ball Socket 3.0L V6 Diesel 2007 & LATERBall socket insert for linkage to intake manifold inlet (swirl) actuator.
|
|
|
|
|
906 528 25 82
Charge Air Hose - Turbocharger to Intercooler 3.0L V6 Diesel 2010 & LATER
This hose is located on Driver's side.
Fits both the 2007-2018 NCV3 and the 2019-2022 V6 with the OM642 engine configuration.
|
|
|
|
|
906 528 26 82
Charge Air Hose-Intercooler to Engine3.0L V6 Diesel 2010 & LATER
Located on the Passenger's side of the engine - This is the shorter of the two charge-air hoses. Seal rings are provided with hose.
This hose will fit all NCV3 model years, and early VS30 models. IF you are ordering for a 2019+ carefully check the current intercooler and intercooler hose that you have to order the correct hose. This hose fits the passenger side for 2019+ Models with the 907 501 17 00 Intercooler, which can be found here.
If you still do not know which hose you need, email us your VIN number for verification.
|
|
|
|
|
642 090 59 37
Charge Air Intake Pipe 3.0L V6 2007 & LATERCharge air intake line, upper end of this pipe joins the output side of the turbo resonator.
|
|
|
|
|
642 098 10 39
Charge Air Line Bracket #1-3.0L V6 Diesel 2007 & LATERFlat metal bracket with two holes.
|
|
|
|
|
642 098 04 39
Charge Air Line Bracket #3 3.0L V6 Diesel 2007 & LATERBracket from turbo resonator to the aluminum charge air pipe.
This is the large, U-shaped steel bracket with a single bolt hole.
|
|
|
|
|
642 096 15 45
Charge Air Line Bracket #4 3.0L V6 Diesel 2007 & LATERBracket at aluminum charge air pipe.
There are numerous brackets on the 3.0L V6 engine and they possibly may have changed after 2010.
It is suggested you get the part number off your existing bracket or carefully compare to the picture before ordering. The part number for this is 642 096 15 45 |
|
|
|
|
642 016 03 38
Charge Air Line Bracket #5 3.0L V6 Diesel 2007 & LATERThere are numerous brackets and possibly changed after 2010.
It's suggested you get a part# off the old bracket or carefully compare to the picture before ordering.
The part # for this is 642 016 03 38 |
|
|
|
|
000 997 63 20
Cylinder Head Plug-40 MM 2007 & LATER3.0L V6Located on end of cylinder head.
40 MM diameter, or approx 1 and 9/16 inches
|
|
|
|
|
906 490 00 42
DPF Band Clamp 3.0L V6 2010 & LATERInterfaces with the DPF bracket, shown below
|
|
|
|
|
906 492 69 41
DPF Bracket 3.0L V6 2010 & LATER
This is the 3.0L V6 DPF bracket which is subject to cracking.
The old part number has been superseded by this new revised part, which is more robust.
This bracket interfaces with the DPF band clamp, shown below.
|
|
|
|
|
642 140 21 08
EGR Pipe-LONG 3.0L V6 2010 & LATER
Stainless steel EGR pipe
|
|
|
|
|
642 140 09 08
EGR Pipe-SHORT 3.0L V6 2007 & LATER
Exhaust gas recirculation pipe. This is the shorter of the two pipes.
|
|
|
|
|
000 905 43 05
EGR Temperature Sensor #3 3.0L V6 Diesel 2007 & LATERLocated at front of engine near the EGR valve
Note that the hold-down nut has internal threads.
|
|
|
|
|
000 905 27 06
Exhaust Back Pressure Sensor 3.0L V6 2014 & LATERSee earlier version of this sensor below
|
|
|
|
|
906 995 02 02
Exhaust Clamp-70MM 3.0L V6 2010 & LATER
This clamp is for a 70MM OD tube
Located at output side of catalytic converter to tailpipe
|
|
|
|
|
651 142 00 01 07
Exhaust Manifold 4 Cyl Diesel 2014 & LATEROnly for the 4 cylinder OM 651 Turbodiesel engine
|
|
|
|
|
642 142 00 80
Exhaust Manifold Gasket-3.0 V6 Diesel 2007 & LATERExhaust manifold to cylinder head
Fits either side, left or right
Two required
|
|
|
|
|
274 142 01 80
Exhaust Manifold Gasket-Sprinter III 2019+ & METRIS 2016+
1 required per engine
Only for 4 CYL gasoline engines
|
|
|
|
|
642 142 31 80
Exhaust Manifold to Turbocharger Manifold Gasket-LEFT 2007 & LATER 3.0L V6 DIESELExhaust manifold to Turbocharger gasket. Fits only left side
|
|
|
|
|
642 142 32 80
Exhaust Manifold to Turbocharger Manifold Gasket-RIGHT 2007 & LATER 3.0L V6 DIESELExhaust manifold to Turbocharger manifold-Right side
|
|
|
|
|
000 492 08 81
Exhaust Seal Ring 2010+ 3.0L V6
|
|
|
|
|
000 905 01 32
Exhaust Temperature Sensor #1 2007 & LATER
Located in catalytic converter
|
|
|
|
|
000 905 52 05
Exhaust Temperature Sensor #2 2007 & LATERLocated at inlet of DPF (Diesel Particulate Filter)
|
|
|
|
|
001 905 30 05
Exhaust Temperature Sensor #2 2010 & LATER
Located at DPF (diesel particulate filter)
Manufactured by VDO, the OEM supplier to Mercedes.
ONLY FOR 3.0L V6 BLUETEC ENGINES 2010 AND LATER and the 4 CYL OM651 diesel engines 2014-2016
|
|
|
|
|
000 905 14 05
Exhaust Temperature Sensor #3 2010 & LATER
ONLY FOR 3.0L V6 BLUETEC ENGINES 2010 AND LATER
Mercedes part # 000 905 14 05
Located before Turbocharger, has 45 degree bend.
Manufactured by VDO, the OEM supplier to Mercedes.
|
|
|
|
|
642 050 05 27
Exhaust Valve-3.0L V6 Diesel 2007 & LATERExhaust valve sold individually, 12 required for OM642 engine
|
|
|
|
|
642 141 01 00
Exhaust Y-Pipe Collector at Turbo 2007 & LATER
Cast iron Y-shaped collector pipe/manifold, from turbocharger to the exhaust manifolds.
Gaskets for this unit are shown below.
|
|
|
|
|
009 542 55 18
Front Oygen Sensor-2019+ Sprinter 2.0L 4 CYL & METRIS 2016+Front Oxygen sensor, located before the catalyst
|
|
|
|
|
906 528 26 82-MB
Genuine Mercedes - Charge Air Hose-Intercooler to Engine3.0L V6 Diesel 2010 & LATER
Located on the Passenger's side of the engine - This is the shorter of the two charge-air hoses. Seal rings are provided with hose.
This hose will fit all NCV3 model years, and early VS30 models. IF you are ordering for a 2019+ carefully check the current intercooler and intercooler hose that you have to order the correct hose. This hose fits the passenger side for 2019+ Models with the 907 501 17 00 Inte |
|
|
|
|
642 142 05 80
Intake Gasket 3.0L V6 2007 & LATERLocated on end of left intake manifold to forward extension of manifold.
|
|
|
|
|
642 144 00 35
Intake Manifold Actuator Linkage Repair Kit 3.0L V6 2007 & LATER
Located on the right side intake manifold and is connected to the inlet or swirl valve actuator.
Consists of two linkage components - one metal and one polymer.
|
|
|
|
|
642 141 05 80
Intake Manifold Gasket 3.0L V6 2007 & LATER
Two are required, one for each cylinder head to manifold, sold individually, left and right are the same.
Order two, if doing both intake manifolds.
|
|
|
|
|
270 096 01 80
Intake Manifold Gasket-Sprinter 2019+ 2.0L & METRIS 2016+
A total of 4 per engine are required, sold individually.
These fit both the Metris and Sprinter 4 CYL gasoline engines
|
|
|
|
|
642 150 04 94
Intake Manifold Inlet Actuator 3.0L V6 2007 & LATER+AKA: Idle Air Speed Motor / Servo or Swirl Valve Actuator / Motor
This part is made by Pierburg and is the exact same part that is sold at a Dodge or Mercedes Benz dealer.
Same part, same warranty, same OEM German manufacturer but, in their box and not a Mercedes box.
Located on the Right Side of intake manifold.
When installing this actuator, you must insure that the linkage that attaches to it is moving freely. Stuck linkage will cause the new actuator to quickly burn out.
|
|
|
|
|
013 997 00 45
Intake Manifold O Ring 3.0L V6 2007 & LATERLocated at right side of intake manifold
|
|
|
|
|
642 098 00 37
Intake Pipe Socket 2007 & LATER 3.0L V6 DIESELFurnished with both o-rings, which are not available as a separate item.
|
|
|
|
|
642 053 04 01
Intake Valve-3.0L V6 Diesel 2007 & LATERIntake valve, sold individually, 12 required
|
|
|
|
|
642 140 09 09
Left Exhaust Manifold 3.0 V6 Diesel 2007 & LATEROnly for left (driver's) side cylinder bank
OM642 Turbodiesel engine
|
|
|
|
|
006 542 49 18
Oxygen Sensor 3.0 V6 2010 & LATER & 2014-2016 2.1L 4 CYLFits all 3.0 liter Diesel Engines from 2010 and later and the 2014-2016 4 CYL engines (BlueTec)
|
|
|
|
|

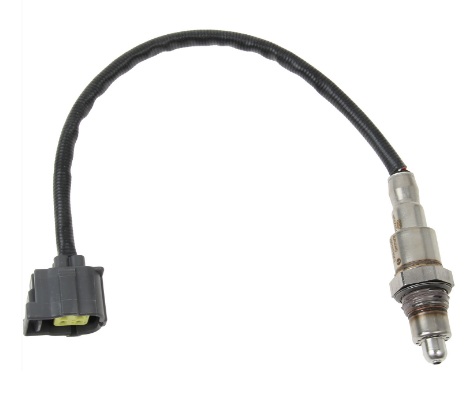

007 542 63 18
Rear Oygen Sensor-2019+ Sprinter 2.0L & METRIS 2016+Rear Oxygen sensor, located after the catalyst
This is the identical Bosch Oxygen sensor sold at a franchise Mercedes dealer for half the price.
|
|
|
|
|
642 140 08 09
Right Exhaust Manifold 3.0 V6 Diesel 2007 & LATEROnly for right (passenger's) side cylinder bank
OM 642 Turbodiesel engine
|
|
|
|
|
642 052 18 01
Right Intake Camshaft Adjuster Sprocket-3.0L V6 Diesel 2007-2014
For double roller chain ONLY, 1 required
Supersedes old sprockets 611 052 05 01 and 646 050 01 49
Only for OM 642 3.0L V6 turbodiesel engine
|
|
|
|
|
646 050 02 49
Right Intake Camshaft Sprocket-3.0L V6 Diesel 2007-2014
For double roller chain ONLY, 1 required
Supersedes old sprockets 611 052 05 01 and 646 050 01 49
Only for OM 642 3.0L V6 turbodiesel engine
|
|
|
|
|
642 090 02 70
Throttle Body 3.0L V6 Diesel 2007 & LATER
Complete original unit for all 3.0L V6 diesel engines.
This is the identical brand new Bosch unit as sold at a franchise dealership.
This fits both standard and BlueTec models throughout the entire range of production.
|
|
|
|
|
642 141 01 80
Throttle Body Seal Ring 2007 & LATER 3.0L V6 DieselLocated between throttle body and throttle body flange
|
|
|
|
|
642 098 08 80
Throttle Body to Transverse Charge Air Pipe Gasket 2007 & LATERLocated between Throttle body and cross-over pipe
|
|
|
|
|
000 993 71 76 L
Timing Chain-SINGLE ROW WITH LINK 3.0L V6 Diesel MID 2014 & LATER
SINGLE ROW TIMING CHAIN for later model 3.0L V6 Diesel engines.
This chain has a master link. See continuous chain version below.
|
|
|
|
|
642 140 00 00
Turbo Resonator 3.0L V6 Diesel 2007 & LATER
Only for OM642 3.0L V6 Turbodiesel engine
This is the most current revision of this item, which supersedes four earlier part numbers, all of which have been discontinued by Mercedes. This unit is located between the output side of the turbocharger and the aluminum charge air intake pipe.
The seal and o-ring on each end of this unit (as pictured below) are provided with the new resonator.
|
|
|
|
|
642 016 10 38
Turbo Resonator Bracket 3.0L V6 Diesel 2007 & LATERAluminum bracket that bolts directly to the turbo resonator.
There are numerous brackets and they possibly changed after 2010. It's suggested you get a part# off the old bracket or carefully compare to the picture before ordering.
The part# for this is 642 016 10 38. |
|
|
|
|
