907 420 46 00
Front Parking Brake Cable 170" W/B 2019+
Front brake cable for standard parking brake
Only for 170" chassis models.
WITHOUT folding brake lever.
Manually operated parking brake only.
907 420 49 00
Front Parking Brake Cable-Type A (Folding) 144" W/B 2019+
Front brake cable for folding lever version. There are two types for 2019+ 144" chassis models
This unit is for those models:
WITH folding brake lever.
WITH low driver's seat frame.
Manually operated parking brake only.
See other version below for models with standard height driver's seat frame.
910 427 07 00 9E80
Parking Brake Handle Cover-FRONT SECTION 2007 & LATER
THERE ARE TWO DIFFERENT VERSIONS OF THIS COVER. THEY ARE NOT INTERCHANGEABLE.
This is for the STANDARD parking brake handle.
Located at front part of handle. This cover is NOT for the folding version parking brake handle, which is used with swivel seats.
910 427 09 00 9E80
Parking Brake Handle Cover-REAR SECTION 2007 & LATER
THERE ARE TWO DIFFERENT VERSIONS OF THIS COVER. THEY ARE NOT INTERCHANGEABLE.
This is the STANDARD version of the parking brake handle and is a longer cover than those covers for the swivel seat.
Located at rear of portion of handle. Front section is also shown below. The swivel seat/drop down version cover is also shown below
906 420 03 12
Parking Brake Handle-SWIVEL SEAT/DROP-DOWN VERSION 2007 & LATER
Original Mercedes Benz factory option for drivers seat, so that seat movement does not interfere with parking brake handle when adding a swivel base to the seat.
Both the front and rear handle covers, and the correct front cable, for this option are also shown below. All four components will need to be changed at the same time, in order for this handle to function correctly. Choose the appropriate front cable for your Sprinter's wheelbase length.
Item is referred to as a "folding" handle. It does not actually fold but, drops down lower to allow for the driver's seat to swivel without the handle being in the way.Sprinter Option Code is BE2
906 420 03 20

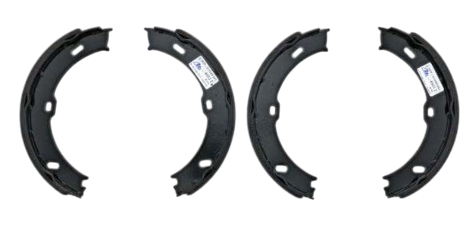

Parking Brake Shoe Set-2500 2007 - 2018 Only for 2500 models
This is a set of all four shoes.....one set per vehicle is required. The shoes are not available individually.
906 420 04 20
Parking Brake Shoe Set-3500 2007 & LATER Only for 3500 - Dual Rear Axle This is a set of all four shoes - One set per vehicle is required.
000 993 13 07
Parking Brake Shoe Spring Kit 2500 2007 & LATER For 2500 models onlyOrder two kits if doing both rear wheels
000 993 53 07
Parking Brake Shoe Spring Kit 3500-Rear 2007 & LATER For 3500 Models O nly
Kit includes five brake shoe springs to secure two parking brake shoes on one rear wheel.
Order Two Kits if doing both rear wheels.
910 427 08 00 9E80
Swivel Seat Version Brake Handle Cover-FRONT SECTION 2007 & LATER
THERE ARE TWO DIFFERENT VERSIONS OF THIS COVER. THEY ARE NOT INTERCHANGEABLE.
This is NOT for the standard parking brake handle.
This cover is ONLY for models with the swivel seat, drop down (folding) version parking brake handle. Located at front part of handle.
See below for the standard version cover.
910 427 11 00 9E80
Swivel Seat Version Brake Handle Cover-REAR SECTION 2007 & LATER
THERE ARE TWO DIFFERENT VERSIONS OF THIS COVER. THEY ARE NOT INTERCHANGEABLE.
This cover is ONLY for the swivel seat/drop down (folding) version of the parking brake handle.
The standard version covers are shown below, and are much longer than this unit.
