906 320 99 89
2007-2018 Front Stabilizer End Link Kit
This kit includes both front stabilizer bar end links and Free USA Shipping included.
DO NOT ORDER THIS KIT IF SHIPPING TO AN ADDRESS OUTSIDE THE US.
This will fit all models 2007 and later, except those with 4WD which began in 2015.
|
|
|
|
|
906 498 02 05-DELPHI
2007-2018 Sprinter Tie Rod Replacement Kit - DELPHI
Complete Kit, includes both Left and Right tie rod assemblies with both boots.
Kit is comprised of OEM boots from Lemfoerder and tie rod ends by Delphi.
*Free USA Shipping*
|
|
|
|
|
906 498 02 05-TRW
2007-2018 Sprinter Tie Rod Replacement Kit - TRW
*Limited Stock*
Complete Kit, includes both Left and Right tie rod assemblies with both boots.
Kit is comprised of all OEM parts from TRW and Lemfoerder.
|
|
|
|
|
N 000000 000948
Clamp 12-18mm - Hose to Oil Container 3.0L V6 - Genuine Mercedes 2007-2018
Genuine Mercedes Part.
Clamp for Power Steering Hose to Reservoir.
Width 9mm / Diameter 12-18mm / Material Thickness 0.8mm
#70 in the diagram. |
|
|
|
|
000 995 35 07
Clamp 12-22mm 3.0L V6 - Genuine Mercedes 2007-2018
Genuine Mercedes Part.
Clamp from Power Steering Hose to Cooling Pipe. And from Cooling pipe to Power Steering Return Hose - Section #2.
#130 in the Diagram.
|
|
|
|
|
027 997 95 00-MB
Genuine Mercedes - Power steering pressure hose O-ring Set
This set contains the o rings at the end of the high pressure power steering line from the power steering pump to the power steering rack. there are two rings, one is the support ring, and the other is a normal O-ring.
FOR NCV3 ONLY |
|
|
|
|
906 545 02 04
Headlight Switch WITH RAIN SENSOR ALONE 2007-2018
There are four different headlight switches for this Sprinter. This switch is only for models WITH rain sensor alone and NO fog lights.
For models with NO fog lights and NO rain sensor, see below.
For models WITH rain sensor AND fog lights, see below.
For models WITH fog lights alone and NO rain sensor, see below.
The switch choice is contingent upon how your van is equipped, with fog lights, or with rain sensor or with both rain sensor and fog lights. See other three versions below. |
|
|
|
|
906 330 49 20
Left Steering Knuckle 2500 Model 2007-2018
For 2500 models ONLY (3500 model steering knuckles are shown below)
This is the Left or driver's side.
The front wheel bearings are NOT available as a separate item, and for a good reason. Installation requires very specialized and expensive equipment. They are only available as a complete steering knuckle, with hub & bearing.
*Free USA Shipping*
|
|
|
|
|
906 330 42 20
Left Steering Knuckle 3500 Model 2007-2018
Only for 3500 model
Left or Driver's side
The front wheel bearings are NOT available as a separate item, and for a good reason. Installation requires very specialized and expensive equipment. They are only available as a complete steering knuckle, with hub & bearing.
*** Free USA Shipping *** |
|
|
|
|
906 466 22 24
Power Steering Cooling Line 2007-2018 3.0L V6
Long aluminum loop in return hose section. |
|
|
|
|
Q 1 46 0002-MB
Power Steering Fluid - Genuine Mercedes 2002 & LATER
MB Spec 236.3, as specified for use in the Sprinter
|
|
|
|
|
000 989 88 03-FEBI
Power Steering Fluid 2002 & LATER
MB Spec 236.3, as specified for use in the Sprinter.
|
|
|
|
|
000 460 28 83
Power Steering Fluid Reservoir - Genuine Mercedes 2007 & LATER
For 3.0L V6 diesel engine. |
|
|
|
|
027 997 95 48
Power Steering Line Seal Ring 2007 & LATERLocated on power steering hose fittings.
|
|
|
|
|
005 997 76 40
Power Steering Line Thrust Ring 3.0L V6 - Genuine Mercedes 2007-2022
*Discontinued by Mercedes - Part No Longer Available After Stock is Depleted*
Located on power steering hose fittings.
|
|
|
|
|
906 466 39 81
Power Steering Pressure Hose - 3.0L V6 Diesel 2007-2018
From P/S pump to steering rack, 3.0 V6 diesel engine only.
The seal rings at each end are provided with the new hose.
Manufactured in Germany by Rein, a subsidiary of Conti-Tech. |
|
|
|
|
906 466 23 81
Power Steering Pressure Hose - 3.0L V6 Diesel 4WD 2016+
From P/S pump to steering rack, 3.0L V6 diesel engine 4WD ONLY.
The seal rings at each end are provided with the new hose.
|
|
|
|
|
906 466 32 81
Power Steering Pressure Hose 2.1L 4Cyl 2014-2017
From pump to steering rack.
Only for 4 CYL engine. |
|
|
|
|
003 466 93 01 80
Power Steering Pump - REMAN / EXCHANGE 3.0L V6 Diesel - OEM 2007-2022
Only for 3.0L V6 OM642 Diesel Engines.
This pump is remanufactured and as such, a $100 core deposit will be
added at checkout. This will be refunded upon return of your old rebuildable core pump. All returned cores must be complete, undamaged and fully assembled or they will not be accepted for refund.
Bosch is the OEM Supplier to Mercedes for this part.
|
|
|
|
|
006 466 66 01 80
Power Steering Pump - REMAN/EXCHANGE 2.1L 4Cyl Diesel - OEM 2014-2017
Only for 2.1L 4Cyl OM651 Diesel Engines.
Bosch is the OEM Supplier to Mercedes for this part.
|
|
|
|
|
006 466 66 01 80-MB-KIT
Power Steering Pump KIT - REMAN/EXCHANGE 2.1 4 Cyl. Diesel Engine 2014-2016Only for 2.1L 4 Cylinder OM651 Diesel Engines |
|
|
|
|
003 466 93 01 80-MB-KIT
Power Steering Pump KIT - REMAN/EXCHANGE 3.0 V6 Diesel Engine 2007+
Only for 3.0L V6 OM642 Diesel Engines
This pump is remanufactured and as such, a $100 core deposit will be added at checkout. This will be refunded upon return of your old rebuildable core pump. All returned cores must be complete, undamaged and fully assembled or they will not be accepted for refund.
This is a remanufactured Mercedes Benz pump. It will be furnished in a Bosch box. |
|
|
|
|
906 460 17 00
Power Steering Rack 2007-2018
Fits both 2500 & 3500 models.
This is a brand new steering rack and NOT a rebuilt unit. The boots and inner tie rods are furnished with the rack. The two tie rod ends are NOT included with the rack, See them listed below.
Manufactured by Atlantic Automotive Enterprises, a division of CRP. CRP is a major supplier of OEM parts to Mercedes and most European automotive manufacturers.
|
|
|
|
|
906 466 04 81-AFT
Power Steering Return Hose - Section #1 3.0L V6 - Aftermarket 2007-2018
One of two return hose sections - 3.0 V6 diesel engine only
See section 2 Below.
|
|
|
|
|
906 466 04 81-MB
Power Steering Return Hose - Section #1 3.0L V6 - Genuine Mercedes 2007-2018
Genuine Mercedes Part - Power Steering Hose from Reservoir to Cooling Pipe.
One of two return hose sections - 3.0 V6 diesel engine only
See section 2 Below.
|
|
|
|
|
906 466 09 24-MB
Power Steering Return Hose - Section #2 3.0L V6 - Genuine Mercedes 2007-2018
One of two return hose sections for 3.0L V6 diesel engine only.
See section 1 below....
Genuine Mercedes part.
|
|
|
|
|
906 466 09 24-REIN
Power Steering Return Hose - Section #2 3.0L V6 2007-2018
One of two return hose sections for 3.0L V6 diesel engine only.
See section 1 below....
Manufactured in Germany by Rein, a subsidiary of Conti-Tech.
|
|
|
|
|
906 466 43 81
Power Steering Return Hose 2.1L 4Cyl 2014-2017
Runs from pipe to reservoir.
|
|
|
|
|
907 460 02 04
Power Steering Return Hose-Section #2 4WD 3.0L V6 2016+
One of two return hose sections
4WD ONLY - 3.0 V6 diesel engine only.
|
|
|
|
|
002 997 96 52-MB
Power Steering Suction Hose 3.0L V6 - Genuine Mercedes 2007-2018
P/S reservoir to pump - For all 3.0L V6 models.
|
|
|
|
|
002 997 96 52-AFT
Power Steering Suction Hose 3.0L V6 2007-2018
P/S reservoir to pump - For all 3.0lL V6 models.
|
|
|
|
|
906 330 50 20
Right Steering Knuckle 2500 Model 2007-2018
For 2500 models ONLY (3500 model steering knuckles are shown below)
This is the Right or Passenger's side.
The front wheel bearings are NOT
available as a separate item, and for a good reason. Installation
requires very specialized and expensive equipment. They are only
available as a complete steering knuckle, with hub & bearing.
*Free USA Shipping* |
|
|
|
|
906 330 43 20
Right Steering Knuckle 3500 Model 2007-2018
Only for 3500 model
Right or Passenger's side
The front wheel bearings are NOT
available as a separate item, and for a good reason. Installation
requires very specialized and expensive equipment. They are only
available as a complete steering knuckle, with hub & bearing.
*** Free USA Shipping *** |
|
|
|
|
906 464 03 18
Steering Angle Sensor 2007-2018Steering Angle Sensor AKA the clockspring
|
|
|
|
|
906 330 45 20
Steering Knuckle LEFT - 2500 Model AWD 4x4 - Genuine Mercedes 2015-2018
For AWD 4X4 2500 models ONLY
This is the Left or Driver's side.
The front wheel bearings are NOT available as a separate item, and for a good reason. Installation requires very specialized and expensive equipment. They are only available as a complete steering knuckle, with hub & bearing. |
|
|
|
|
906 330 46 20
Steering Knuckle RIGHT - 2500 Model AWD 4x4 - Genuine Mercedes 2015-2018
For AWD 4X4 2500 models ONLY.
This is the Right or Passenger's side.
The front wheel bearings are NOT available as a separate item, and for a good reason. Installation requires very specialized and expensive equipment. They are only available as a complete steering knuckle, with hub & bearing. |
|
|
|
|
906 460 19 00
Steering Rack Boot 2007-2018
One required for each side of the steering rack.
Order Two, if doing both sides.
|
|
|
|
|
906 464 02 01 9E37
Steering Wheel 2007-2018
Does not include airbag.
|
|
|
|
|
906 498 00 00-DELPHI
Tie Rod Assembly - DELPHI 2007-2018
Fits either Left or Right side.
This is the complete assembly, consisting of the inner tie rod end and the outer tie rod end.
A complete kit, consisting of both tie rods and both boot kits with Free USA Shipping included is also available......see below.
|
|
|
|
|
906 498 00 00-TRW
Tie Rod Assembly - OEM 2007-2018
*Limited Stock *
Fits either Left or Right side.
This is the complete assembly, consisting of the OEM tie rod and the outer tie rod end. All parts manufactured in Europe.
A complete kit, consisting of both tie rods and both boot kits with Free USA Shipping included is also available......see below. |
|
|
|
|
906 460 03 48-DELPHI
Tie Rod End - DELPHI 2007-2018
Fits Left or Right side.
Replacement for outer end only - Two required per vehicle, sold individually.
|
|
|
|
|
906 460 03 48-TRW
Tie Rod End - OEM 2007-2018
TRW is the OEM Supplier to Mercedes for this part.
Fits Left or Right side.
Replacement for outer end only - Two required per vehicle, sold individually.
|
|
|
|
|
906 460 03 48-LEMFORDER
Tie Rod End - OES 2007-2018
Lemforder is the OES Supplier to Mercedes for this part.
Fits Left or Right side.
Replacement for outer end only - Two required per vehicle, sold individually.
|
|
|
|
|

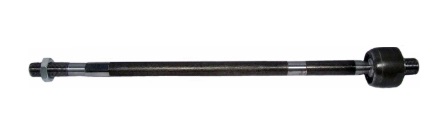

906 460 01 55-DELPHI
Tie Rod without Outer End - Delphi 2007-2018
Fits Left or Right side. Inner joint (horizontal ball joint).
The tie rod end is also available as a separate item, See Below.
Connects the steering rack to the tie rod end.
|
|
|
|
|
906 460 01 55-LEMFORDER
Tie Rod without Outer End - OEM 2007-2018
Fits Left or Right side. Inner joint (horizontal ball joint).
The tie rod end is also available as a separate item, See Below.
Connects the steering rack to the tie rod end.
Lemforder is the OEM Supplier to Mercedes for this part. |
|
|
