Breather Hose 2002-2006 This is a long hose and very small diameter
Breather Hose 2002-2006
Located at oil separator on top of valve cover.
Also available as part of a complete assembly, see below.
EGR Change-Over Valve-2002-2003 5 CYL & 4 Cylinder 2014-2016 Electro-Vacuum valve located in the EGR circuit on early 5 cylinder engines and the later 4 cylinder engines.
EGR Valve 2002-2003 Only for OM 612 engine (2002-2003 model year)
This is the exact same new OEM Wahler EGR valve sold at a Dodge or Freightliner dealer.
Other than the gasket, no parts are available for this valve.
EGR Valve Gasket 2002-2003 These are the OEM metal gaskets, made by Elring
EGR Valve Gasket 2004-2006 Metal teflon coated seal..

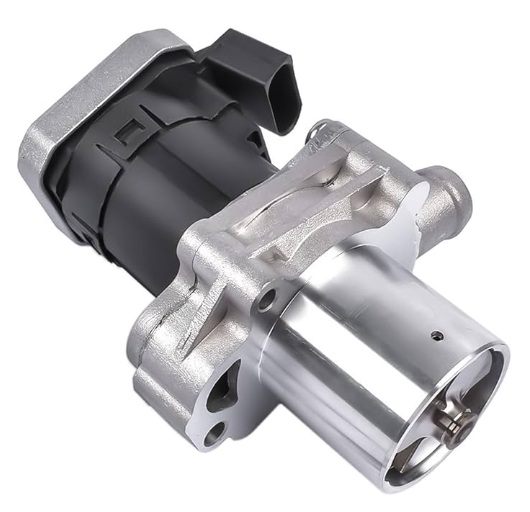

EGR Valve-NEW GENUINE MERCEDES 2004-2006 For OM 647 engine
This is a water cooled valve, and it is only for 2004-2006 engines.
THIS EGR VALVE IS BRAND NEW IN A MERCEDES BOX
Other than the gasket shown below, no internal parts are available for this valve.
EGR Valve-NEW OEM PIERBURG 2004-2006 For OM 647 engine
Water cooled valve, only for 2004-2006 engines.
THIS OEM EGR VALVE IS BRAND NEW AND IS SOLD OUTRIGHT. NO CORE DEPOSIT APPLIES
Other than the gasket, shown below, no internal parts are available for this valve.
Exhaust Clamp Bolt 2002-2006 & 2014-2016 2.1L 4 CYL This bolt is used on 2002-2006 5 CYL engines, as well as 2014+ 2.1L 4 CYL engines
Exhaust Clamp/Sleeve-60MM 2007-2009 3.0L V6
Located at the joint between OUTPUT end of the DPF and the exhaust pipe.
This clamp is for a 60MM OD tube /pipe.
It is a sleeve type joint, with two clamps.
Exhaust Clamp-60MM 2007+
This clamp is for a 60MM OD tube (approx 70MM expanded)
This clamp is used at the INPUT side of the 2007-2009 3.0L V6 DPF
Exhaust Clamp-70MM 3.0L V6 2010+
This clamp is for a 70MM OD tube
Located at output side of catalytic converter to tailpipe
Exhaust/DPF Clamp-65MM 2014-2016 4 CYL
Located at the joint at the OUTPUT end of the DPF, where it joints the pipe.
This clamp is for a 65MM OD tube (approx 76MM expanded)
This clamp is also used on 2014+ 2.1L 4 CYL engines
M8 X 20 MM BOLT-ZINC PLATED TORX HEAD
M8 X 20MM
Used on all SPRINTERS
Oil Separator Gasket/Seal 2004-2006 Located between valve cover and oil separator.
If you are ordering a new oil separator, you will not NEED this, as it is furnished with the new part.
Oil Separator/PCV 2002-2003 Sprinter Located at top of valve cover
Breather hose that fits on valve is shown below.....
Oxygen Sensor 2004-2009 2.7L + 3.0L Diesel & 3.5L Gas Engines Fits all 2.7 & 3.0 liter Diesel Engines thru end of 2009
Also used for left front position on 3.5 liter V6 Gas Engine
NOT for BLUETEC ENGINES, 2010 and later
Pressure Converter Valve 2002-2003 This part appears to be known by many names:
Pressure Regulator Valve, Vacuum Modulator Valve, Pressure Transducer or Change-Over Valve
Helpful link to diagnostics: http://www.mercedes.gen.in/mercedes-sprinter-turbo-limp-home-los-diagnosis-fault-finding/
Black polymer/plastic, with three vacuum connections and a two pin electrical plug.
This is the exact same original OEM part as sold at a Mercedes dealer for less than 1/4 of the retail Dodge price.
Seal Ring-Turbocharger to Exhaust 2004-2006 & 2014-2016 2.1L 4 CYL Located at joint between the turbocharger and the front pipe at the clamp area
This seal ring is used on 2004-2006 5 CYL engines, as well as 2014-2016 2.1L 4 CYL engines
Turbocharger Exhaust Clamp TYPE 2 2004-2006 & 2014-2016 2.1L 4 CYL
Located at the joint between the turbocharger and the exhaust header pipe on 2004-2006 5 CYL engines
and on the INPUT end of the DPF on 2004-2016 4 CYL engines.
This is the tapered design, which uses a thick sealing ring. (see below)
Compare to your original before ordering, as there are two different types for 5 CYL engines.
This clamp is used on 2004-2006 5 CYL engines,
as well as 2014-2016 2.1L 4 CYL (INPUT end of the DPF)
