602 010 16 72
Engine Oil Dipstick 2002-2006
Only for inline 5 cylinder engines, both OM612 and OM647 Diesels. |
|
|
|
|
112 016 00 00
Engine Oil Dipstick Grommet 2002 & LATER
Fits bottom of engine oil dipstick tube of all Sprinters.
Seals the dipstick tube to the engine block
Not for the transmission dipstick.
|
|
|
|
|
019 997 76 45
Engine Oil Dipstick O Ring 2002 & LATER
Fits top of engine oil dipstick of all Sprinters.
Seals the dipstick to dipstick tube.
Not for the transmission dipstick.
|
|
|
|
|
612 018 01 16
Engine Oil Dipstick Tube 2002-2006
THIS PART IS NO LONGER AVAILABLE |
|
|
|
|
111 997 03 30
Engine Oil Pan Drain Plug 2002-2022 SPRINTER / METRIS 2016+
Fits all engine oil pans for 4 cylinder, 5 cylinder and V6 engines.
NOT FOR Sprinter III 2023+ 4 CYL diesel.
|
|
|
|
|
007603-014100-ALU
Engine Oil Pan Drain Plug Seal Ring 2002-2022 ALUMINUM
Aluminum Seal ring for oil pan drain plug.
Also used as a general seal ring with other parts such as sensors, etc.
|
|
|
|
|
007603-014100-COPPER
Engine Oil Pan Drain Plug Seal Ring 2002-2022 COPPER
Copper seal ring for oil pan drain plug.
|
|
|
|
|
117 997 02 30
Freeze Plug Sprinter 2002-2006
Located in the block, two required and sold individually. |
|
|
|
|
LM2039
LIQUIMOLY 5W30 5L - LM2039 - 2002 AND LATER
5 Liter Container - SAE 5W30 Longtime High Tech Full Synthetic Motor Oil.
Made in Germany.
MB
Spec 229.51 & 229.52 Low ash oil specified for all 2007 and later
models but is backward compatible for all 2002-2006 engines (229.3 &
229.5).
SHIPPED BY FEDEX GROUND. |
|
|
|
|
646 188 03 01-MB
Oil Cooler - Genuine Mercedes 2002-2006
Fits all 5 cylinder models from 2002-2006.
Genuine Mercedes part.
See oil cooler seal for this unit, |
|
|
|
|
646 188 03 01-MAHLE
Oil Cooler - OEM 2002-2006
Fits all 5 cylinder models from 2002-2006
This is the identical and original equipment Behr/Mahle unit sold by a franchise Mercedes, Dodge or Freightliner dealership.
See oil cooler seal for this unit, shown below.
|
|
|
|
|

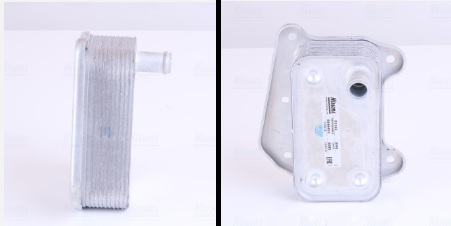

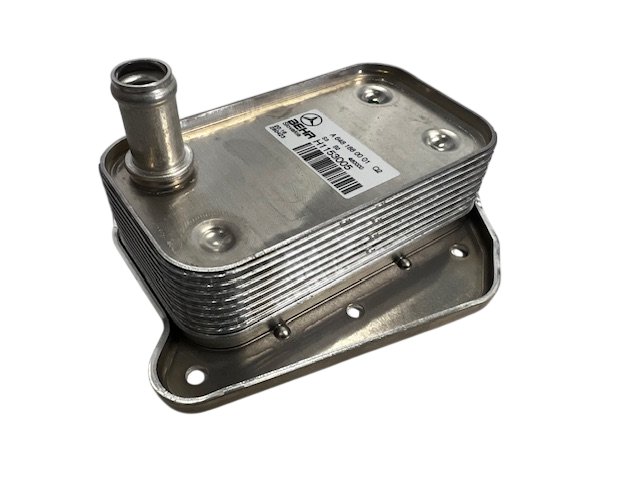

648 188 00 01-MB
Oil Cooler 2002-2006 Heavy Duty - Genuine Mercedes
Fits all 5 cylinder models from 2002-2006.
This is the Heavy Duty version originally designed for the E320 2005-2006 models. The cooler is larger than the stock version thus the oil cooler hose to engine block will need some adjustment.
|
|
|
|
|
611 184 02 80
Oil Cooler Seal 2002-2006
Located between oil cooler and engine block.
Elring is the OEM supplier to Mercedes Benz. This is the exact same part as sold at a franchise dealership.
|
|
|
|
|
000 010 16 85-MB
Oil Fill Cap - Genuine Mercedes SPRINTER 2002 & LATER + METRIS 2016+
Oil fill cap in valve cover or at end on extension tube on later V6 engines.
Genuine Mercedes part. |
|
|
|
|
000 010 16 85-AFT
Oil Fill Cap - SPRINTER 2002 & LATER + METRIS 2016+
Oil fill cap in valve cover or at end on extension tube on later V6 engines
|
|
|
|
|
611 180 00 09-MB
Oil Filter - Genuine Mercedes 2002-2006
Genuine Mercedes part.
Includes (1) Filter Cartridge, (1) Filter Housing Seal & (2) O-Rings.
Fits the I-5 2.7L Diesel Engine.
Seal ring is not included with the filter..... see below.
|
|
|
|
|
611 180 00 09-HENGST
Oil Filter - HENGST 2002-2006
Includes (1) Filter Cartridge, (1) Filter Housing Seal & (2) O-Rings.
Fits the I-5 2.7L Diesel Engine.
Seal ring is not included with the filter..... see below. |
|
|
|
|
611 180 00 09-MANN
Oil Filter - MANN 2002-2006
Includes (1) Filter Cartridge, (1) Filter Housing Seal & (2) O-Rings.
Fits the I-5 2.7L Diesel Engine.
Seal ring is not included with the filter..... see below.
|
|
|
|
|
611 180 00 09-MAHLE
Oil Filter 2002-2006 MAHLE
Includes (1) Filter Cartridge, (1) Filter Housing Seal & (3) O-Rings.
Fits the I-5 2.7L Diesel Engine.
Seal ring is not included with the filter..... see below. |
|
|
|
|
611 010 12 33
Oil Filter Housing & Front Timing Cover 2002-2006
Only for 5 cylinder engines |
|
|
|
|
611 015 01 80
Oil Filter Housing & Front Timing Cover Gasket 2002-2006
Gasket for housing shown below
|
|
|
|
|
611 180 02 10
Oil Filter Housing Cap 2002-2006
Filter slides over spike.
Holds the three o-rings that come with the oil filter kit.
|
|
|
|
|
000 905 03 01
Oil Level Sender 2002-2006
Located at oil pan - Oil ring seal included.
|
|
|
|
|
000 905 04 01
Oil Level Sender 3.0L V6 2007-2022 & 2.1L 4CYL 2014-2016
Located at oil pan, o-ring seal included
|
|
|
|
|
40-76454-00
Oil Level Sensor Seal Ring 2002-2018
Fits on oil level sensor on bottom of oil pan.
|
|
|
|
|
102 014 00 33
Oil Pan End Plug 2002-2006Located at rear end of engine oil pan
|
|
|
|
|
647 014 00 22
Oil Pan Gasket 2002-2006
Fits both OM612 & OM647 2.7L 5 Cylinder Engines. |
|
|
|
|
611 180 01 15
Oil Pressure Relief Valve 2002-2006
|
|
|
|
|
602 180 25 01
Oil Pump 2002-2006
Fits both OM612 & OM647 five cylinder engines.
Includes the O-ring where pump mounts to engine block.
Oil pump drive chain and the chain guide rail are also shown below.
|
|
|
|
|
003 997 74 94
Oil Pump Drive Chain 2002 & LATER
Oil pump drive chain for all 5 cylinder and V6 diesel engines.
Iwis is the OEM supplier for this part. |
|
|
|
|
019 997 80 48
Oil Pump Seal Ring 2002-2006
Fits both OM612 & OM647 five cylinder engines.
Fits between oil pump and block.
|
|
|
|
|
646 010 07 62A
Oil Separator / PCV 2004-2006
Manufactured in Europe by Bapmic.
Gasket is included - Filter element has been engineered for proper flow. Located on top of valve cover.
Only for OM647 engine, model years 2004, 2005 & 2006.
|
|
|
|
|
611 018 00 30
Oil Separator Return Pipe 2002-2006
Oil return pipe from oil separator.
For OM612 engine (2002-2003) and OM647 engine (2004-2006).
|
|
|
|
|
611 180 00 43
Oil Spray Jet 2002-2006
Located in the block and direct a stream of oil to the underside of each piston crown.
Five required, sold individually. |
|
|
|
|
111 180 00 71
Tensioning Rail - Oil Pump Drive Chain 2002-2006
Only for inline 5 cylinder engines. |
|
|
|
|
646 180 03 22
Turbocharger Oil Drain Tube 2002-2006
Steel oil drain tube from the turbocharger center cartridge to the oil pan.
See all related seals and other oil tube components below.
|
|
|
|
|
611 180 06 20
Turbocharger Oil Feed Tube 2002-2006
Steel oil tube feeding the turbocharger center cartridge.
O-ring, hollow bolt and copper seal rings for sealing each end of this tube are shown below.
Oil drain tube and related seal and grommet are shown below.
|
|
|
